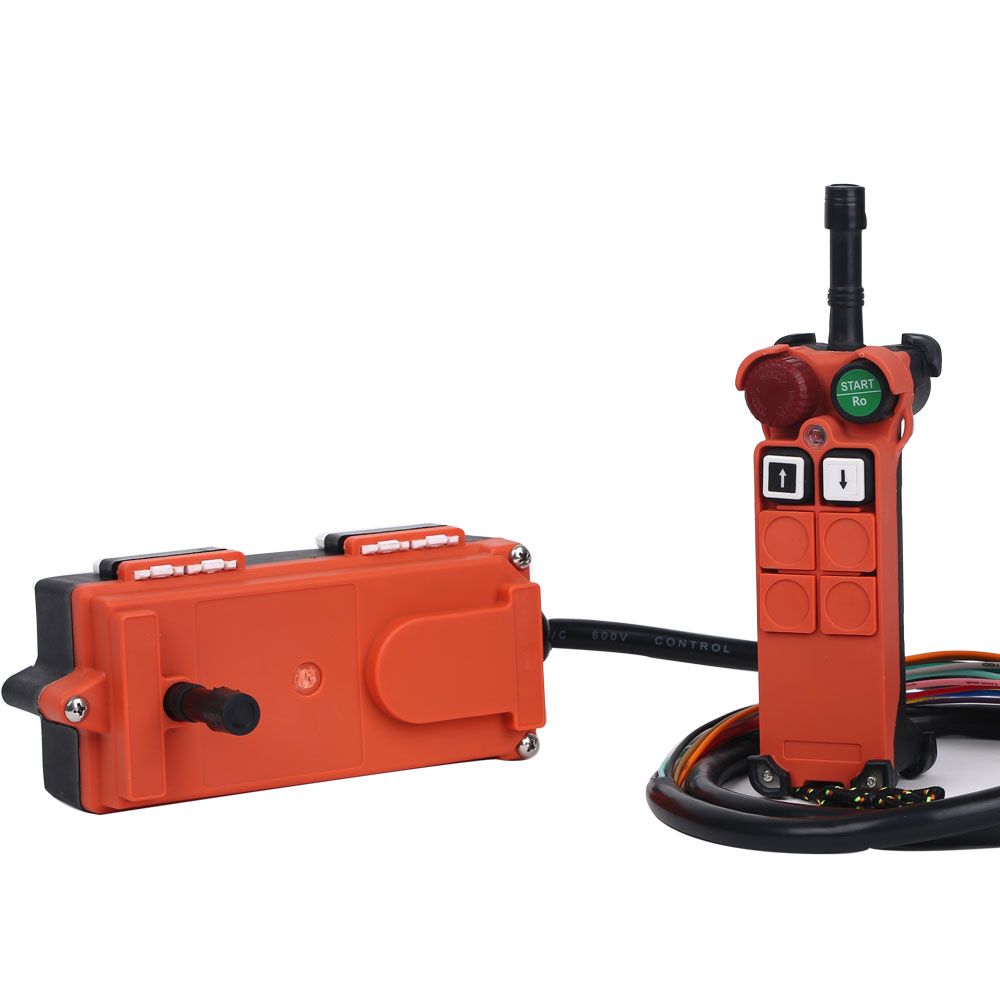

F21-2s AC Motor Radio Remote Controller

Prod Model:	F21-2S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Wireless Crane Remote Control
Control Distance:	up to 100m
Control Motions:	2
Frequency Generation:	Crystal
Structure:	Glass-Fiber
Operation Frequency:	310.0325-331.165 MHz
Certificates:	CE, FCC, ISO9001:2008
Unique Code:	Over 4.3billon Unique ID Codes .
Working Temperature:	-35°c___+80°c
Output Capacity:	Full Sealed Relay Output with 5 Amperes
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	ISO9001
Universal:	Not Universal
Transmission Distance:	50-100m
Battery Type:	AA Battery
Voltage:	Optional

Product Description

F21-2S wireless crane remote control

NOTES: This model have two pushbuttons, you can choice single speed (F21-2S) or double speed (F21-2D)

Company Advantage:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable

1.Technical specifications

1.1 Basic informations:



Control distance	Up to 100m
Control point	2 (single speed)/4 (double speed)
Frequency generation	Crystal
Structure	Glass-Fiber
Operation frequency	310.0325-331.165 MHz
Certificates	CE, FCC, ISO9001:2008
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C___+80°C
Output capacity	Full sealed relay output with 5 amperes


1.2 Transmitter specifications

1. Dimensions: 196*65*53mm
2. Weight: 320g
3. Material: glass-fiber
4. Protection degree: IP65
5. Power supply: DC 3V (2AA Batteries)


1.3 Receiver specifications
1. Power supply: AC380V/36V/220V/110V/48V/24V or AC12V/DC12V (±20%)
2. Dimensions: Size:171*86*85mm
3. Weight: 550g
4. Material: glass-fiber
5. Protection degree: IP65


 2.Standard configuration:
        One transmitter ;
        One receiver;
        One 1m cable connect with receiver
        One operation and maintain manual .

3.Features of wireless crane remote control:
*Two push button and one EMS button + one START button+one STOP button
*control point up to 2
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*Two single speed push button + START +STOP+EMGS+SWITCH
*UP,DOWN push button can be set jump strokes,ordinary, mutual inhibition or not .

4. Application of wireless crane remote control:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, papermaking and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites which can be worked by radio controls.
