| Prod Model: |
F21-E1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Control Distance: |
up to 100 M |
| Speed: |
Single Speed |
| Application: |
Crane, Truck,Construction Industry ,Hoist ,Lifting |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Battery Type: |
AA Battery |
| Voltage: |
High and Low Voltage Are Both Ok |
| Material: |
Glass Fiber Reinforced Nylon-6 |
Product Description

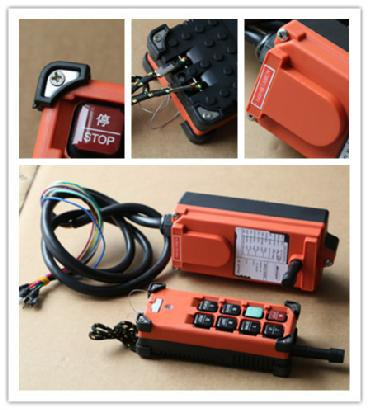

New Arrival Industrial crane F21-C-E1Q wireless remote control switch for electric hoist
Standard Configuration:
Transmitter*1( with strap),
Receiver*1,
Receiver with 1m Cable,
Operation and maintenance manual *1
Technical Specification:
| TX Model | F21-E1-TX-V-(E) |
| TX Size | about 15.6*5.6*4.9cm |
| TX Weight | about 211g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 6 Single speed buttons,1 START button,1 mushroom button |
| Button Marking | arrow tip |
| I.D.Code | 4.3 billion |
| Voltage Warning |
TX Red LED will flash slowly when the volts under 2.2V,and unable to start TX under 1.8V. |
|
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |
| RX Model | F21-E1-RX-V-(E) |
| RX Size | 18.7x8.6x7.9cm |
| RX Weight | about 624g ( without wire cable ) |
| Housing Material | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| connection diagram | English |
| Temperature Rating | -35°C ~ +85°C |
Power Supply
(Voltage) | AC380V,AC36V,AC220V,AC110V,
AC48V,AC24V,AC12V/DC12V,
AC380V/AC220V(50-60Hz) |
| Relays | 6 Relays control functions,
1 relay control EMS and
1 relay reserve |
| Output Relays | 5Amp Omniseal Relays
(AC250V/10A Relays ,10Amp fuse) |
| I.D.Code | 4.3 billion |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| Sensitivity | >=-110DBm |
| Interface | Cable output |
