F21-E1b Crane Hoist Wireless Remote Control

Prod Model:	F21-E1B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Crane Hoist Wireless Remote Control
Control Distance:	up to 100m
Control Motions:	6
Frequency Generation:	Crystal
Structure:	Glass-Fiber
Operation Frequency:	310.0325-331.165 MHz
Certificates:	CE, FCC, ISO9001:2008
Unique Code:	Over 4.3billon Unique ID Codes .
Working Temperature:	-35°c___+80°c
Output Capacity:	Full Sealed Relay Output with 5 Amperes
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Not Universal
Transmission Distance:	50-100m
Battery Type:	AA Battery
Voltage:	Optional
Material:	Glass Fiber-Reinforced Nylon-6

Product Description

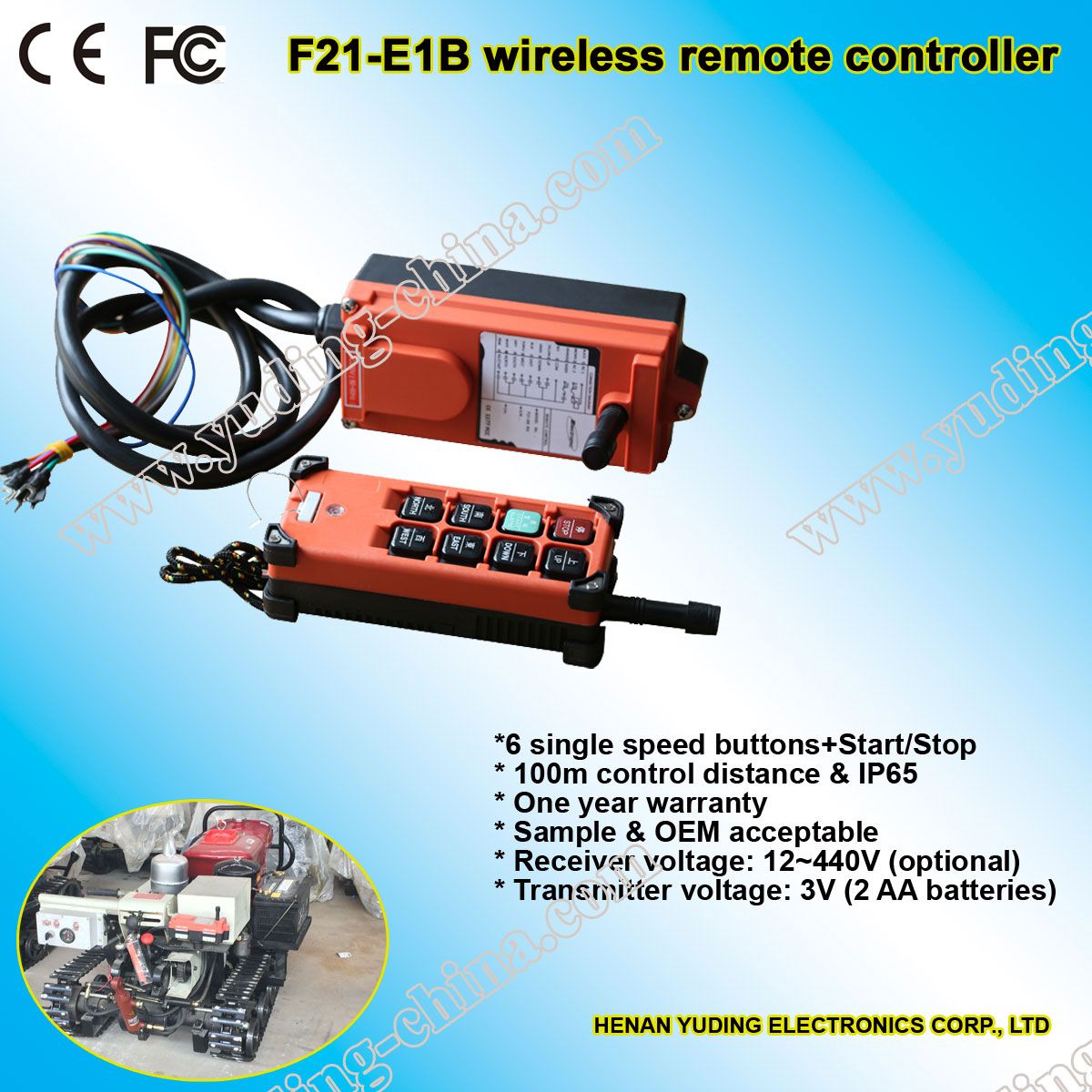

F21-E1B crane hoist wireless remote control


1. Technical specifications

1.1 Basic informations:



Control distance	Up to 100m
Control Motions	6
Frequency generation	Crystal
Structure	Glass-Fiber
Operation frequency	310.0325-331.165 MHz
Certificates	CE, FCC, ISO9001:2008
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C___+80°C
Output capacity	Full sealed relay output with 5 amperes


1.2 Transmitter specifications
1. Dimensions:164*75*46mm
2. Weight: 350g
3. Material: glass-fiber
4. Protection degree: IP65
5. Power supply: DC 3V (2AA Batteries)


1.3 Receiver specifications
1. Power supply: AC380V/36V/220V/110V/48V/24V or  AC12V/DC12V (±20%)
2. Dimensions: Size:185*85*85mm
3. Weight: 550g
4. Material: glass-fiber
5. Protection degree: IP65



2. Standard configuration:
        One transmitter ;
        One receiver;
        One 1m cable connect with receiver
        One operation and maintain manual .

3. Products Advantage:
1. Water-proof, IP 65, can be used inner or outside.
2. Glass fiber and engineering-plastics make the cover strong, avoid damage cause by high falling or gravity roller.
3. Control distance can reach to 100m
4. Wide receiver voltage can meet different requirement.
5. Key safety magnet, another guarantee about the safety.
6. Free transmitter protecting cover available.

4. Products Features:
* 8 push buttons with 7 single-speed buttons and 1 stop buttons
* control points up to 6
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down ,east/west , south/ north push button can be set mutual inhibition or not .
* spare 1 key can be set start ,speed up,jump strokes, ordinary etc.


5. Notes:
The LED on the front of the transmitter indicates the condition of the batteries.  It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low.  If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.

6. Application:

Widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.
