| Prod Model: |
F21-4S |
| Product Name: |
Industrial Wireless Radio Remote Control |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Temperature Range: |
-35ºC-----------+80ºC |
| Receiver Power: |
AC 380V/220V/110V/48V/36V/24V or AC/DC 12V |
| Certificates: |
Ce,FCC,ISO9001:2008 |
| Enclosure Protection Class: |
IP65 |
| RF Power: |
<10dBm |
| Frequency Generation: |
310.0325-331.165MHz(VHF) |
| Application: |
Lifting Equipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Joystick |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
3V |
| Battery Type: |
AA Battery |
| Material: |
Glass Fiber |
Product Description
Product Description

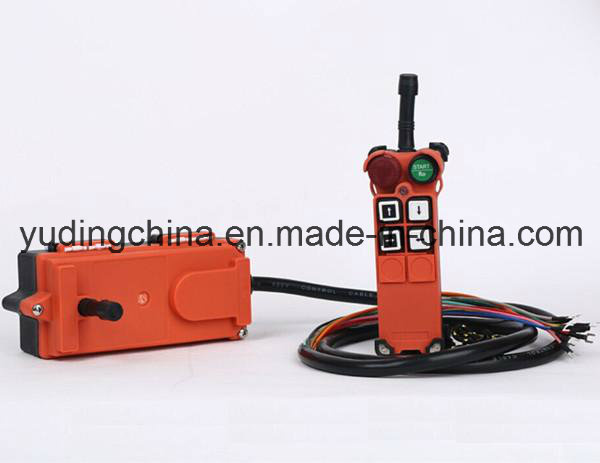

Telecrane remote control (F21-4S)
Introduction of industrial remote control:
1. More than 10 years researching and exporting experience in Wireless Remote Control For Crane industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.
Features:
*4 single speed push buttons +one EMGS button + one SWITCH
* control points up to 4
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down,east/west,south/north push button can be set start ,close,speed up,jump strokes,ordinary etc.
Standard Configuration:
One transmitter ;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual.
Application of crane remote control manufacturers:
single hook electric cable hoist ,monorails,single speed electric hoist or electric single speed hoist crane, and used for the industrial remote control which are under 6 connection.
Specification:
| Model | F21-4S |
| Unique code | over 4.3 billon ID codes |
| Enclosure protection class | IP65 |
| Material | reinforled plastic and glass fiber |
| Temperature range | -35ºC------------+80ºC |
| Transmitter Power Supply | two 1.5v Batteries(AA size) ( up to 3 months usage) |
| Receiver Power Supply | AC380V/220V/110V/48V/36V/24V/12V OR DC12V |
| RF Power | <10dbm |
| Control distance | up to 100 |
| Interface | cable output |
How to order ?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 1-3 days as usual.
6. OEM is welcomed.
Shipping :
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on express
About us:
Henan Yuding electronics co.,ltd was founded in 2010 years, mainly for industrial radio remote control device such as F21 serises , F24 serises ,C-E1Q, 60 etc ,production line is more than 5000sq.m ,more than 400 employee , we has build multiple internationally leading SMT production lines , BGA production lines and DIP production lines , we have obtainer ISO9001-2008 ,CE certificate and Anti-explosion certification in 2011 , on the other side ,our company accept OEM,ODM for different mainboard ,LED ,EPC,FPC etc .
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
