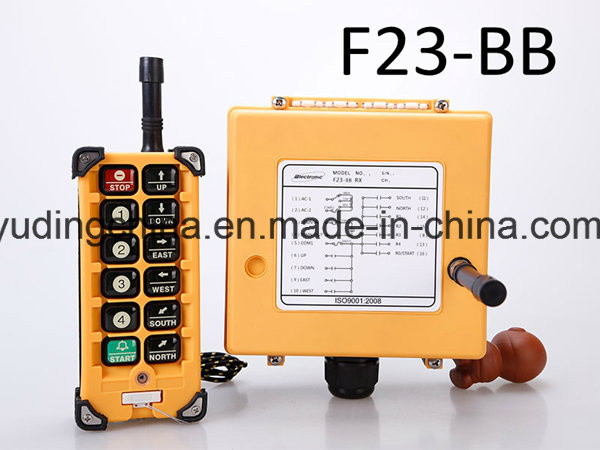

F23-Bb 12volt Industrial Wireless Remote Control for Truck Crane

Name: F23-Bb 12volt Industrial Wireless Remote Control for Truck Crane
Brand: all-electronics-online.com
SKU: 798325355
Availability: InStock
Rating: 4.4 (108 reviews)

Price:	US $ 100-300set
Min Order:	1set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Industrial Wireless Remote Control
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Plastic
Battery Type:	AA Battery

Product Description

F23-BB 12Volt Industrial Wireless Remote Control for truck crane

Our advantage:

1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.

1.Transmitter specifications:

Dimensions: 216*75*43mm
Weight: 315g
Material: glass-fiber
Protection degree: IP65
Power supply: DC 3V (2AA Batteries)

TX Model	F23-BB-TX-V-(E)
TX Size	16.4x7.5x4.5cm
TX Weight	about332g(without Batteries)
Housing Materail	glass fiber-reinforced nylon-6
Protection Degree	IP65
Temperature Rating	-35°C ~ +85°C(Regardless of the battery temperature tolerance)
TX power Supply	Two 1.5 volts Batteries(AA Size)
Number of buttons	10 Single speed buttons,1 START button,1STOP button
Button Marking	arrow tip or chinese or english
security key	provided
I.D.Code	4.3 billion
Voltage Warning	TX Red LED will flash slowly when the volts under 2.2V, and unable to start TX under 1.8V.
Operating Frequency	310.0325-331.165MHz
Channel Spacing	0.2675MHz
Channel	80CH
RF Power	<10DBm
Fault Detection	TX Red LED is flashing quickly: 1.Not in the correct way to start; 2.One of the pushbutton is jammed. TX LED will flash slowly: 1.Please change two new batteries

2.Receiver specifications:

Power supply: AC380V/36V/220V/110V/48V/24V or AC12V/DC12V (±20%)
Dimensions: Size:200*165*107mm
Weight: 1400g
Material: glass-fiber
Protection degree: IP65

RX Model	F23-BB-RX-V-(E)
RX Size	17.0x16.7x8.7cm
RX Weight	about1172g
Housing Material	glass fiber-reinforced nylon-6
Protection Degree	IP65
connection diagram	english
Temperature Rating	-35°C ~ +85°ºC
Power Supply	AC380V,AC36V,AC220V,AC110V,AC48V,AC24V, AC12V/DC12V,AC380V/AC220V(50-60Hz)
Relays	10 Relays control functions,1 relay control EMS and 1 relay reserve
Output Relays	5Amp Omniseal Relays(AC250V/10A Relays ,10Amp fuse)
I.D.Code	4.3 billion
Operating Frequency	310.0325-331.165MHz
Channel Spacing	0.2675MHz
Channel	80CH
Sensitivity	>=-110DBm
Interface	Cable output

Standard configuration:

One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.

Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
