F23-Bb Hoist Remote Controller, Wireless Remote Control, Overhead Travelling Crane Control

Name: F23-Bb Hoist Remote Controller, Wireless Remote Control, Overhead Travelling Crane Control
Brand: all-electronics-online.com
SKU: 715320432
Availability: InStock
Rating: 4.4 (85 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	F23-BB
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	AA Battery
Voltage:	DC/AC12V,AC380V,AC110V,AC220V,DC/AC36V

Product Description

F23-BB hoist remote controller,wireless remote control,Overhead Travelling Crane control

Our advantage:

1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2.More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT
machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
7. One year warranty

Feature:

* 12 single speed push button
* control points are up to 10
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*up/down ,east/west , south/ north push button can be set mutual inhibition or not .
*power button can be set start,speed up,jump strokes, ordinary etc.
*spare 1-4key can be set ordinary, interlock,jump strokes,switch etc.

Basic Information:

Control distance	Up to 100m
Control Motions	10
Frequency generation	Crystal
Structure	Glass-Fiber
Operation frequency	310.0325-331.165 MHz
Certificates	CE, FCC, ISO9001:2008
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C___+80°C
Output capacity	Full sealed relay output with 5 amperes

Transmitter specification

Dimensions: 216*75*43mm
Weight: 315g
Material: glass-fiber
Protection degree: IP65
Power supply: DC 3V (2AA Batteries)

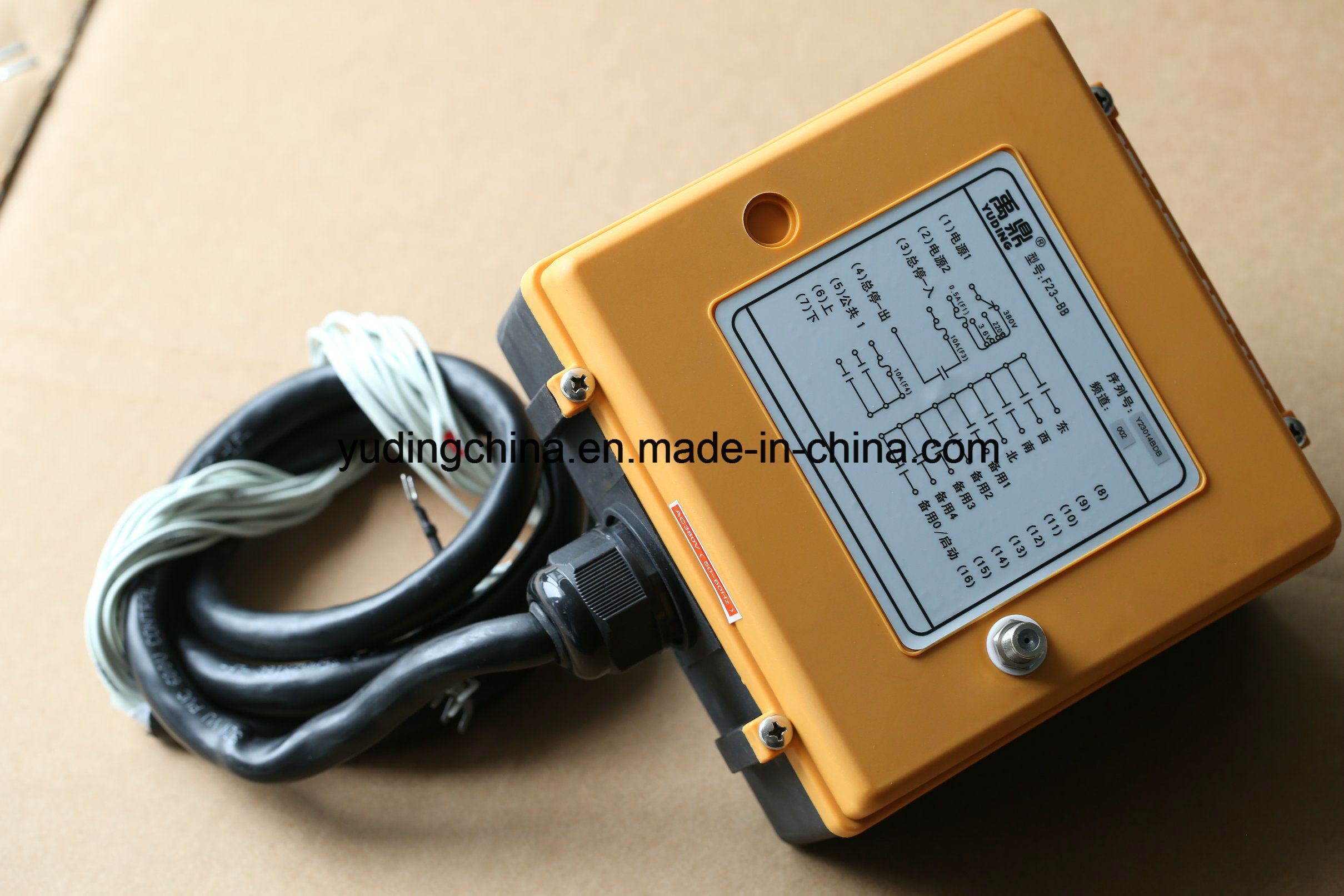

Receiver specification

Power supply: AC380V/36V/220V/110V/48V/24V or AC12V/DC12V (±20%)
Dimensions: Size:200*165*107mm
Weight: 1400g
Material: glass-fiber
Protection degree: IP65

Package:
1 set per box
10 set per carton

Notes:

The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.

Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
