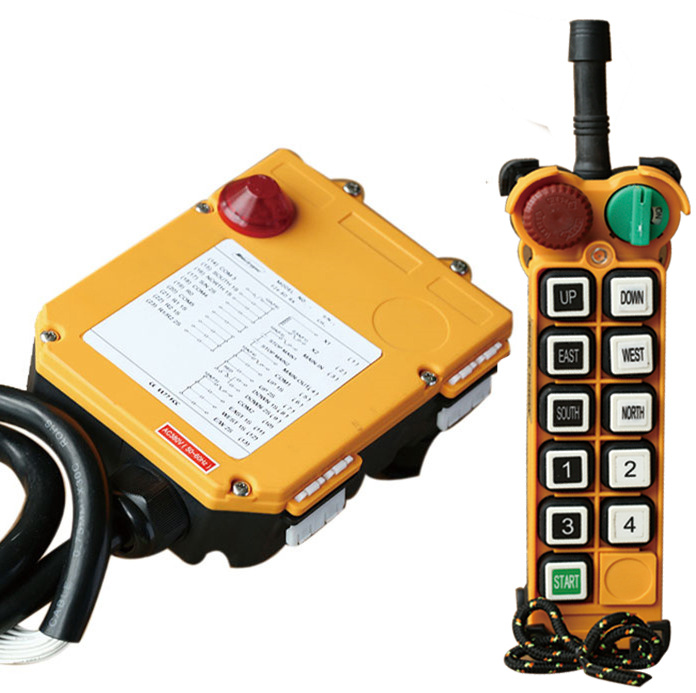

F24-10d Telecrane Remote Control

Name: F24-10d Telecrane Remote Control
Brand: all-electronics-online.com
SKU: 701577232
Availability: InStock
Rating: 4.4 (70 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	F24-10D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	F24-10d Telecrane Remote Control
Control Distance:	up to 100m
Control Motion:	16
Frequency Generation:	Crystal
Structure:	Glass-Fiber
Operation Frequency:	310.0325-331.165 MHz
Certificates:	CE, FCC, ISO9001:2008
Unique Code:	Over 4.3billon Unique ID Codes .
Working Temperature:	-35°c___+80°c
Output Capacity:	Full Sealed Relay Output with 5 Amperes
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Certification:	CE
Universal:	Not Universal
Transmission Distance:	50-100m
Battery Type:	AA Battery
Voltage:	Optional
Material:	Glass Fiber-Reinforced Nylon-6

Product Description

f24-10d telecrane remote control

Company Advantage:

1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable

1. Technical specifications

Application	Overhead cranes, hoist ,chain hoist and other industrial machine.
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	16
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:208
Number of push button	10 Double speed push button +1 start+1 stop
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber

Application of f24-10d telecrane remote controll:

Industrial remote control switch for crane Single hook,Single speed hoist and Hoist crane and for industrial wireless remote control use which under 8 control points etc,

Brief Introduction of f24-10d telecrane remote control:

	Transmitter	Receiver
Size(mm)	2396565	200165227
Weight(mm)	255g	1400g

Standard configuration:

        One transmitter ;
        One receiver;
        One 1m cable connect with receiver
        One operation and maintain manual .

Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
