F24-10s AC 220V Single Speed Crane Radio Remote Controller

Prod Model:	F24-10S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Crane Remote Radio Control
Control Distance:	up to 100m
Control Motions:	10
Enclosure Protection Class:	IP 65
Transmitter:	DC 3V
Receiver Power:	AC 380V/220V/110V/48V/36V/24V or AC/DC 12V
Certificates:	CE, FCC, ISO900:2008
Warrantry:	1 Year
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Battery Type:	AA Battery
Voltage:	Optional
Material:	Glass Fiber-Reinforced Nylon-6

Product Description

F24-10S AC 220V Single Speed Crane Radio Remote Controller


Company advantage:

1. with More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.

Specification of crane remote radio control:


Control distance	up to 100m
Unique code	over 4.3billon unique ID codes
Temperature	-35°C~+80°C
Enclosure protection class	IP65
Transmitter power:	DC3v
Receiver powder	AC 380v/ 36v/220V or DC12V/24V
Output capacity	full sealed relay output with 5 amperes

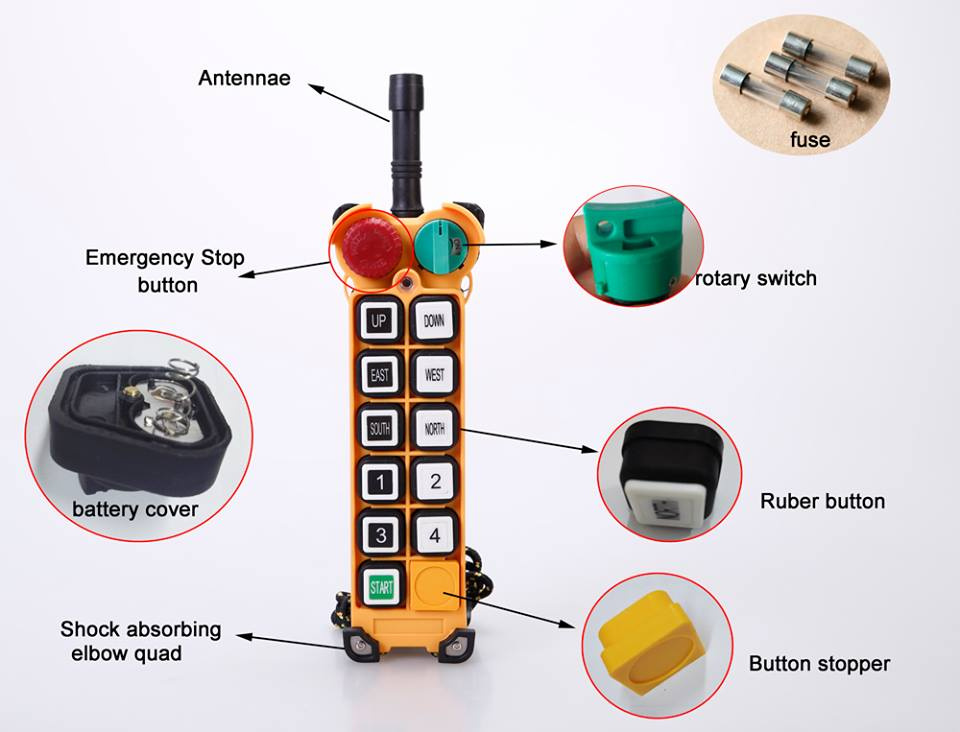

 Transmitter specifications

Dimensions: 239*65*65mm
Weight: 255g
Material: glass-fiber
Protection degree: IP65
Power supply: DC 3V (2AA Batteries)

Receiver specifications

Power supply: AC380V/36V/220V/110V/48V/24V or   AC12V/DC12V (±20%)
Dimensions: Size: 200*165*227mm
Weight: 1400g
Material: glass-fiber
Protection degree: IP65


Application of crane remote radio control:
All kind of industrial application such as double speed crane hook ,single speed crane hoist .
and used for the industrial remote control which are under 10 connection


Notes of crane remote radio control:
The LED on the front of the transmitter indicates the condition of the batteries.  It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low.
If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.
