F24-10s AC/DC 12V 380V Industrial Wireless Remote Control for Double Gider Hook Crane
| Price: |
US $ 90-220/Piece |
| Min Order: |
6/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
F24-10S |
| Product Name: |
Industrial Radio Remote Control |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Temperature Range: |
-35ºC-----------+80ºC |
| Frequency Generation: |
310.0325-331.165MHz(VHF) |
| Certificates: |
Ce,FCC,ISO9001:2008 |
| Application: |
Lifting Equipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
3V |
| Battery Type: |
AA Battery |
| Material: |
Glass Fiber |
Product Description

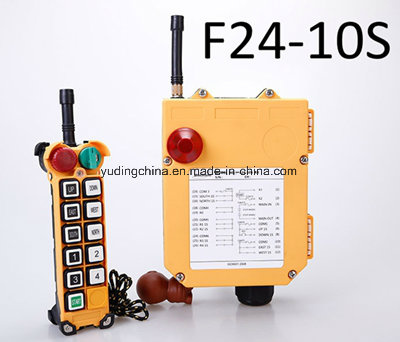

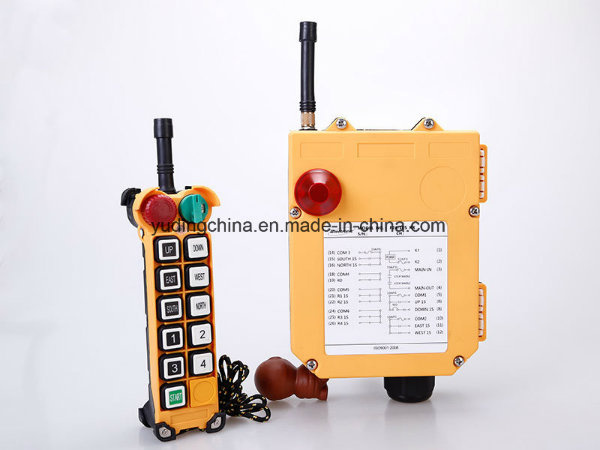

F24-10S AC/DC 12v 380v Industrial Wireless Remote Control For Double Gider Hook Crane
Brief Introduction:
Transmitter size:239*65* 65mm weight:255g
Receiver size:200*165*107mm weight:1200gProduct DescriptionApplications of Remote Control:Single Speed Industrial Wireless Remote Controller for Crane are widely applied for Single hook,Single speed hoist and Hoist crane and for industrial wireless remote control use which under 10 control points etc.
Company Advantage:1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable.

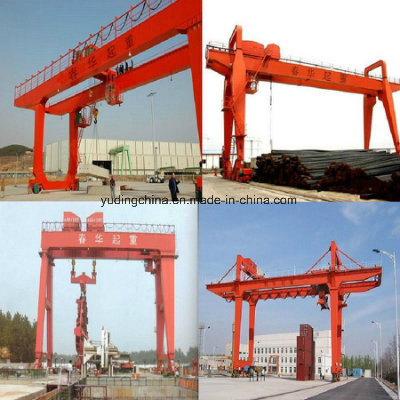

Basic informations: | Application | Overhead cranes, hoist ,chain hoist and other industrial machine. |
| Frequency | 310.0325~331.165Mhz |
| Frequency generation: | Crystal (plug in) |
| Channel | 80 |
| Channel Spacing | 0.2675MHz |
| Control motions | 10 |
| Control distance | Up to 100m |
| Certificates | CE, FCC, ISO9001:208 |
| Number of push button | 10 Single speed push button +1 start+1 stop |
| Unique code | Over 4.3billon unique ID codes . |
| Working temperature | -35°C ~ +80°C |
| Enclosure protection class | IP65 |
| Transmitter power | AA-size batteries |
| Receiver power | AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V |
| Output capacity | Full sealed relay output with 5 amperes |
| Warranty | 1 year |
| Material | glass fiber |
Standard configuration: One transmitter ;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual .Buying Guides:Please tell us your specification according the above different drawing, if difficult to you, kindly see the
below the basic parameters or tell us your questions. We will choose a suitable products for you.
Or Just tell me where you will use, then it is my turns.
1,single speed or double speed?
2,controi voltage ( 24/48/110/220/380VAC 12/24 VDC)
3,how many buttons?(2/4/6/8/10/others)
4,orther request?About us:HeNan DIRk Electronic Co., Ltd is an industrial radio remote controls manufacturer in china .established in August, 2010,With more than 10 years experience on this industrial remote control system business area. headquartered in Zhengzhou, Henan province. DIRK has so many experts in the industrial radio remote controller area to assure workers safety and productivity , DIRK are becoming one of the leading companies in this industry in china.
Our main products is :F21 Series radio remote controls ,F23 series radio remote controls ,F24-60 Dual Joystick radio remote control .all these remote controls are easy to operate to keep workers safety and productivity.All These products are CE & FCC Certificate . Quality is company's life. From the raw material testing, manufacturing, aging test and assembly , Each process are operate according to ISO9001:2008 & international quality control system to guarantee the products quality.competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 provinces.we also have built long-term business relationship with the foreign customers.Certificates:CE,FCC,ISO9001:2008
Contact:If you are interested in our product,please feel free to contact us.
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
