F24-12D 220 Volts Wireless Remote Control Crane Remote Control

Name: F24-12D 220 Volts Wireless Remote Control Crane Remote Control
Brand: all-electronics-online.com
SKU: 700527762
Availability: InStock
Rating: 5 (136 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	F24-12D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	220 Volts Wireless Remote Control/ Crane Remote
Control Distance:	up to 100m
Control Motions:	18
Unique Code:	Over 4.3 Billon Unique ID Codes
Working Temperature:	-35 Deg C~ +80 Deg C
Enclosure Protection Class:	IP 65
Transmitter Power:	DC 6V (4 AA Batteries)
Reciver Power:	AC 380V/ 36V/220V or DC12V
Output Capacity:	Full Sealed Relay Output with 5 Ampers
Frequency:	310.00~330MHz
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Battery Type:	AA Battery
Type:	Spare Part
Voltage:	12~440V
Material:	Glass-Fiber

Product Description

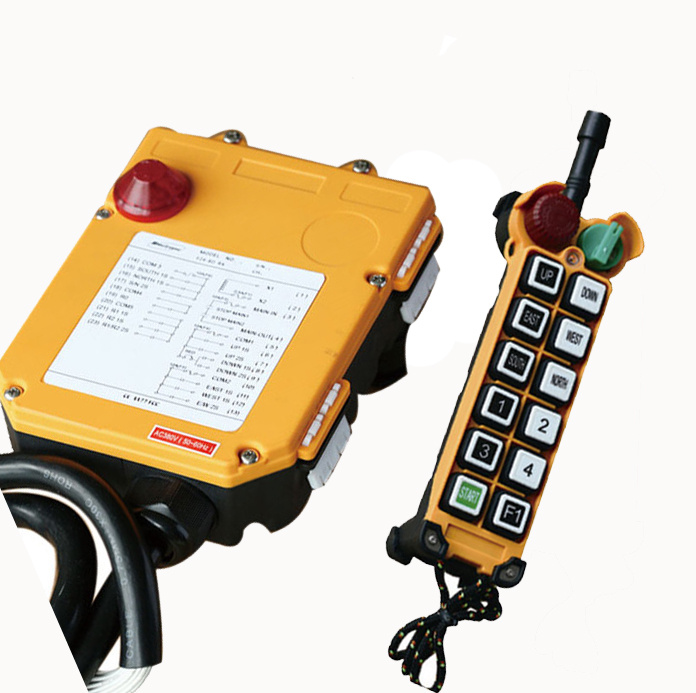

F24-12D 220 volts wireless remote control crane remote control

Company advantage:

1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.

Specification:

Control distance	Up to 100m
Control point	18
Certificates	CE, FCC, ISO
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C___+80°C
Enclosure protection class	IP65
Transmitter power	DC3v
Receiver power	AC 380v/ 36v/220V or DC12V/24V
Output capacity	Full sealed relay output with 5 amperes

Products Application:

F24-12D 220V Wireless remote control crane remote control, mainly used on overhead crane, EOT Crane, birdge crane etc. And can other industrial construction machines which control motions under 18.

Brief Introduction

Transmitter size:239*65*65mm weight:255g
Receiver size:331*160*140mm weight:1200g

Specification:

control distance: up to 100m

unique code : over 4.3billon unique ID codes .

temperature : -35°C-+80°C

Enclosure protection class : IP65

Transmitter power: DC3v

Receiver powder : AC 380v/ 36v/220V or DC12V/24V

output capacity: full sealed relay output with 5 amperes

Standard configuration:

One transmitter ;

One receiver;

One 1m cable connect with receiver

One operation and maintain manual .

Products Features:

*12 Dual speed push button and one EMGS button + one SWITCH

*control point up to 18

*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.

*with the Rotate key switch to guarantee the safety.

*set the internal functions by computer interface

*four push button can be set mutual inhibition or not .

*Up ,Down ,East ,West can be set start ,close,speed up,jump strokes,ordinary etc.

Packaging & Shipping

6 sets per carton
Carton size: 77*48*34cm

Certifications

Hot product

Any interesting, please feel free to contact us!

Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

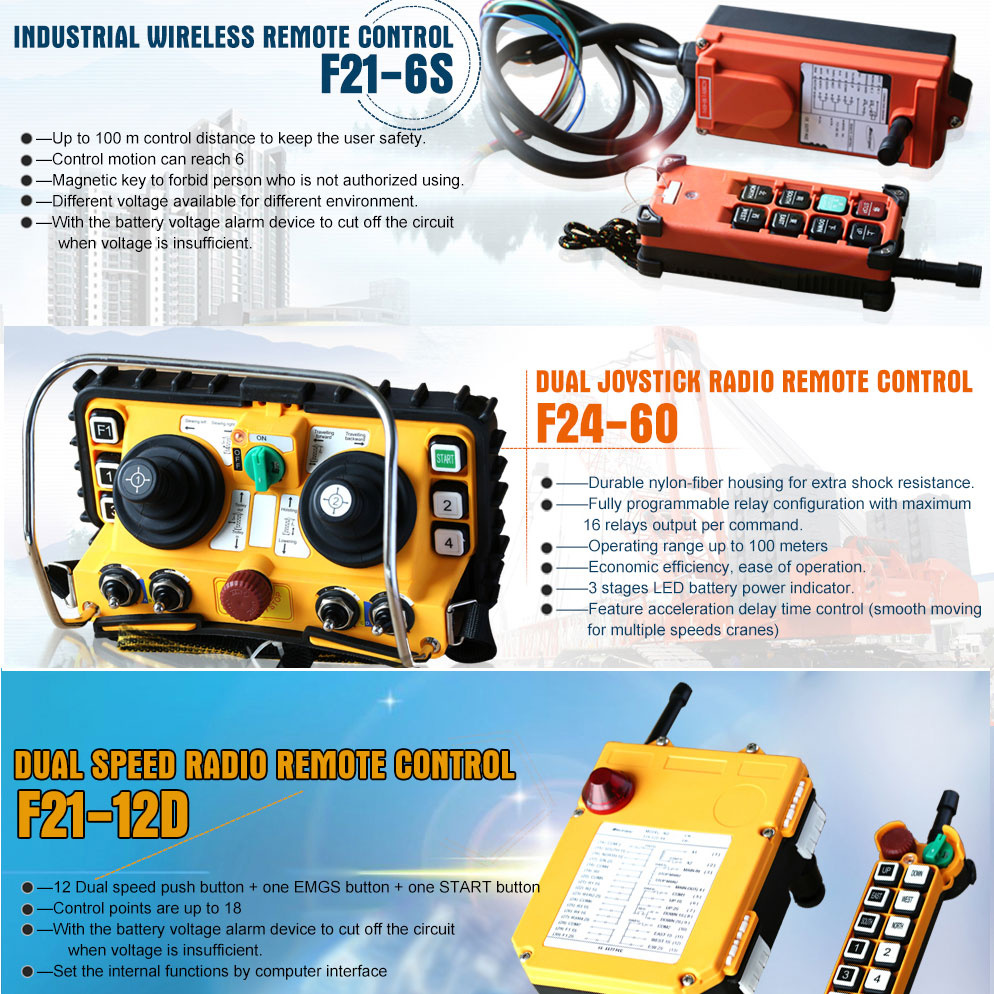

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
