F24-6D Handheld Industrial Wireless Remote Control for Eot Crane

Name: F24-6D Handheld Industrial Wireless Remote Control for Eot Crane
Brand: all-electronics-online.com
SKU: 702040422
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	US $ 180-200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	F24-6D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	F24-6D Handheld Industrial Wireless Remote Control
Control Distance:	up to 100m
Control Point:	10
Temperature:	-35°c___+80°c
Unique Code:	Over 4.3billon Unique ID Codes
Enclosure Protection Class:	IP65
Receiver Power:	AC 380V/ 36V/220V or DC12V/24V
Certificate:	CE, FCC, ISO9001:2008
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Material:	Plastic
Battery Type:	AA Battery
Voltage:	AC 380V/ 36V/220V or DC12V/24V

Product Description

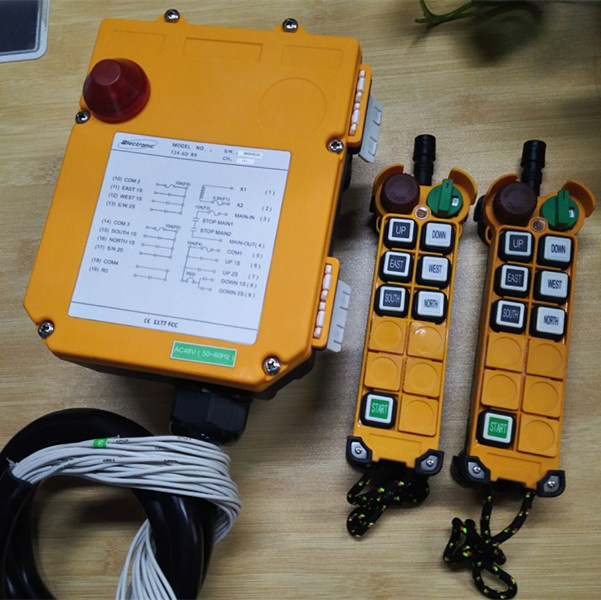

F24-6D Handheld Industrial Wireless Remote Control for EOT crane

Summary:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.

Features:
* 6 Dual speed push buttons +one EMGS button+ one START button+ one STOP button + one SWITCH.
* Control points up to 10.
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* With the Rotate key switch to guarantee the safety.
* Set the internal functions by computer interface.
* Up/down,east/west,south/north push button can be set start ,close,speed up,jump strokes,ordinary etc.

Specifications:

Application	Overhead cranes, hoist ,chain hoist and other industrial machine.
Frequency	310.0325~331.165Mhz, 433Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	10
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:2008
Number of push button	6 Double speed push button+1 start+1 stop
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber

Standard configuration:
                          One transmitter;
                          One receiver;
                          One 1m cable connect with receiver;
                          One operation and maintain manual.

Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
