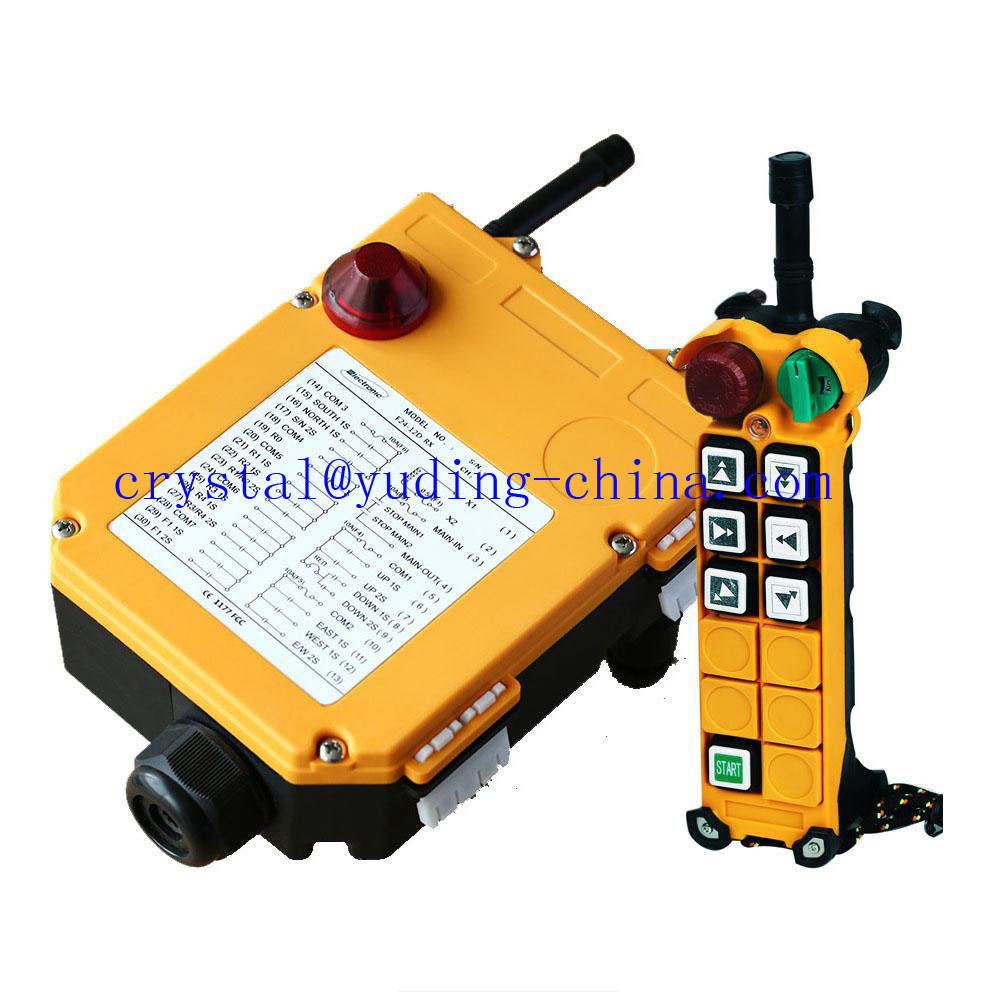

F24-6D Industrial Radio Distance Control

Name: F24-6D Industrial Radio Distance Control
Brand: all-electronics-online.com
SKU: 706588632
Availability: InStock
Rating: 4.3 (72 reviews)

Price:	US $ 100-300/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Set
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	F24-6D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Packing Size:	462515cm(Including Inner Carton)
Net Weight:	3.2 Kg (Incluing Inner Carton)
Packing Details:	1 Set/Inner Carton, 6 Sets/Outer Carton
Application:	Material Handling Equipment, Lifting Euipment
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Battery Type:	AA Battery
Voltage:	Multi-Optional
Material:	Glass Fiber

Product Description

F24-6D Industrial Radio Distance Controlled

Applications of crane remote control:

Single hook electric cable hoist,monorails,single speed electric hoist or electric single speed hoist crane,and used for the industrial remote control which are under 10 connection.

Features of crane remote control:
· Control points up to 10.
· With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
· Set the internal functions by computer Interface.
· UP/DOWN,EAST/WEST,SOUTH/NORTH push buttons can be set ordinary,jump strokes,mutural inhibition or not.

Technical Specifications:

F24-6D Specification
Dimension	Transmitter: 2467546mm
Dimension	Receiver: 200165107mm
Weight	Transmitter: 350g
Weight	Receiver: 550g
Control distance	up to 100m
Control point	10 (6 Dual speed push buttons +one EMGS button+ one START button+ one STOP button + one SWITCH)
Unique code	over 4.3 billon unique ID codes
Temperature	-35°C - +80°C
Enclosure protection class	IP65
Operation frequency	310.0325-331.165 MHz
Transmitter power	DC3V
Receiver powder	AC 380V, 36V/220V or DC12V/24V
Transmitter power	DC 3V (2*AA Batteries)
Output capacity	Full sealed relay output with 5 amperes
Standard configuration:	One transmitter ; One receiver; One 1m cable connect with receiver One operation and maintain manual

Our Products Advantages:

All the products have got CE,FCC certificate.
All operate process according to ISO9001:2008 and international quality control system.
Easy to operate to keep workers safety.
One year warranty.
OEM orders can be acceptable.

Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
