F24-6D Industrial Radio Remote Controller with Double Speed and 10 Relays Control

Name: F24-6D Industrial Radio Remote Controller with Double Speed and 10 Relays Control
Brand: all-electronics-online.com
SKU: 733667422
Availability: InStock
Rating: 5 (91 reviews)

Price:	US $ 70-225/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	F24-6D
Model:	Industrial Radio Remote Controller
Temperature:	-35°c___+80°c
Control Distance:	up to 100m
Enclosure Protection Class:	IP65
Unique Code:	Over 4.3billon Unique ID Codes
Transmitter Power:	DC3V
Certificate:	Ce, FCC, ISO
Control Model:	Wireless Control and Radio Control
Warranty:	12 Months
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	AA Battery
Voltage:	DC/AC12V, AC380V, AC110V, AC220V, DC/AC36V

Product Description

F24-6D industrial radio remote controller with double speed and 10 relays control

Industrial radio remote controller button introduction:

* 6 double speed function buttons

* 1 mushroom button

* 1 Start button/Alarm bell

* 1 shift switch.

Industrial radio remote controller performance:

Control Distance: 100m
Security Code: Above 4.3 billion
Operating Temperature: -35°C to +80°C (Regardless of the battery temperature tolerance)
Protection Class: IP65
Launcher Voltage: DC 3v(Two 5th alkaline battery)
Receiver Voltage: AC 380v or 36v
Inside functions can be set by PC Interface
Button all with English Language

Standard Configuration:

1. One transmitter;
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual.

Industrial radio remote controller application:

1. Overhead bridge cranes, hoist, crane truck, mini crane
2. Gantry crane
3. Beam launcher
4. Monorail hoists,
5. Motorized jib cranes
6. Other pieces of industrial equipment.

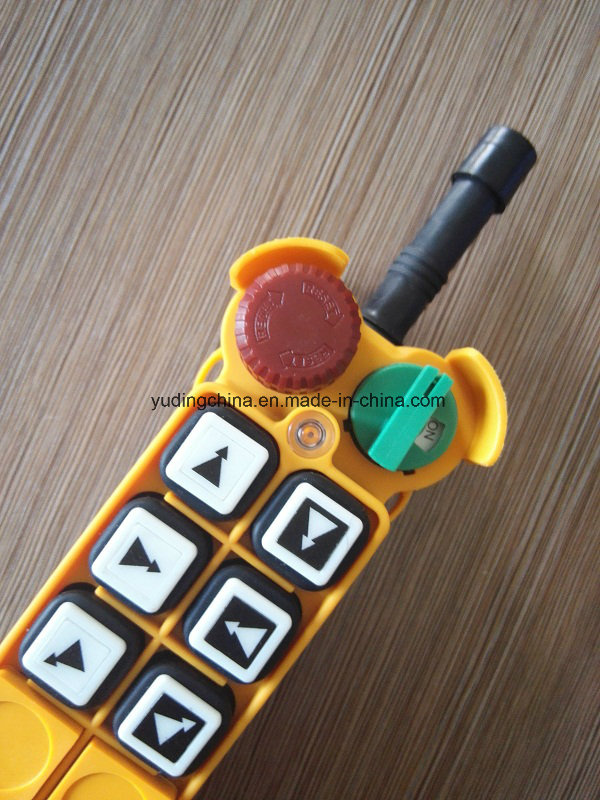

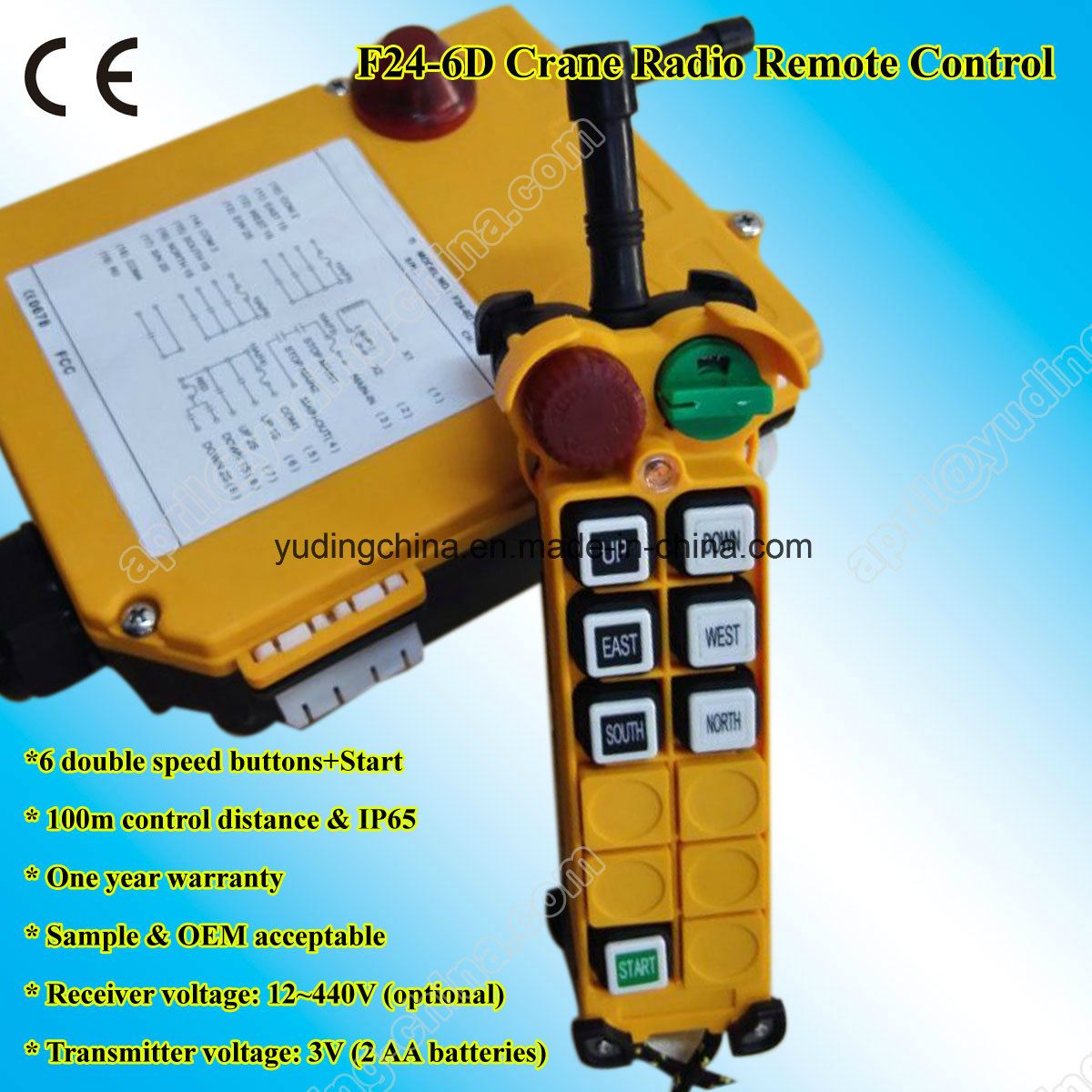

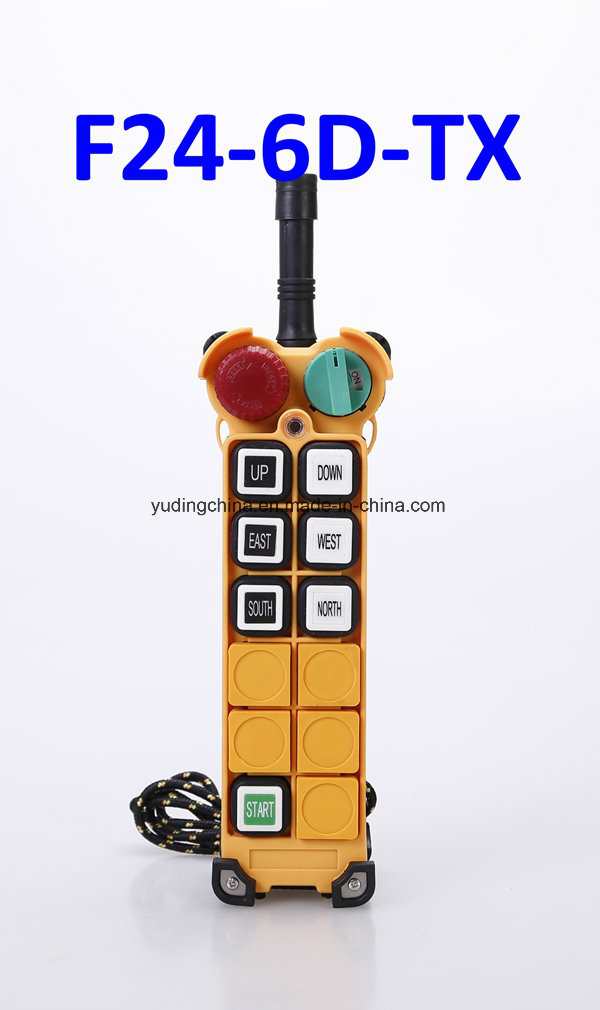

Product Photos

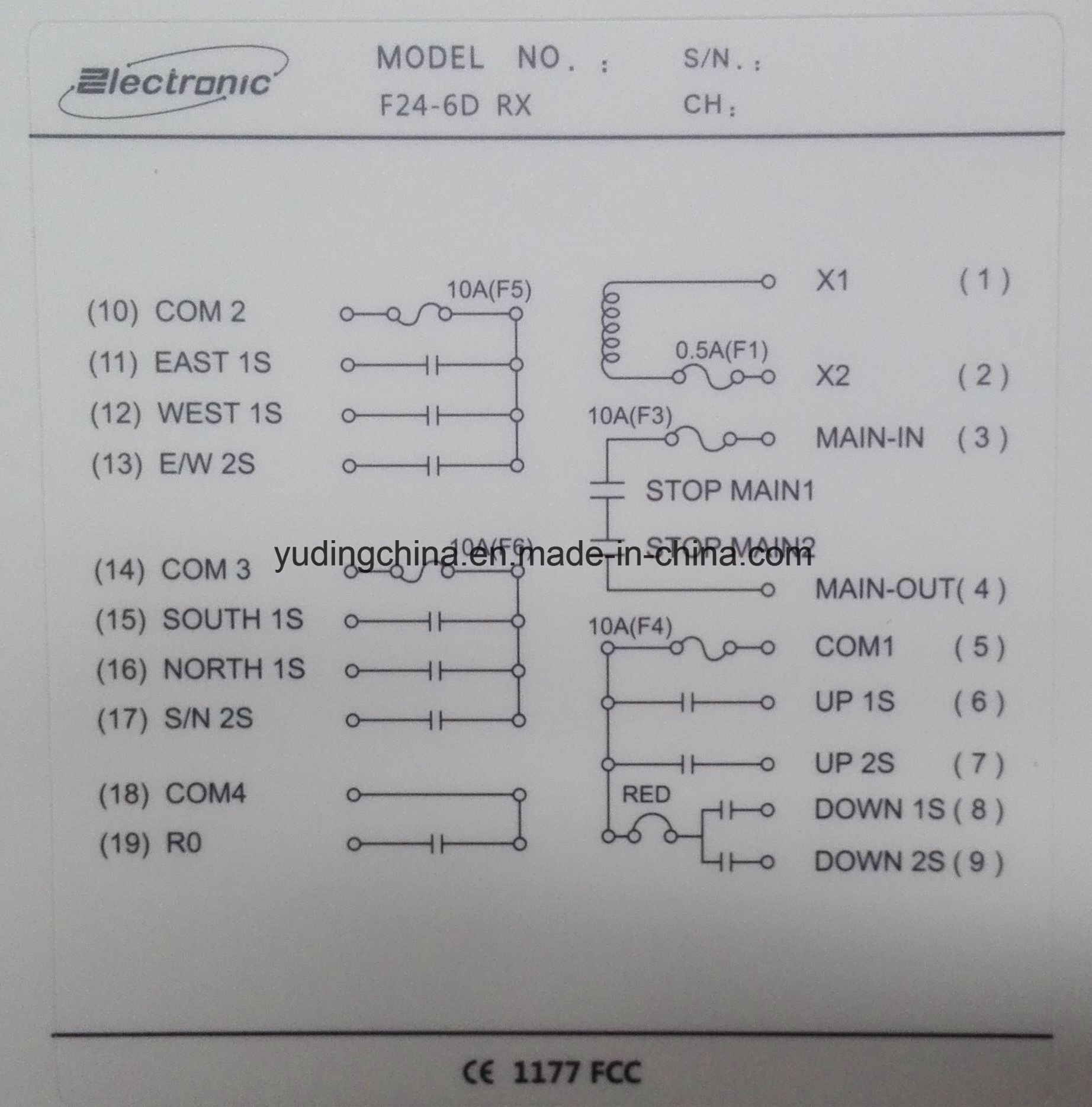

Connection Diagram

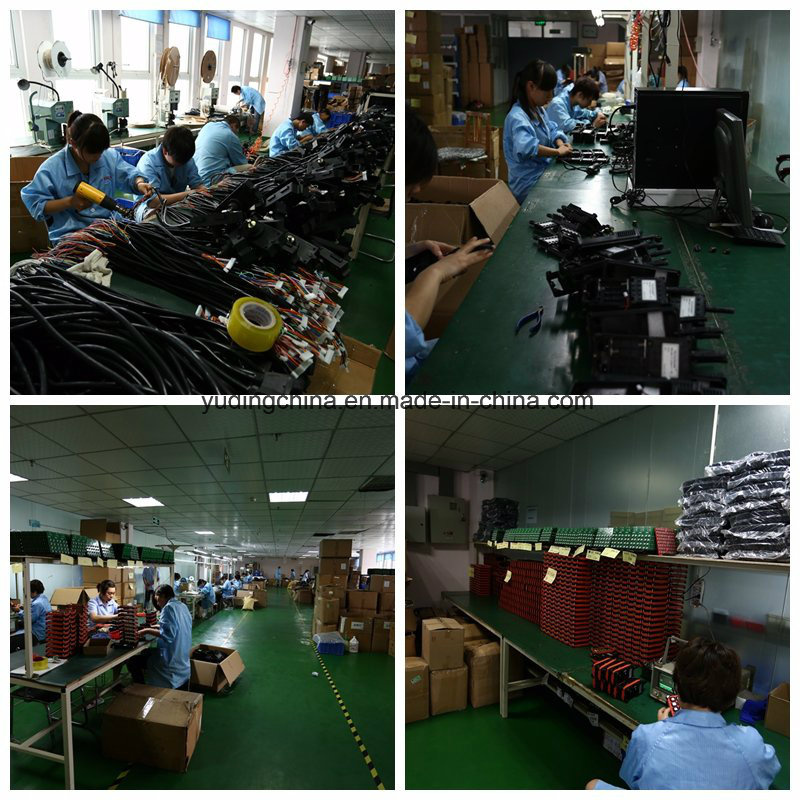

Company Photos

Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
