| Prod Model: |
F24-8S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
Single |
| Series: |
F24 |
| Weight: |
Approx.255g |
| Dimension: |
18.6*6.1*5.1cm |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
Product Description
Packaging & Delivery
Packaging Details: Cartons
Delivery Detail: According to customer's requirements
Specifications

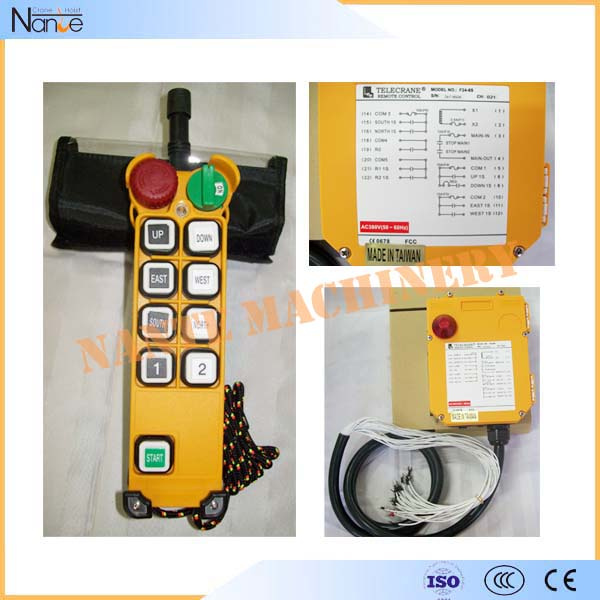

1. Telecrane F24 Radio Remote Control For Crane/Industrial Wireless Remote Control
2. Single/double speed available
Telecrane F24 Radio Remote Control For Crane/Industrial Wireless Remote Control, Handheld Control Button, Industrial Remote Control, Wireless Industrial Crane Remote Control Keypad, Crane Push Button
Buttons
8 programmable, single step pushbuttons, EMS plus start and stop
Transmitter
Dimension: 218x60x60mm
Weight: Approx. 350~365g (without batteries)
Receiver
Dimension: 290x230x70mm
Weight: 1900 g (without wire cable)
Receiver Power Supply: 24/48/110/220/380 VAC
Detailed Product Description
Radio Remote Controls have become a key element within a modern working context where safety, productivity, freedom of movement has a continuously increasing importance. Industrial radio controllers are consequently for time saving and risk reduction working instruments.
Thanks to the radio controller, the operator stands in the place with the best visibility and lowest operation risk. The wireless technology allows controlling the machine in full autonomy without requiring other operators to support the job with indications.
AN INDUSTRIAL RADIO REMOTE CONTROL DIFFERS FROM COMMON WIRELESS CONTROLLERS IN DESIGN AND MANUFACTURING ASPECTS LIKE:
EXCLUSIVE CONTROL
You will be certain that no other radio device will take over the control of your application thanks to an exclusive communication channel protected by a unique ID code that IMET assigns to each radio remote control.
CONTINUOUS AND SAFE TRANSMISSION
This device operates in continuous transmission between the transmitting and receiving units. The radio link is made of digital communication frames that are monitored by algorithms at the reception. This guarantee an absolute correspondence between the commands sent by the operator and the received commands. When the radio link is too disturbed or interrupted the receiver unit will autonomously turn into Stop mode bringing the machine to a safe status.
INTRINSIC SELF CONTROL
Our Radio controllers are based on designing and manufacturing concepts aiming to guarantee safety and reliability. For example, the CPU features dual microprocessors in cross checking, STOP circuit is made of monitored double safety relays, S-STOP relay is available for the reduction of motion command failure risk, error and failure test are performed at each transmitter and receiver powering.
Application
The ranges of applications of our industrial radio remote control system
| 1. Overhead bridge cranes, |
| 2. Gantry crane |
| 3. Beam launcher |
| 4. Monorail hoists, |
| 5. Motorized jib cranes o |
| 6. Other pieces of industrial equipment. |
Design features
Computor interface to set internal functions
Flexible design
Transmitter
Battery 2 pcs 1.5V AA Alkaline.
Battery safety protect it auto power off when power is not enough.
Safety key is used to avoid usage by unauthorized.
Receiver
Input voltage AC 24/48/110/220/380V DC 12/24/48V.
General Specification
Frequency 310.3-331.2 MHz
Frequency control quartz crystal
Output terminal full sealed relay 20A/250V passive switch signal.
Structure glass fiber
Receiving high frequency sensitivity >-110dBm
Transmitting high frequency output power<4dBm
Reaction rate 0.065s.
Protection IP65
Operation distance 100 meters
Convenient Windows port to operate and copy function.
UP/Down East/West South/North keys can be set to mutual rejection.
The key Start function can set to start skip or common by computer.
Nante Machinery is a subsidiary company of Zhejiang Zhongjian Road & Bridge Machinery Co, . Ltd. Zhongjian was founded in 1994. After nearly two decades' sound and rapid development, we have grown into one of China's leading heavy machinery cranes and crane components manufacturers. We covers an area of more than 100, 000 square meters, and above 500 experienced employees, among which, a rough 10% are engineers. Our production lines are all equipped with world-leading brand tools and devices. In recent years, our annual revenue has steadily exceeded 20 million USD, in which a 20% contribution is from foreign trading. We have established long term business relationship with lots of clients from USA, Singapore, Indonesia, Kenya, India, Cambodia, South Africa, Albania, Chile etc.
As a mature crane components manufacture, we not only produce normal crane components, but also deliver an end-to-end solution to crane projects.
We have more than 100models of products
1. From wheel, whell sets to wheel block and end carriage
Open geared type to Hollow shaft model
110mm wheel to 700mm diameter
2. From Lowhead room electirc hoist to chain hoist
3. From Enclosed conductor rail to unipole insulated conductor
HFP56, HFP52(AKAPP model), HFP95(max. 10poles), NSP(max. 1250ampers)
4. From C track festoon system to beam trolley, wire rope trolley to angle steel trolley
5. From Crane cabin to electric panel
6. From industrial remote control to pendant control
7. From limited switch to overload device
As a mature heavy machinery manufacturer, we not only produce individual industrial equipments, but also deliver an end-to-end solution to cover the entire project lifecycle including machinery design, manufacturing, installation and on-going maintenance. We have more than 50 models of products, which can be divided into five major categories as following:
1. Series of construction cranes
Bridge launching crane, form traveller, bridge deck launching gantry, tower crane etc.
2. Series of workshop, shipyard, and port cranes
Overhead crane, gantry crane, jib crane and portal crane etc.
3. Various parts of cranes
Electric hoist, winch, motors, rails, bus bars etc.
4. Structural steel projects
Contractor of industrial steel structures such as new-built workshops, towers, chutes, etc
5. Steel Bailey bridges
Two standard models called Compact 100 and 200 in International market
Quality concept lies deeply in our blood. We are awarded Class-A license of specialized equipment manufacturing and repairing officially by China's State Administration of Quality Supervision, Inspection and Quarantine. All of our deliverables have been certified against ISO9001-2008 quality management system.
Fact is always more persuading than paper works. The quality of our products and services has been testified by their successful implementations in a number of key national construction projects, to name some of them: Hangzhou bay Bridge, Jiubao Bridge, Shanghai-hangzhou high-speed railway, Shenzhen-Guangzhou highway, etc.
We pursue the value of innovation, quality, efficiency and excellence in our company's long term development strategy. We target to become one of China's top manufacturer and solution provider in the heavy machinery industry and a competitive player in the overseas market.
