| Prod Model: |
F35 |
| Frequency: |
433.92MHz |
| Net Weight: |
0.31kg |
| Qty In Carton: |
50 Units |
| Working Temperature: |
-20ºC-85ºC |
| Function Customized: |
Acceptable |
| Batteries: |
2PCS |
| Delivery Port: |
Shunde/Foshan/Shenzhen/Guangzhou |
| Application: |
Fan Lamp |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Voltage: |
3V |
| Battery Type: |
AAA Battery |
| Material: |
Metal + Plastic |
Product Description

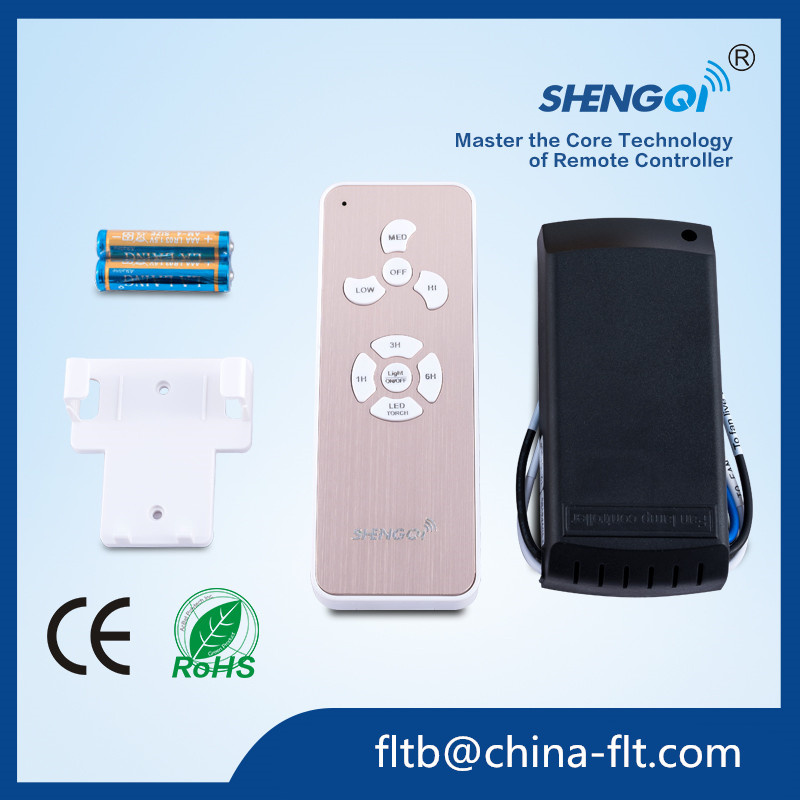

F35 RF Romote Control with 3 Timer Delay Off
| Brand Name | SHENGQI |
| Product Name | RF Wireless Remote Controller |
| Model | F2 |
| Channel | 2 (one for lights, the other for fan) |
| Rated Data | 1000W (192V~240V) or 500W (110V~130V) |
| Rated Frequency | 50Hz-60Hz for Receiver / 433.92MHz of transmitter |
| Power for transmitter | 23A 12V |
| Learning Function | Yes |
| Remote control distance | Less than 30 meters |
| Material | transmitter for ABS Plastic; receiver for PP plastic |
| Warranty | 1 year |
| Unit Packing | Paper Box |
| Qty per Outer Carton | 50 PCS/Carton |
| Size | Approx 133*49*18mm (transmitter) |
| Approx 115*54*25mm (receiver) |
| Customized Function | Timer(Delay Off),Scene,Dimmer,speed governor,Learning Function,Flashlight etc. |
| Loading Qty | 36750 / 76150 / 89450(20GP/40GP/40HQ) |
The voltage in 220V is the default choice of the item. If you want a item in 110V, please advise the seller when placing an order, otherwise we would ship the item in 220V
All of our product are inspected 100% TWICE before delivery.
SHENGQI is Famous in its low repair rate and beautiful appearance.
Package include: Transmitter + Remote control shelf + Receiver + Battery + English manual + Paper box
Special Notes:
Remote control of current stock is no bulb brightness adjustment's function and only OK for turning on and off. Brightness adjustment's function need to customize and its leadtime is about 5 working days for sample after receive the deposit.
Voltage instability region will affect the service life of the remote control receiver!
Shengqi Remote control can be equipped in all of the ceiling fan light , let your home become more modern ! Make you more convenient !
After installing the remote control, please note when power on, the lamp will be in the status of "ON" and the fan will be at "Hi" Speed. If you need other status when the power on, pls let us know when you placing order.
An RF transmitter is ONLY able to remote control ONE ceiling fan lamp, one receiver and one transmitter.
Debug Exam:
1) When the transmitter is unable to remotely control the fan lamp, please check whether the batteries are in good contact or fixed properly or they are no power.
2) When the transmitter is unable to remotely control the fan lamp, please check whether there's other transmitter around caused interference or the keys on the other transmitter are pressed down.
3) Please use this product under applicable voltage. Too low voltage will lead to failure of the remote controller to work. (please refer to the product label for the voltage range and related parameters.)
4) Please take out the batteries from the transmitter when it won't be used for a long time.
