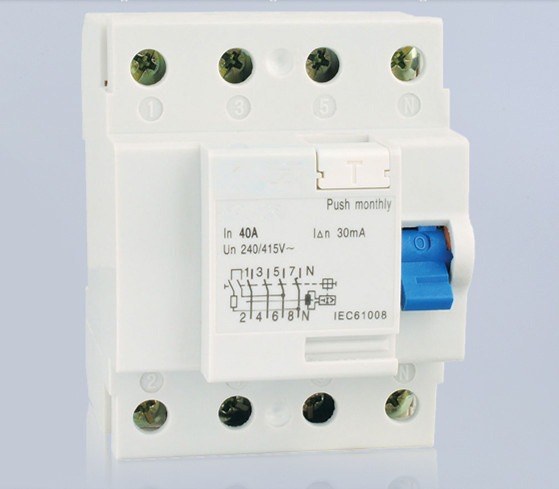

F360 RCCB 2p/4p, Residual Current Circuit Breaker, 40A

Name: F360 RCCB 2p/4p, Residual Current Circuit Breaker, 40A
Brand: all-electronics-online.com
SKU: 778423555
Availability: InStock
Rating: 4.6 (44 reviews)

Price:	US $ 1.85/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	F360
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	16A,25A,32A63A
Leakage Acting Current:	10mA,30mA,100mA,300mA
Warranty Time:	2 Years
Delivery Time:	Prompt Delivery Time
Pole Number:	2p ,4p
Standard:	IEC61009.1&BS4293
Service:	OEM and ODM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Insert
Structure:	ELCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	RCCB

Product Description

Rccb f362 f364 model 2 pole 4 pole F360 earth leakage circuit breaker

Application & Features

1.Elegant appearance, cover and handle in arc shape make comfortable operation.
Contact position indicating window.

2.In case of overload to protected circuit,RCCB handle trips and stays at central position, which enables a
quick solution to the faulty line.The handle cannot stay in such position when operated manually.

3.Provides protection against earth fault/leakage current and function of isolation.

4.High short-circuit current withstand capacity.

Technical date:

Model	Electro-magnetic type
Pole No	2, 4
Rated Current	16, 25, 32, 40, 50, 63A
Rated Voltage	240/415V AC
Rated Frequency	50/60 Hz
standard	IEC61009.1&BS4293
Connection Terminal	Screw terminal

Specification:

Type	Rated Current(A)	LeakAge Acting Current	Range of Break-off	Rated Voltage
SF362	16A,25A,32A,40A,63A	10mA,30mA,100mA,300mA	0.5~1.0	230V(220V)
SF364	25A,32A,40A,63A	30mA,100mA,300mA	0.5~1.0	230V/415V (220V/380V)

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
