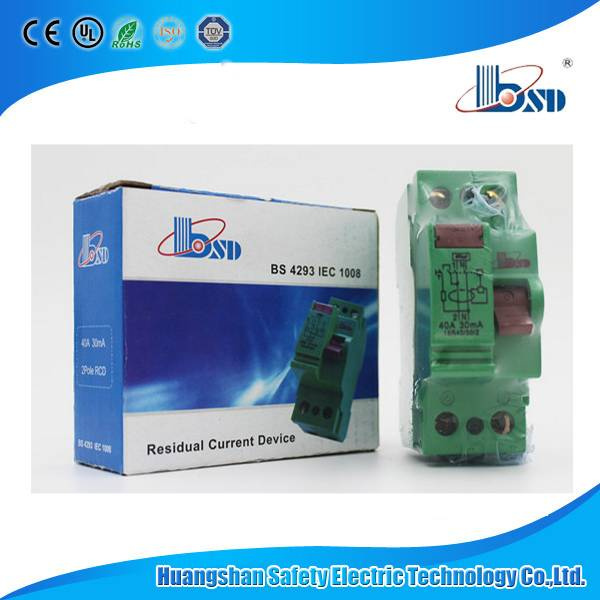

F360 Residual Current Circuit Breaker F360 RCCB

Prod Model:	F360
2p ,4p ,:	16A,25A,32A63A
IEC61009.1&BS4293:	10mA,30mA,100mA,300mA
Class A & B Quality:	Warranty Time :2 Years
OEM ,ODM:	Prompt Delivery Time ,
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Insert
Structure:	ELCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	RCCB

Product Description

Rccb f362 f364 model 2 pole 4 pole F360 earth leakage circuit breaker

 Application & Features

Elegant appearance, cover and handle in arc shape make comfortable operation.
Contact position indicating window.
In case of overload to protected circuit,RCCB handle trips and stays at central position, which enables a
 quick solution to the faulty line.The handle cannot stay in such position when operated manually.
Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated
 sensitivity.
Independent of power supply and line voltage, and free from external interference, voltage fluctuation.


Technical Data
Model: Electro-magnetic type
Residual Current Characteristics: A, AC
Pole No.: 2, 4
Rated Making and Breaking Capacity: 630A
Rated Current (A): 16, 25, 32, 40, 50, 63A
Rated Voltage: 240/415V AC
Rated Frequency: 50/60 Hz
Rated Residual Operating Current IΔn (A): 0.01, 0.03, 0.1, 0.3, 0.5
Rated Residual Non-operating Current I Δno: 0.5I Δn
Rated Conditional Short-circuit Current Inc: 10kA
Rated Conditional Residual Short-circuit Current I Δc: 10kA
Tripping Duration: Instantaneous tripping ≤ 0.1s
Residual Tripping Current Range: 0.5 IΔn~10.5 IΔn
Terminal Connection Height: 19mm
Electro-mechanical Endurance: 4000 cycles
Connection Capacity: Rigid conductor 25mm²
Connection Terminal:
Screw terminal
Pillar terminal with clamp
Fastening Torque: 2.0Nm
Installation:
On symmetrical Din Rail 35mm
Panel mounting
 Specification:

Type	Rated Current(A)	LeakAge Acting Current	Range of Break-off	Rated Voltage
SF362	16A,25A,32A,40A,63A	10mA,30mA,100mA,300mA	0.5~1.0	230V(220V)
SF364	25A,32A,40A,63A	30mA,100mA,300mA	0.5~1.0	230V/415V (220V/380V)
