F360 Residual Current Circuit Breaker (RCCB)

Name: F360 Residual Current Circuit Breaker (RCCB)
Brand: all-electronics-online.com
SKU: 814530395
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	US $ 1-1.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	F360
Export:	Yes
Sample:	Yes
Quantity:	5000/Year
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Oil-immersed Type
Installation:	Fixed
Structure:	ELCB
Poles Number:	4
Certification:	CE

Product Description

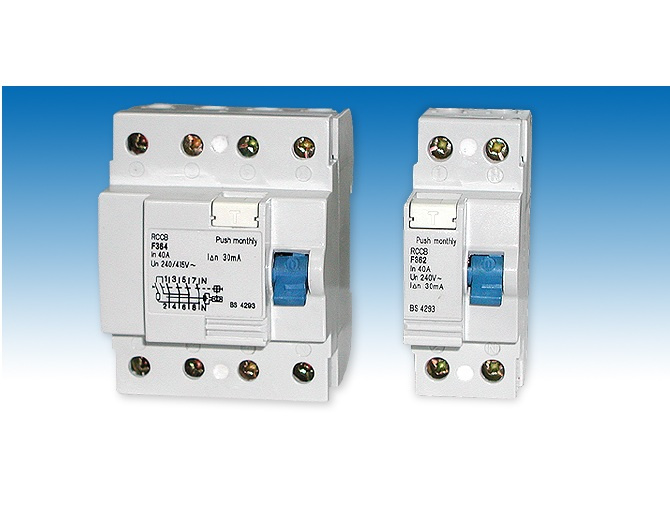

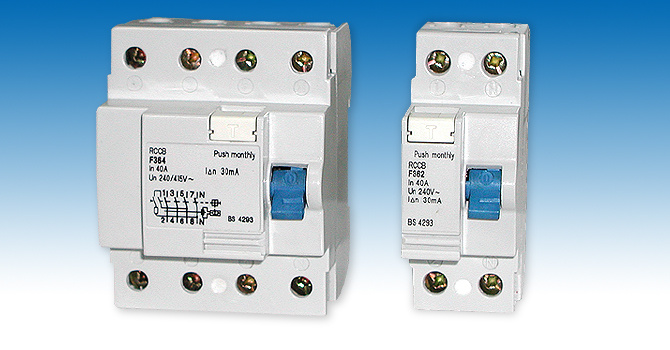

F360 Residual Current Circuit Breaker (RCCB)

The item is in accordance with the standard of IEC1008,VDE0664,CEE27 and Bs4293 etc., Applied to the circuit of AC 50/60Hz ,240V single phase,415V three phases and below it for industrial and mining enterprise, trade building, commerce and family. To mainly prevent electric fire and personal casual accident caused by personal electric shock or leakage of electrified wire netting, this RCCB is a current-operated, fast leakage protector of pure electromagnetic type ,which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less element, without auxiliary power and high working reliability. The function of the switch won't be influenced by ambient temperature and lightning. The mutual inductor of the item is used to test vector differential value of passing current, and produces a relevant output power and add it to the tripper in secondary winding, if the current of vector differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection

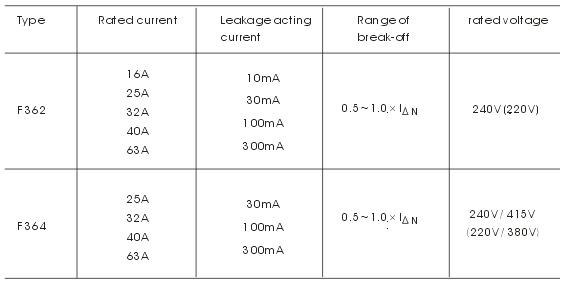

Specifications:

Main Technical Data:

Tripping time: 100ms (depending on specifications 5×l ≤40ms)
Ambient temperature: -5~±55°C
Climatic resistance: 55°C /28 cycles
Vibration resistance: Minimum 5g 30min, 0~8Hz
Life expectance: At least 10,000 operations

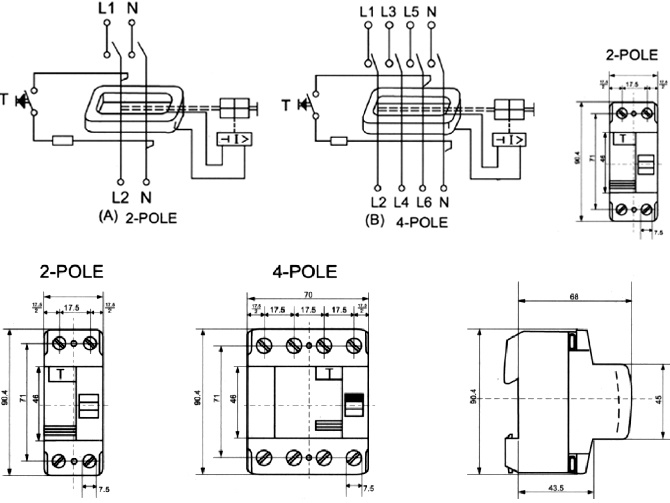

Operation Principle:

Internationalization standard quality guarantee system

The product quality of onandoff Group has been strictly controlled in each working procedure, many kinds of internationalization standard quality guaranteed system can be highly effective under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently make sure of our product quality.

"Onandoff" was evaluated as " Chinese famous trademark", Onandoff Group has obtained American FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management system authentication, CCC authentication, European Union CE safe Authentication, American UL authentication and Dutch KEMA authentication and so on, at the same time, it has had the first side laboratory -- low voltage electric appliance test center which is the first connected with international in China. Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
