F364 40A 4p Residual Current Circuit Breaker (RCCB)

Name: F364 40A 4p Residual Current Circuit Breaker (RCCB)
Brand: all-electronics-online.com
SKU: 840455895
Availability: InStock
Rating: 4.6 (97 reviews)

Price:	US $ 2.6-7.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NOEFI4
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Poles Number:	4
Certification:	CCC

Product Description

F364 40a 4p Residual Current Circuit Breaker (RCCB)

1. High Quality.
2. W CE certificate
3. Very Comparative price
4. 2P, 4P 5,electric apparatus

APPLICATION:

F362 F364 series Residual current breaker (without over-current protection) issuitable for the line of AC 50/60Hz,voltage 240V(2pole)/415V(4pole),rated currentup to 63A.When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protecthuman safety and prevent the accident due to the current leakage.It can beused as infrequent changeover of the line in normal situation. It is applicable toindustrial site, commercial site, tall building and civil house.It complies with standard of IEC/EN61008.1 and GB16916.1

Frame class	63A
Rated working voltage	240/415V
Rated frequency	50/60Hz
Rated working current	16, 25, 40, 63A
Rated residual operating current	0.03, 0.1, 0.3, 0.5A
Rated residual un-operating current	0.015, 0.05, 0.15, 0.25A
Sensibility	A &AC Type
Maximum operating time	IΔn t≤0.1s, 5IΔn t≤0.04s
Rated making and breaking capacity	In≤50A 500A, In≤63A 630A
Limiting value of un-operating current	6In
Rated limiting short-circuit current	3000A
Pole number	2P, 4P
Mechanical life	20000
Electric life	4000

2.the picture

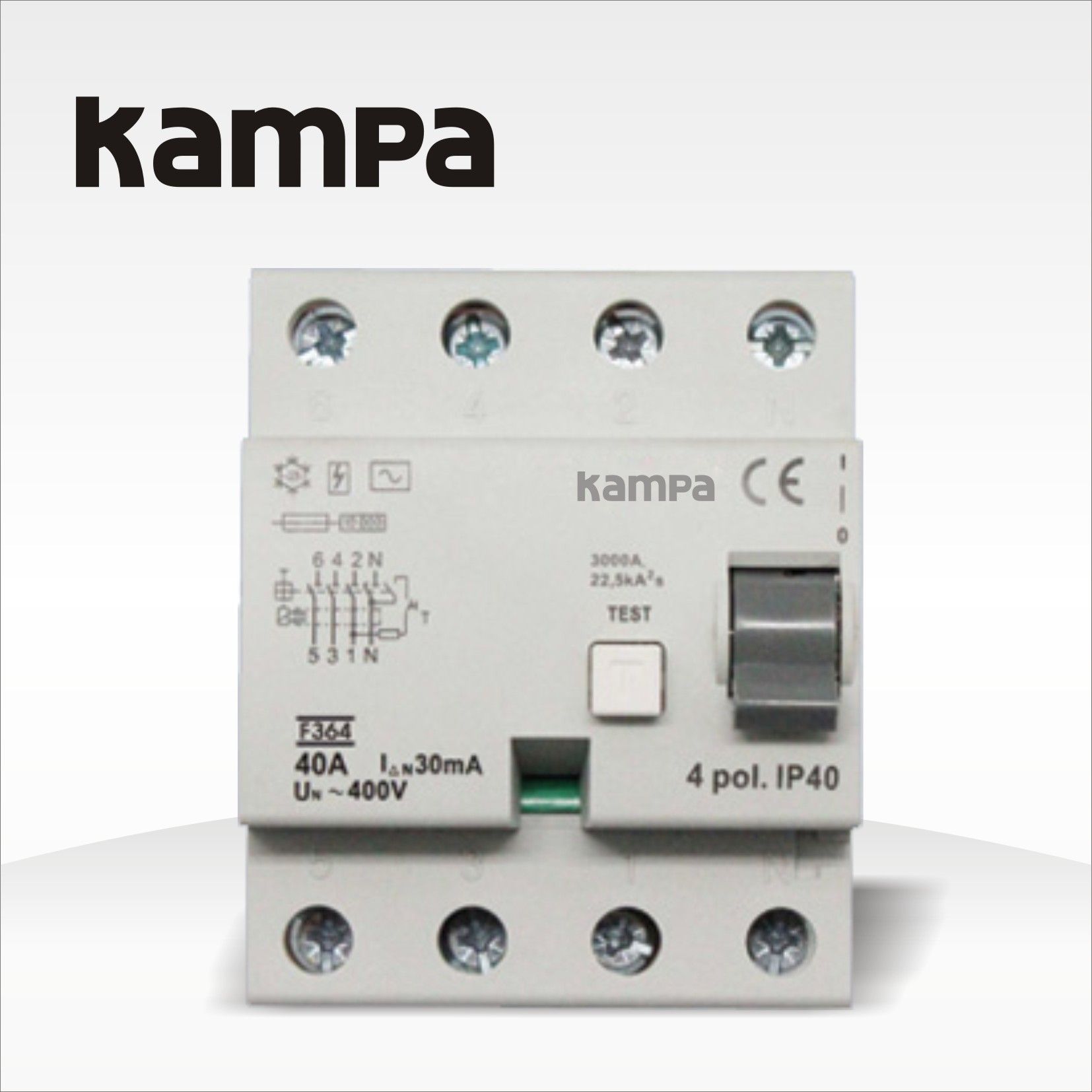

3.production photo of rccb

3.COMPANY INFORMATION

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as

Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,

Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.

We are manufacturer and have ten years experience in Electrical industry.

4. OUR SERVERCE

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

5. OUR ADDRESS

YUEQING KAMPA ELECTRIC CO.,LTD
ad#666,FeiLong Electric,LiuShi Town,YueQing City,ZheJiang,China
Tel:0086-577-62729846
Fax:0086-577-62780320
Website:www.china-kampa.com

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
