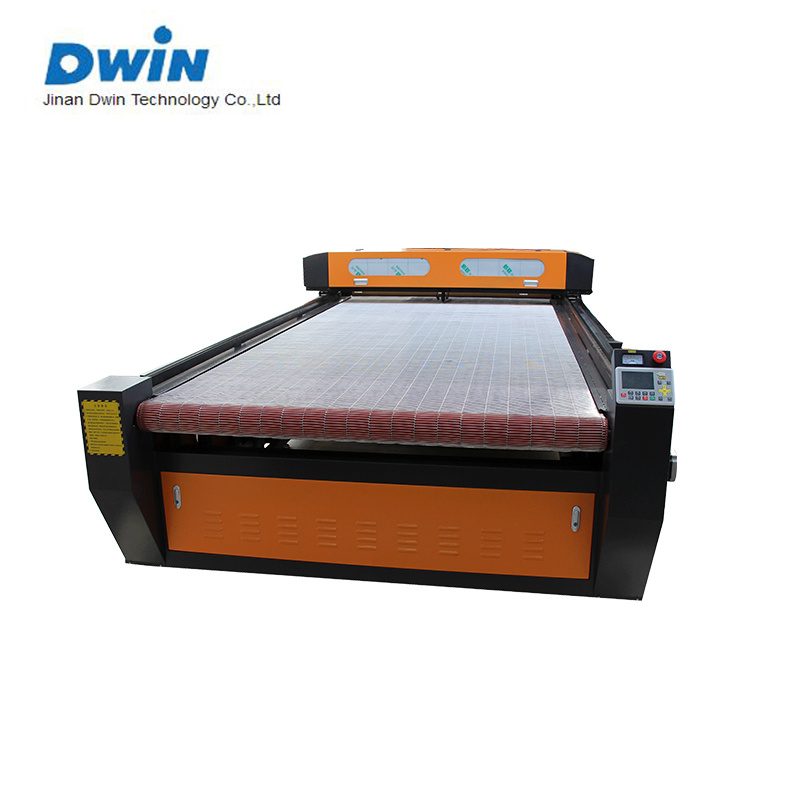

Fabric Wool Felt CO2 Laser Engraving Cutting Machine Price

Prod Model:	DW-L1610A
Name:	Auto Feeding Laser Cutting Machine
Certification:	Ce, ISO, FDA
Laser Power:	80W, 100W, 150W, 260W
Cutting Thickness:	0-35mm
Cutting Area:	1600*1000mm/1400*1000mm or Customized
Resetting Positioning Accuracy:	0.01mm
Motor:	Servo or Stepper as Your Option
Resolution Ratio:	<0.01mm
Software Supported:	Coreldraw, Photoshop, Autocad
Machine Warranty:	2 Years for Machine

Product Description

fabric wool felt CO2 Laser engraving Cutting Machine price


Characteristics:

1.Fast curvilinear cutting function:It can cut via any curve fast continuous cutting, the laser heads moving in beautiful arc just evoke your imagination of top grade racing car.
2.To fully support design software, such as CAD, Coreldraw, Photoshop, friendly man-machine interface, live close to the industry needs.
3.Multi-document function:SC series equipment can store as many as 256 working documents, in the case of without the computer, the user can select files in the engraving machine, the mass production of 256 different products.
4.All-optical isolation system with high speed differential input and output circuit design, long distance transmission signal without distortion, strong anti-jamming capability, system has realized the no.12 working state output, state 16-way input, to dock with the user production site easily.
5.Large-format laser cutting incision smooth fine, meet the blanking, machining the whole piece of cloth.
6.Stable light path design, match industrial water-cooled machine, ensure the large-format, cutting the position work surface laser power output is consistent, fast and efficient, stable machining quality.
7.Automatic feeding and discharging, save time, improve work efficiency, it can customize according to customer's demand level.
8.Feeding system adopts special words with mesa, pedrail automatic feeding device, convenient processing objects move freely on the surface of the cutting machine.9.The machine used in clothing, textiles, leather and other industries.Mainly used for plate, cloth, leather and other non metal cutting and carving.

Machine Parameter

No.	Description	Machine parameter
1.	Machine model	DW-L1610A
2.	Laser medium	Co2 gas
3.	Working area	1600*1000mm
4.	Working table	B type mesh belt
5.	Laser power	80W/100W/130W(optional)
6.	Power Supply	220V/50Hz/60Hz
7.	Min line width	≤0.15mm
8.	Positon accuracy	±0.05mm
9.	Repetition accuracy	0.02mm
10.	Cutting speed	700mm/s
11.	Guide rail	Hiwin from Taiwan
12.	Transmission method	Belt Transmisson
13.	Drive system	Leadshine driving system and stepper motor
14.	Cooling system	Water-cooling
15.	Control system	DSP
16.	Control software	Coreldraw, Photoshop, AutoCAD, etc
17.	Graphic format support	PLT, DXF, BMP, JPG ,AI ,ect
18.	Working environment	0-45ºC
19.	Operating Humidity	5-95%
20.	Machine warranty	2 years

Applicable materials
Genuine leather, artificial leather, soft leather, decorative leather, packaging leather.Etc all kinds of leather, leather materials, pure cotton, real silk, all kinds of chemical fiber, cowboy, and so on.All kinds of textile materials or non woven material.
Typical case:Clothing.Footwear, toy, luggage, wild camp, car seat cut, such as the car chair affixed cloth embroidery, special shaped trademarks, airbags, such as laser cutting, garment leather carve patterns or designs woodwork hollow cut.


Dwin service
1.Beforesale:We will try to know your requests about what work you will do and help you choose the most suitable machine specification & give you the best solution.
2.During production:We will send photos of machines during production.So customers can know more details about the procession of making their machines.
3.Before shipping:We will confirm the specification of order to avoid the mistake and we will test & adjust the machine until it has the best performance.
4.After shipping:We will give you the tracking information of the sea vessel so customers can know when it will arrive at your port and make enough preparation.
5.After arrival:We will confirm with you if machine is in good condition.And see if any spare parts were broken during sea shipping then help to solve the insurance
6.About training:There are some manual and video about how to install & use machine , if you have any questions you can contact me any time, then i arrange our professional technicians to help you by video, pictures,call or email.
7.About warranty:We offer 1 years warranty for whole machine and six months warranty for laser tube.If any parts of our machine is broken,we will replace it for free.(no human reason)
8.Service in lifetime:We hope our machine can bring perfect performance in lifetime, of course no matter how manyyears passed, you always can contact me, we can give you any technical support in the future life-time.
