Face to Face Fixed Code RF Remote Control Duplicator Kl180-4K

Name: Face to Face Fixed Code RF Remote Control Duplicator Kl180-4K
Brand: all-electronics-online.com
SKU: 826150305
Availability: InStock
Rating: 4.4 (76 reviews)

Price:	US $ 1.85/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KL180-4K
Model Name:	Kl180-4K
Buttons Sum:	2 or 4
Operating Voltage:	DC 12V
Operating Current:	11mA
Operating Frequency:	315MHz / 433.92MHz
Transmitting Distance:	100m
Battery:	27A 12V
Ambient Temperature:	-20ºC ~ +50ºC
Color:	Metal Frame Black.
Weight:	36g
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Metal
Battery Type:	Button Battery

Product Description

Face to face fixed code RF remote control duplicator KL180-4K

Use range

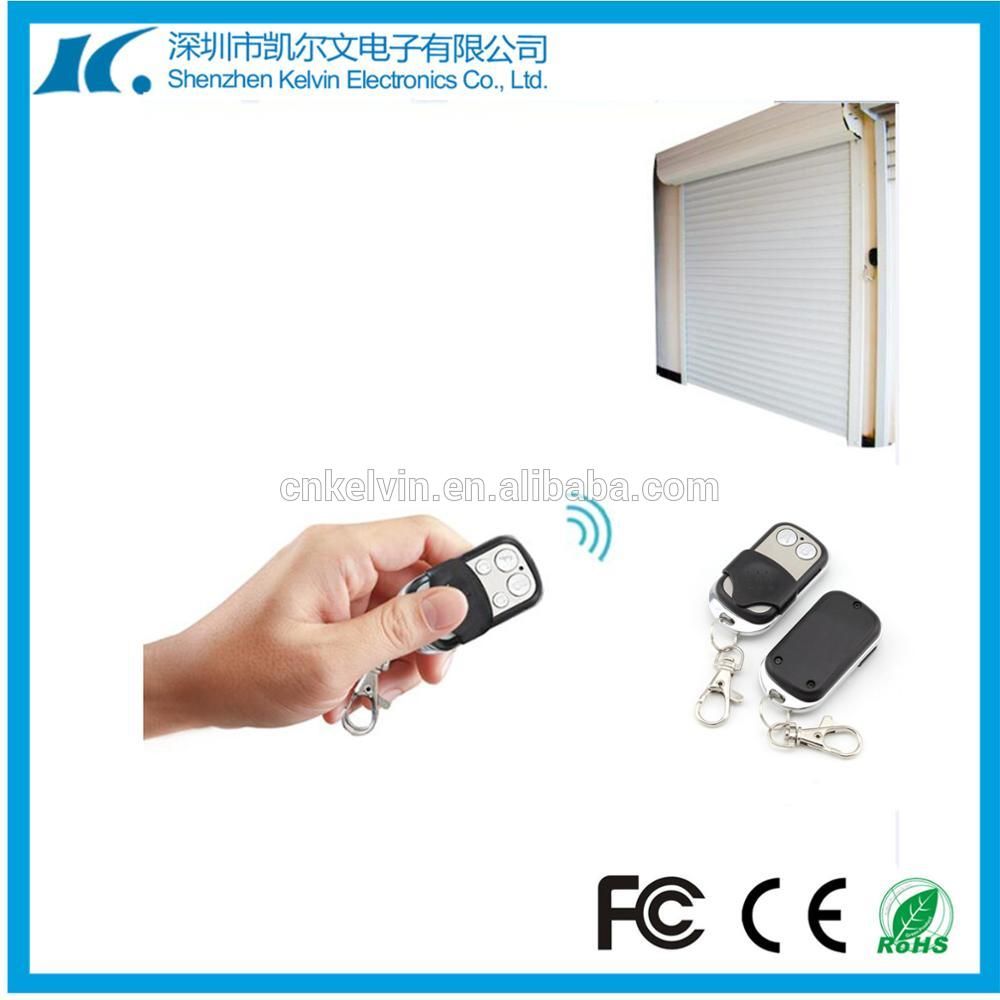

Kelvin 4-Channel RF Wireless Remote Control Duplicator for Garage Doors , Gates doors, Alarm systems etc. Fixed frequency (433.92mhz or 315mhz) for copying 99.99% common fixed and learning code remote controls.
Face to face copy the functions of your original remote by this 4-channel RF remote control duplicator with code learning functions and you'll always have a back up.
Duplicate Your Existing Remote Controllers:

Description:

Buttons	2/4
Operating voltage	DC12V
Operating current	10MA
Operating frequency	315Mhz, 433Mhz, 868.35Mhz, 869.85Mhz, 290Mhz - 480Mhz
Ambient temperature	-20 °C ---- +50 °C

Methods of operation
1, Clear out code:
Press A and B at the same time, two seconds later, LED flashes three times, followed by a continuous fast blinking. Indicates that the remote control code stored was deleted.
4 Buttons 433MHz Remote Control Duplicator Kl180-4k

4 Buttons 433MHz Remote Control Duplicator Kl180-4k

2, Duplicating (learning)
Right Hands press original remote control A, and left hand press remote control duplicator A', 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A',B-B') three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. That's mean successfully copied.
4 Buttons 433MHz Remote Control Duplicator Kl180-4k

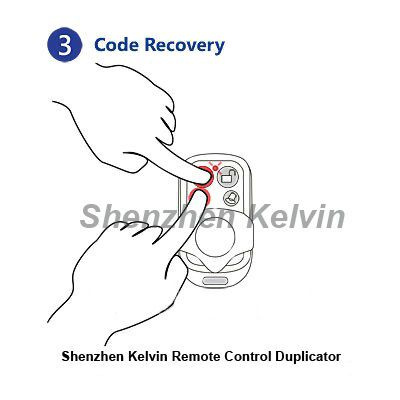

3, Recovery code
Press A and C at same time , 3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.
The other way, you can delete all and relearn them again.
4 Buttons 433MHz Remote Control Duplicator Kl180-4k

Our Service
1. Accept OEM, ODM & silk-screen printing you logo on the shell.
2. Response in 10 hours.
3. Experienced R&D staff.
4. Professional SMT equipments.
5. Accept payment via T/T, Paypal, Western Union, Escrow, and so on.
6. Delivery by DHL,UPS,EMS or by sea as your requirments.

Shenzhen Kelvin Electronics Co., Ltd. is one of the leading manufacturers of RF products in China. We were established in 2006, and equipped with professional R&D team and abundant technical skills.

Our main business covers RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Kelvin always wins customers' recognition with quality and after-sales service. All items designed with Europe standard, meeting the CE and RoHS requirement. We have been ISO9001: 2000 certified since 2015. It's carried out strictly from raw material purchasing to packing and warehousing, also effectively lower down the defective rate. Besides, we are trying to make a real difference to the environment by improving our production processes and adopting environmental material, etc.

Company History: Feb 2006 Company Founded--DEC 2006 1st SMT production line--Nov 2008 1st Ce Certification--Feb 2016 Subsidiary company established

Sales performance: Turnover in 2012 Over 10million RMB--2016 Over 10million RMB

Scope of business: RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Prospects for development: Bright future is coming
