| Prod Model: |
Rg6 |
| Color: |
White/Black |
| Shield: |
Al Foil+Braiding |
| Coverage: |
90% |
| Conduct Diameter: |
0.81mm -1.02mm |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
RoHS |
| Model: |
RG6 |
| Wire Core Material: |
Cu/CCS/CCA |
| Brand: |
ADP/OEM |
| Type: |
Coaxial Cable |
Product Description

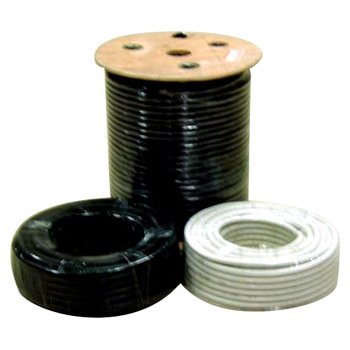

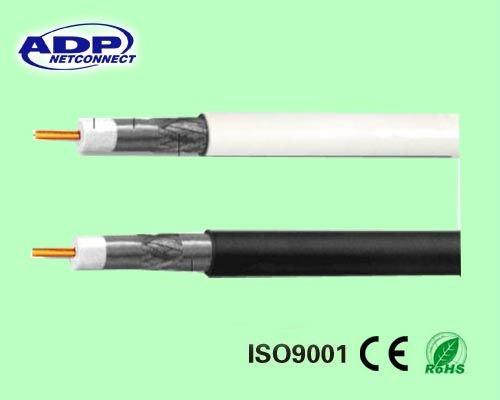

Factory Best price Rg6 coaxial cable for CCTV/CATV
Physical Specifications :
Nominal Dimensions | Standard | Tri-shielding | Quad-shielding |
Conductor | 1.02mm( 0.0403 in) | 1.02mm( 0.0403 in) | 1.02mm( 0.0403 in) |
Dielectric | 4.57mm(0.180 in) | 4.57mm(0.180 in) | 4.57mm(0.180 in) |
Shielding 1 | Al /Pet foil | Bonded Al /Pet foil | Bonded Al /Pet foil |
Shielding 2 | 0.12mm*64 (40% coverage) | 0.12mm*80 (60% coverage) | 0.12mm*144 (90% coverage) |
Shielding 3 | - | Al /Pet foil | Al /Pet/Al foil |
Shielding 4 | - | | 0.12mm*64 ( 40% coverage) |
Jacket | 6.91mm( 0.272 in) | 7.06mm( 0.278 in) | 7.62mm( 0.300 in) |
Messenger | 1.3mm (0.051 in) Zinc plated steel |
Mechanical Characteristics:
Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N
Electrical Characteristics :
Impedance ( Ohms) 75±3
Nominal Capacitance (pF/m) 53
Velocity of Propagation 85%
Structural return loss (Db)≥ VHF 22
UHF 20
Packing and Shipping
1.Shipping: By sea or air
2.Packing:Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll & Customized
1) Inner packing: Wooden reel, plastic reel, and paper reel available.
2) Outer packing: Carton box, pull out box, pallet available.
3. Payment: We accept T/T, L/C and Western Union, 30% deposity to start production, 70% balance
and sea freight base on BL copy
4. Delivery time: Generally 7-15days upon receipt deposit. According to the quantity.
5. MOQ: Generally our MOQ is 30000meters.
