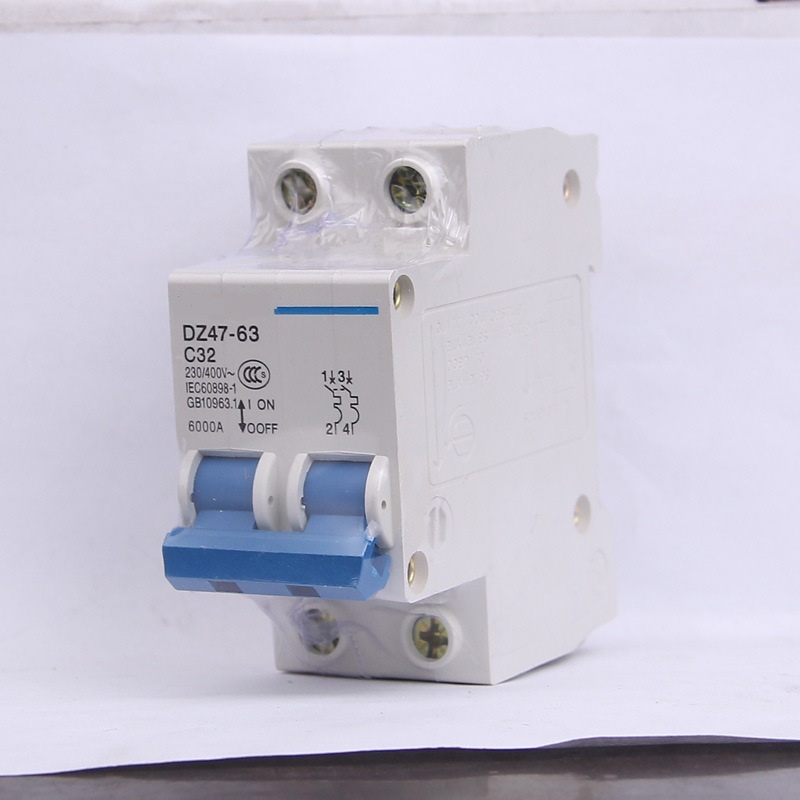

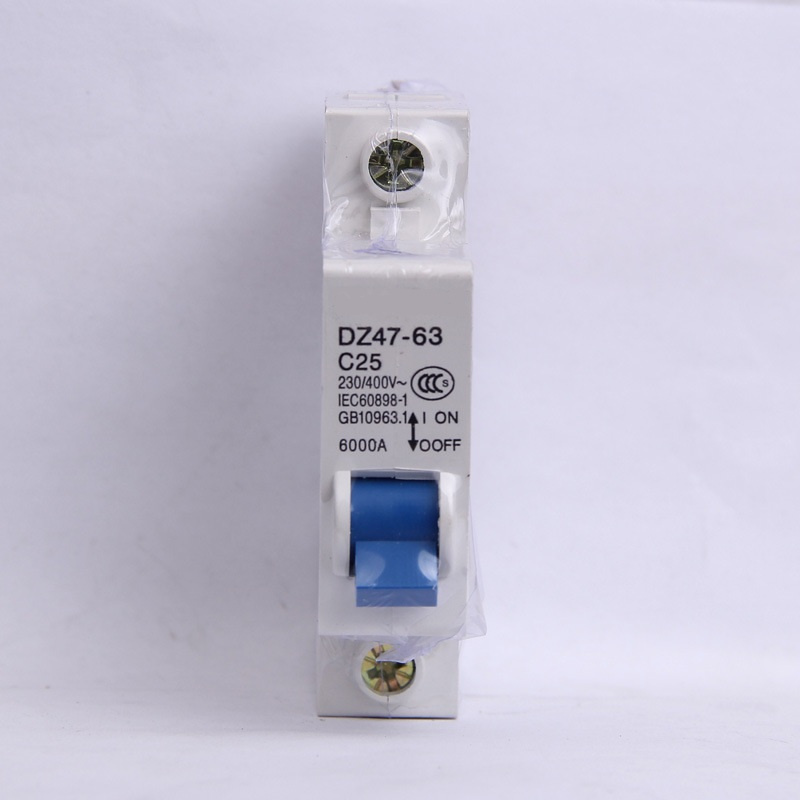

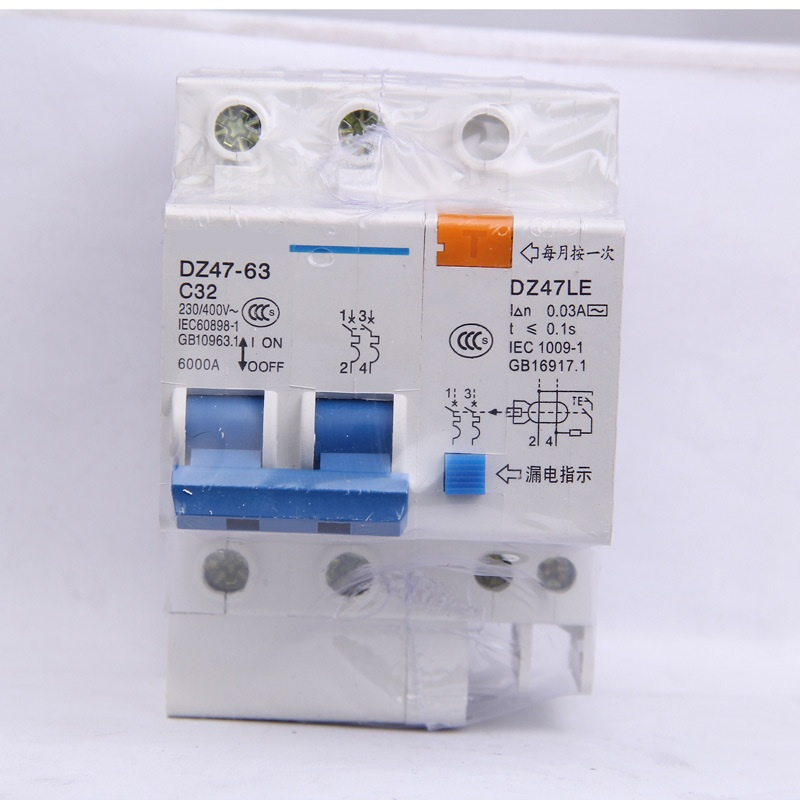

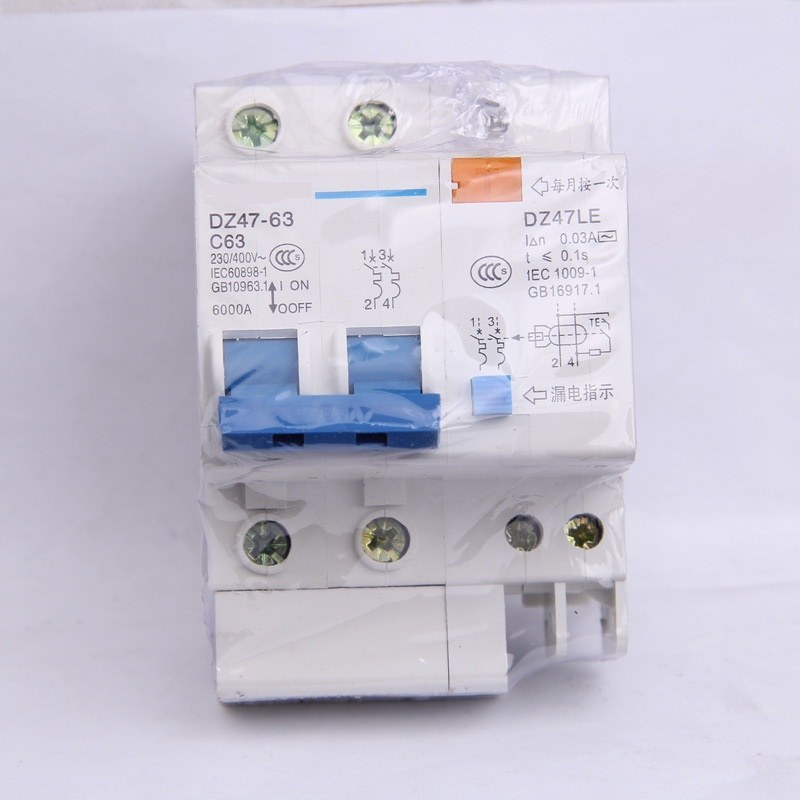

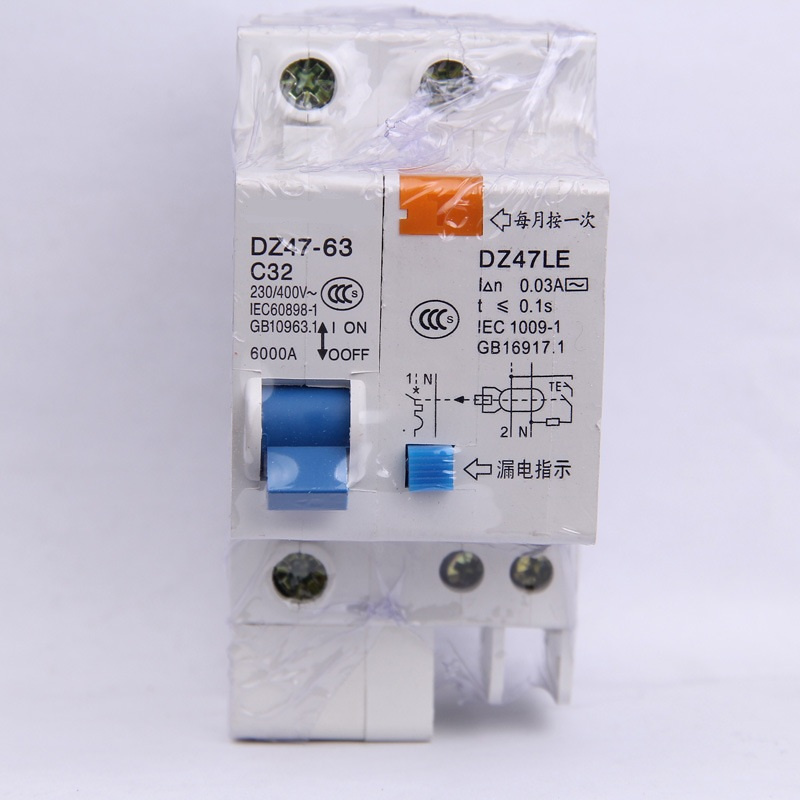

Factory Best Prices for Dz47-63 1p 2p 3p 1 Pole Earth Leakage Circuit Breaker

Name: Factory Best Prices for Dz47-63 1p 2p 3p 1 Pole Earth Leakage Circuit Breaker
Brand: all-electronics-online.com
SKU: 728139222
Availability: InStock
Rating: 4.5 (54 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47-63
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CCC

Product Description

Rated Voltage(V)	230/400V(1P), 400V(2P,3P,4P)
Rated Current (A)	1,2,3,4,5,6,10,15,16,20,25,32,40,50,60,63
Pole No	1p,2p,3p,4p
Tripping Curve	C,D
Tightening torque(N.m)	2.0
Handle color	Customer Design
Mechanical Life	20000
Electrical Life	8000
Place of Origin	Jiangsu ,China (Mainland)
Circumstance Temperature	-5ºC~+40ºC
Storage Temperation	-25ºC~+70ºC
Connection	From Top And Bottom
Pollution Degree	2
Certificate	CE/ISO9001/IEC/SAA/CCC
service	OEM /ODM
Protection Degree	IP20
Pressure resistance 1 minute	2kv

Packaging & Shipping
Package Details:
1.Product Net weight :100g/pole
2.Packing quantity& Weight :12 pole /box, 20 box/carton, 240 pole/carton .
3.N.W: 25.5 KG/carton
4.G.W:26.5 KG/carton
5.Packing Measurement:inner box 22.5×9×8 cm ,Carton 45×23.5×33.5 cm ( ie 0.036 cbm)
6.20 foot container (26 cbm): 17,2800 pole ,720 cartons
7.40 foot container (54 cbm): 36,0000 pole, 1500 cartons

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
