Factory Customizable Digital Temperature Controller

Prod Model:	JD-109
Application:	Widely
Silk Print:	Available
Usage:	Refrigeration&HVAC
Sensor:	Ntc
Color:	Grey and Orange
Function1:	Deforst
Function2:	Compressor
Function3:	Fan
Product Size:	75mm*34.5mm*85mm
Hole Size:	71mm*29mm

Product Description

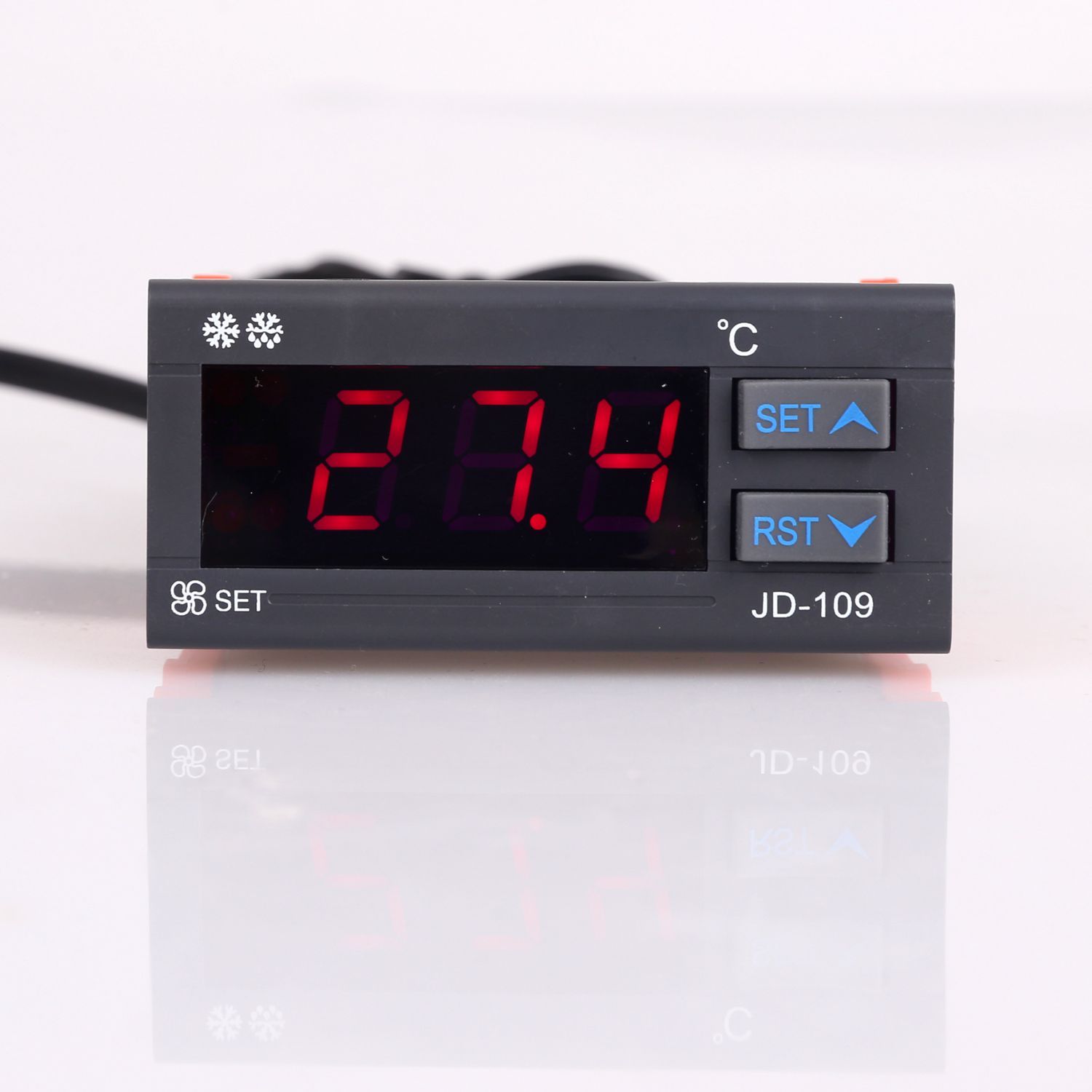

Factory customizable digital temperature controller JD-109

Product features:
1.Multi-control mode among refrigeration,defrost and fan.
2.User menu and administrator menu can be set separately.Not only converient for user operation,
but also left enough space for the adjustment of high-level management
3.Differential control mode,and the resolution of temperature display is 0.1
4.Multi-protection and alarm mode optional
5.CORYKEY function(optional)
Technical parameters:
1.Temperature measuring and controlling rang:-50~50ºC
2.Power supply:220VAC 50Hz
3.Power consumption:<5W
4.Ambient temperature:0~60ºC
5.Relative humidity:20%-85%(No condensate)
6.Accuracy:±1ºC
7.Relay capacity of compressor:8A/220VAC
8.Relay capacity of alarm and defrost:8A/220VAC
9.Digital display:Three-digit LED+Minus digit+Status indicator light
Installation size:
1.Product size:75×34.5×85(mm)
2.Installation hole size:71×29(mm)


Model	how many in	product size(mm)	Details(goods information)
STC-109	100	75*34.5*85	1.Measurement and control temperature range: -50 ºC~ 120 ºC
			2.Mounting holes size: 71*29mm
			3.Relative humidity: no more than 85% (condensation)
			4.Power supply voltage: 220 vac±10% 50/60 hz
			5. Refrigeration, frost, fan relay capacity: 8 a / 250 v
			6.Output contact capacity: 8 A / 220 VAC
			7.Resolution: 0.1 ºC
			8.Accuracy:±1ºC
			9.Sensor types: NTC

Company Information:

For over 50 years, XUZHOU SANGE AUTOMATIC CONTROL EQUIPMENT CO.,LTD has specialized in designing and manufacturing temperature controllers, temperature control systems, and temperature sensors. We sell a standard line of products as well as provide custom design services. All of our products are developed and designed at our state-of-the-art manufacturing facility inXuzou, Jiangsu, China.




Shipping terms:
1) Sample time:3-5days(without LOGO printing),5-7days(with LOGO printing)
2) Production time:15-25days(Depends on the Qty) after advanced payment received

QC:
All digital thermometer must have been inspected 5 times before delivery
1) Checking the raw material after they arrived our factory
2) Checking all the details while the production line operated
3) Checking the goods after they are finished
4) Checking all the goods after they are packed

We can create a custom product specifically for you.
