| Prod Model: |
EVC07EE-H |
| Rated Voltage: |
AC 450/750V, DC 1000V |
| Application Scope: |
Used in Electric Vehicle Charging Equipments |
| Copper Type: |
Tinned Copper or Annealed Copper |
| Burning Test: |
Good Performance of Fire Retardant |
| Conformity Standard: |
Comply with EU RoHS Standard |
| Cable Flexibility: |
Flexible |
| Jacket Color: |
as Per Customer's Requirement |
| Conductor Class: |
IEC 60228 Class 6 Conductor |
| Operating Ambinent Temperature: |
-25degree to 50 Degree |
| Item Name: |
Superflex New Energy EV Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Industry, Charging Equipment |
| Conductor Material: |
Copper |
| Certification: |
TUV, PSE, SAA, IEC |
| Sheath Material: |
Environmental TPE |
| Insulation Material: |
Environmental TPE |
| Material Shape: |
Round Cable |
| Range Of Application: |
Cold-Resistant, Wear Resistant, Oil-Resistant |
| Brand: |
Jiukai, OEM |

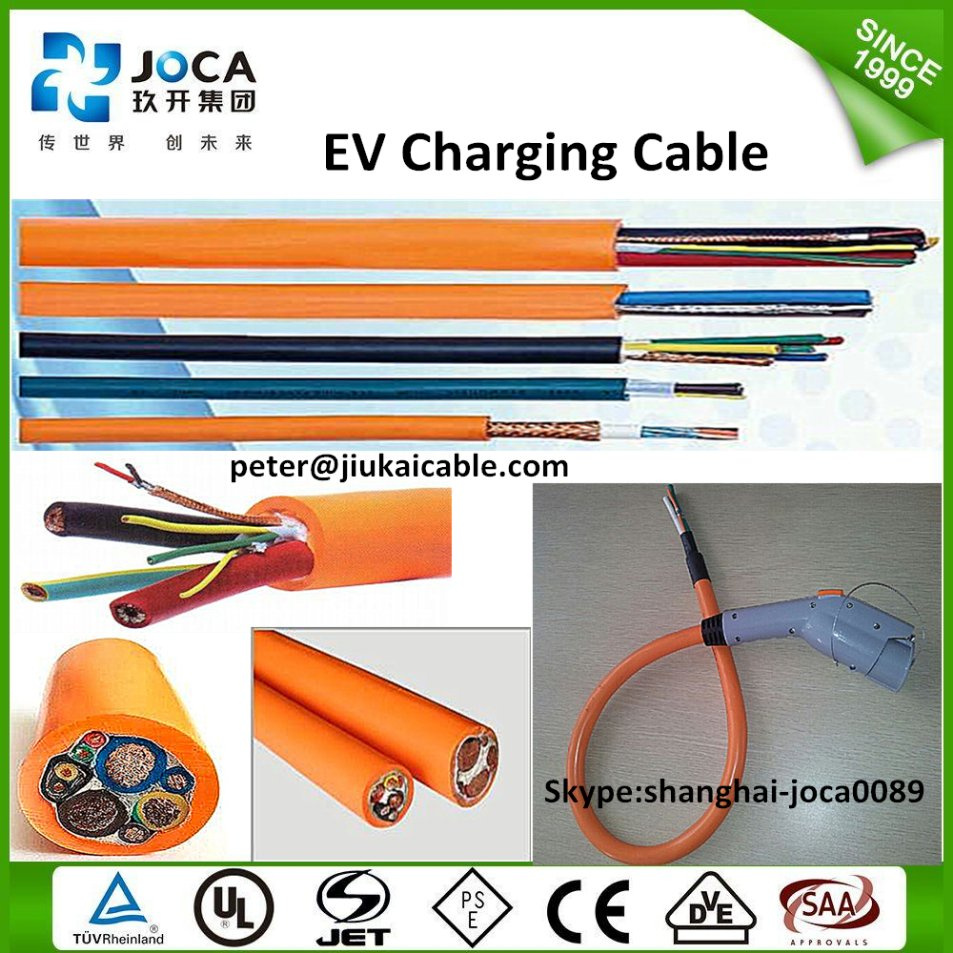

Product Description
Production DescriptionFactory Customized superflex new energy EV Cable

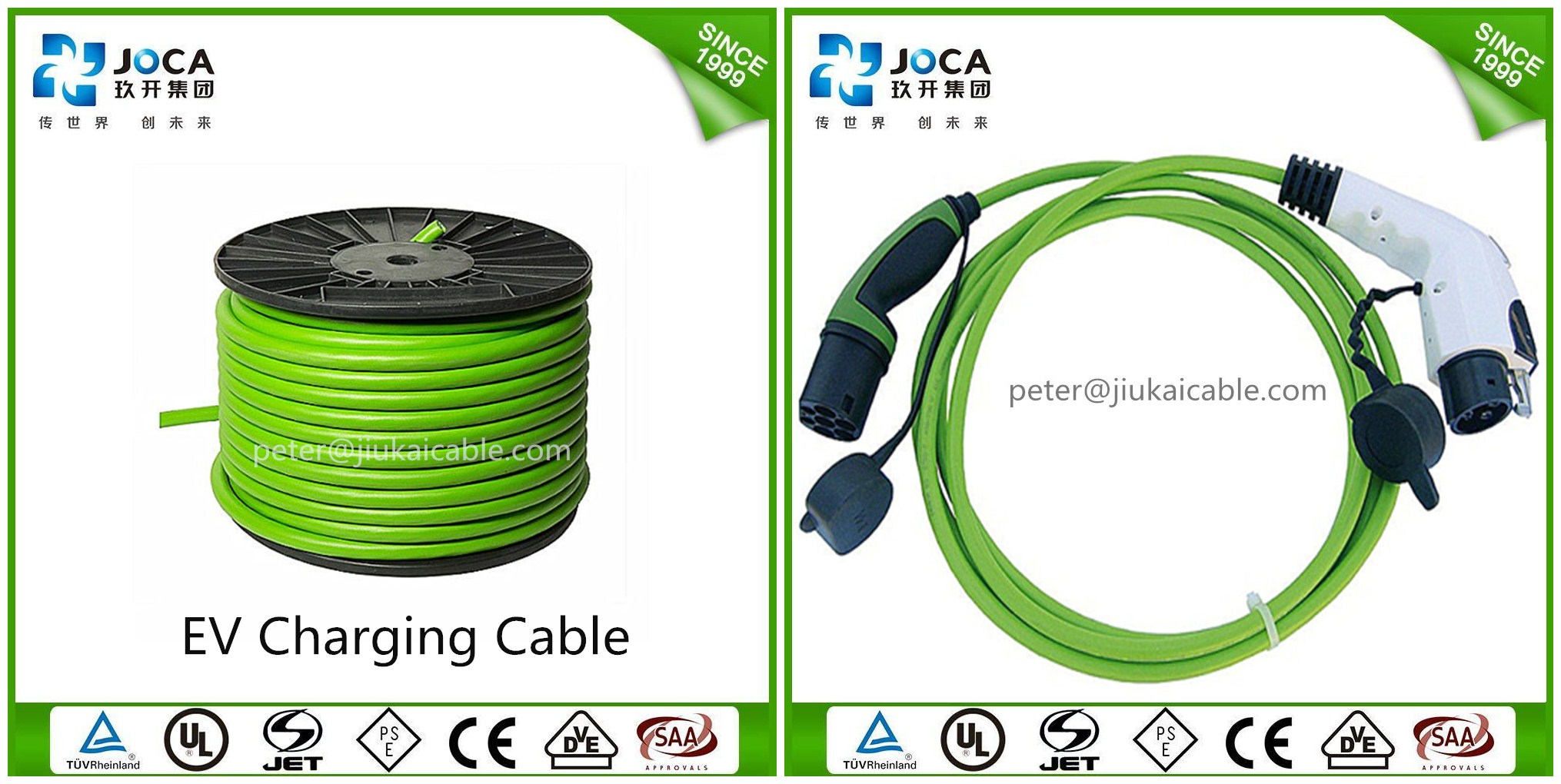

Production ApplicationUsed in electric vehicle charging equipments or charging ports, vehicle charge and discharge warning and control system with charging. saturation, security warning control signal transmission function.
1.Operating ambinent temperature: -25ºC~50ºC, max cable temperature 70ºC.
2.Rated Voltage: AC 450/750V, DC 1000V.
3.Allowable short circuit the temperature: 200ºC in 5seconds.
4.Insulation and sheath material is halogen-free thermoplastic elastomer with perfect flexibility, complied with EU RoSH standard.
5.Resistant to cold, wear, oil, acid&alkali, water and UV.6.Resistant to load stress&thermal stress.7.Pass single core vertical burning test (2PfG 1908), good performance of fire retardant.
Product Advantage:
1.Perfect flexibility, mini bending radius 5xOD(Cable nominal diameter), easy installation and usage.
2.High performance of load stress&thermal stress, pass 2PfG 1908 vehicular load test, high temperature and pressure test, crack-resistant test.
3.Good oil-resistant property(Resistant to mineral oil, fuel oil and gasoline).
4.Good environmental resistance
:Pass 2PfG 1908 UV-resistant test.
5.Perfect low-temperature toughness
:Pass 2PfG 1908 -35ºC low-temperature bending test, -35ºC low-temperature extension measurement test, -25ºC low-temperature impact test.
Product Material:1.Conductor: Tinned copper or non-tinned flexible stranded annealed copper(IEC 60228 Class 6 conductor).
2.Insulation: 70ºC environmental thermoplastic elastomer TPE.
3.Sheath: 70ºC environmental thermoplastic elastomer TPE.
Specification&Parameters of superflex new energy EV CableEVC07EE-H 450/750V AC 1000V DC
Model |
Size (N*mm2) |
Conductor Structure (N*mm) | Insulation Thickness (mm) |
Sheath Thickness (mm) |
Min. OD (mm) |
Max. OD (mm) |
| EVC07EE-H | 2×1.0 | 56/0.15 | 0.8 | 1.3 | 7.5 | 10.0 |
| EVC07EE-H | 2×1.5 | 84/0.15 | 0.8 | 1.5 | 8.5 | 11.0 |
| EVC07EE-H | 2×2.5 | 140/0.15 | 0.9 | 1.7 | 10.2 | 13.1 |
| EVC07EE-H | 2×4.0 | 224/0.15 | 1.0 | 1.8 | 11.8 | 15.1 |
| EVC07EE-H | 2×6.0 | 189/0.20 | 1.0 | 2.0 | 13.1 | 16.8 |
| EVC07EE-H | 2×10 | 313/0.20 | 1.2 | 3.1 | 17.7 | 22.6 |
| EVC07EE-H | 2×16 | 494/0.20 | 1.2 | 3.3 | 20.2 | 25.7 |
| EVC07EE-H | 2×25 | 779/0.20 | 1.2 | 3.6 | 24.3 | 30.7 |
| EVC07EE-H | 2×35 | 1110/0.20 | 1.4 | 4.0 | 27.5 | 34.8 |
| EVC07EE-H | 2×50 | 1554/0.20 | 1.6 | 4.3 | 31.8 | 40.1 |
| EVC07EE-H | 2×70 | 1406/0.25 | 1.6 | 4.5 | 35.5 | 44.8 |
Model |
Size (N*mm2) |
Conductor Structure (N*mm) | Insulation Thickness (mm) |
Sheath Thickness (mm) |
Min. OD (mm) |
Max. OD (mm) |
| EVC07EE-H | 3×1.0 | 56/0.15 | 0.8 | 1.4 | 8.3 | 10.7 |
| EVC07EE-H | 3×1.5 | 84/0.15 | 0.8 | 1.6 | 9.2 | 11.9 |
| EVC07EE-H | 3×2.5 | 140/0.15 | 0.9 | 1.8 | 10.9 | 14.0 |
| EVC07EE-H | 3×4.0 | 224/0.15 | 1.0 | 1.9 | 12.7 | 16.2 |
| EVC07EE-H | 3×6.0 | 189/0.20 | 1.0 | 2.1 | 14.1 | 18.0 |
| EVC07EE-H | 3×10 | 313/0.20 | 1.2 | 3.3 | 19.1 | 24.2 |
| EVC07EE-H | 3×16 | 494/0.20 | 1.2 | 3.5 | 21.8 | 27.6 |
| EVC07EE-H | 3×25 | 779/0.20 | 1.2 | 3.8 | 26.1 | 33.0 |
| EVC07EE-H | 3×35 | 1110/0.20 | 1.4 | 4.1 | 29.3 | 37.1 |
| EVC07EE-H | 3×50 | 1554/0.20 | 1.6 | 4.5 | 34.1 | 42.9 |
| EVC07EE-H | 3×70 | 1406/0.25 | 1.6 | 4.8 | 38.4 | 48.3 |
Model |
Size (N*mm2) |
Conductor Structure (N*mm) | Insulation Thickness (mm) |
Sheath Thickness (mm) |
Min. OD (mm) |
Max. OD (mm) |
| EVC07EE-H | 4×1.0 | 56/0.15 | 0.8 | 1.5 | 9.2 | 11.9 |
| EVC07EE-H | 4×1.5 | 84/0.15 | 0.8 | 1.7 | 10.2 | 13.1 |
| EVC07EE-H | 4×2.5 | 140/0.15 | 0.9 | 1.9 | 12.1 | 15.5 |
| EVC07EE-H | 4×4.0 | 224/0.15 | 1.0 | 2.0 | 14.0 | 17.9 |
| EVC07EE-H | 4×6.0 | 189/0.20 | 1.0 | 2.3 | 15.7 | 20.0 |
| EVC07EE-H | 4×10 | 313/0.20 | 1.2 | 3.4 | 20.9 | 26.5 |
| EVC07EE-H | 4×16 | 494/0.20 | 1.2 | 3.6 | 23.8 | 30.1 |
| EVC07EE-H | 4×25 | 779/0.20 | 1.2 | 4.1 | 28.9 | 36.6 |
| EVC07EE-H | 4×35 | 1110/0.20 | 1.4 | 4.4 | 32.5 | 41.1 |
| EVC07EE-H | 4×50 | 1554/0.20 | 1.6 | 4.8 | 37.7 | 47.5 |
| EVC07EE-H | 4×70 | 1406/0.25 | 1.6 | 5.2 | 42.7 | 54.0 |
Model |
Size (N*mm2) |
Conductor Structure (N*mm) | Insulation Thickness (mm) |
Sheath Thickness (mm) |
Min. OD (mm) |
Max. OD (mm) |
| EVC07EE-H | 5×1.0 | 56/0.15 | 0.8 | 1.6 | 10.2 | 13.1 |
| EVC07EE-H | 5×1.5 | 84/0.15 | 0.8 | 1.8 | 11.2 | 14.4 |
| EVC07EE-H | 5×2.5 | 140/0.15 | 0.9 | 2.0 | 13.3 | 17.0 |
| EVC07EE-H | 5×4.0 | 224/0.15 | 1.0 | 2.2 | 15.6 | 19.9 |
| EVC07EE-H | 5×6.0 | 189/0.20 | 1.0 | 2.5 | 17.5 | 22.2 |
| EVC07EE-H | 5×10 | 313/0.20 | 1.2 | 3.6 | 22.9 | 29.1 |
| EVC07EE-H | 5×16 | 494/0.20 | 1.2 | 3.9 | 26.4 | 33.3 |
| EVC07EE-H | 5×25 | 779/0.20 | 1.2 | 4.4 | 32.0 | 40.4 |
| EVC07EE-H | 5×35 | 1110/0.20 | 1.4 | 4.9 | 36.3 | 45.8 |
| EVC07EE-H | 5×50 | 1554/0.20 | 1.6 | 5.4 | 42.2 | 53.1 |
| EVC07EE-H | 5×70 | 1406/0.25 | 1.6 | 5.7 | 47.5 | 59.8 |
Group Profile JOCA holding group is an enterprise group,integrated research,manufacture&trade. The group has he group total capital RMB 250million&o occupied area 1800 thousand sqm including building area 1000 thousand sqm. The group has more than 800 sets nowadays domestic&foreign advanced cable equipment, yearly production capacity RMB 1.6 billion, 600 employees and nearly domestic& overseas representative offices or branch companies. Subsidiary company Shanghai Jiukai Wire&Cable Co.,Ltd, Jiukai Communication Technology(Shanghai)Co.,Ltd.&Wuxi City Qunxing Wire&Cable Co.,Ltd. are fully invested Wholly owned companies by JOCA group in cable, telecommunication&integrated general wiring industry.
With so many years' manufacturing experience , our cables are sold to America, Europe, Middle-east, Southeast Asia and Africa. And all our cables has already got the certificates of national or international professional testing organizations, such as China CCC certificate, US UL certificate, European Union CE certificate, German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Recontract And Trustworthy Enterprise", "Measurement Qualified Enterprises", "China Top Brand" and "China Cable Manufacturer TOP100".
Main Products1.Solar Cable2.IP67 MC4 Connector3.Elevator Cable4.TPS Cable5.Coxial Cable6.Flexible Power Cable 0.6/1kv7.CE Sheathed Cable8.UL&CE Standard WireAdvantages1.Large Scale Factory-Encolsed Company Information File.2.Complete Qualified Approvals.3.OEM, Quality is guaranteed.4.Wire&Cable with High Quality&Competitive Price.5.Import-Exported Operating Licence.6.Short Dlivery Time.Packing&Shipping of superflex new energy EV Cable
Our Service1. OEM Manufacturing welcome: Product, Package... 2. Sample order .3. We will reply you for your inquiry in 24 hours.4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solutions for you.FAQQ1. What is your terms of packing?A: Generally, we pack our goods in wooden pallet or wooden case. And we aslo can put your brand or LOGO on packaging after getting your authorization letters.Q2. What is your terms of payment?A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.Q3. What is your terms of delivery?A: EXW, FOB, CFR, CIF, DDU.Q4. How about your delivery time?A: Generally, it will take about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q5. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q6. What is your sample policy?A: We can supply free sample if we have ready parts in stock.Q7. Do you test all your goods before delivery?A: Yes, we have 100% test before deliveryQ8: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.Contact Us
Factory Customized superflex new energy EV Cable
...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."
----Alex Jones, G. M of Saudi Cable Wholesaler

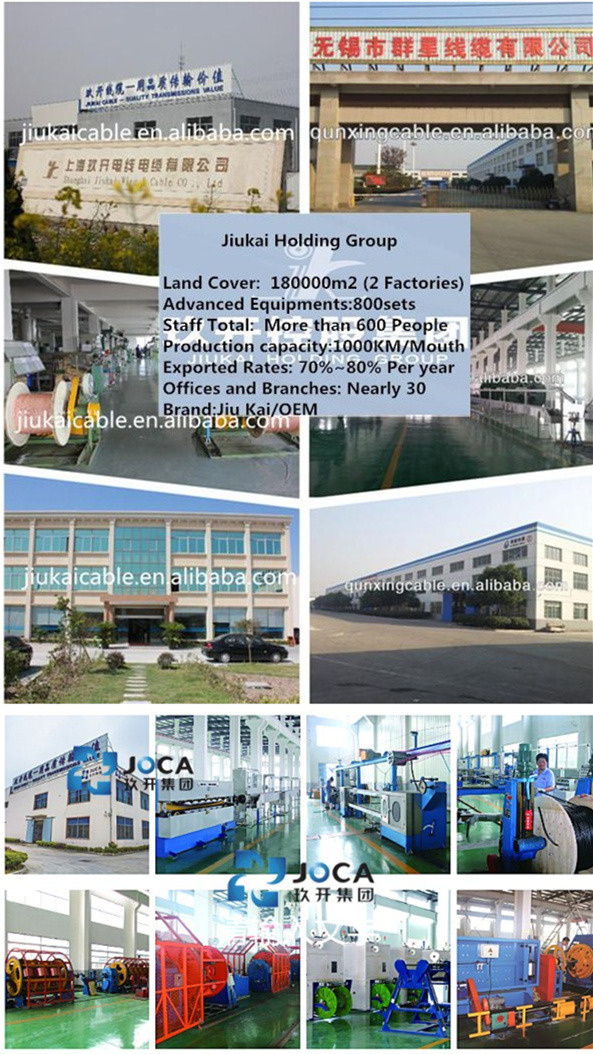

Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.

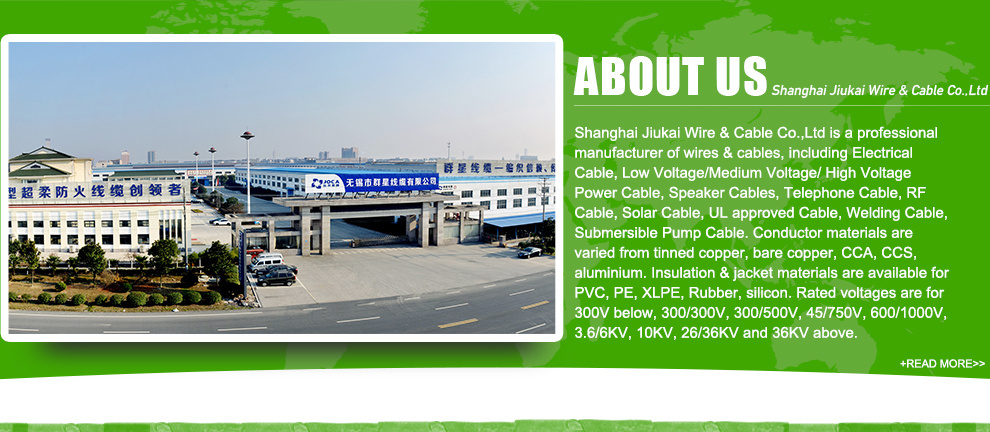

Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
