Factory Designed 12V 20ah LiFePO4 Battery Pack
| Price: |
US $ 111-120/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
Battery Packs |
| Electrolyte: |
Electrolyte |
Product Description

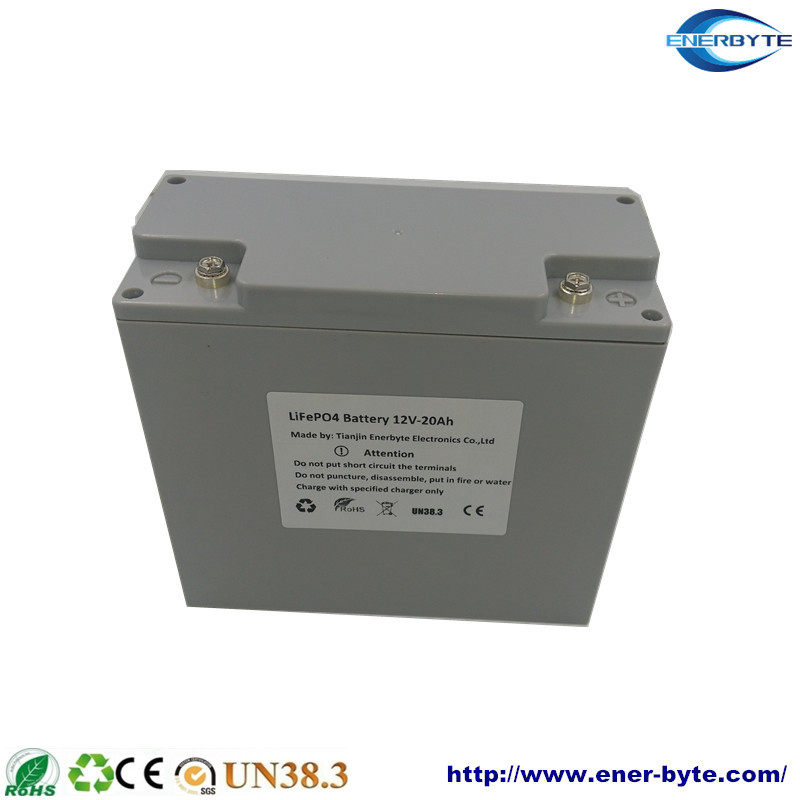

Factory designed 12V 20Ah LiFePO4 Battery Pack
Product DescriptionPackaging & Delivery
Packaging Detail: Carton
Delivery Detail: 25 days after confirming payment
Specifications
1.12V rechargeable lithium battery
2. More than 2000 cycle
3. We offer batteries with capacity higher than its actual capacity
Key Specifications:
High discharge emergency light 12V rechargeable lithium battery cell ( LiFePO4 )
We offer full capacity battery than its actual capacity ( For example, when you ask for 10AH battery, we may offer 10.5AH or 10.8AH battery).
Long lifespan, 6 to 7 years, 4 times of lead-acid battery
Safe, high-power and eco-friendly, have no heavy metal and corrosive fluid
Small in size, lightweight and with good performance
Our products have obtained ISO 9001: 2000, CE, RoHS
We offers battery pack + BMS + charger as a whole solution
Engineers would adjust BMS and charger as a whole system, customers just need to enjoy the convenience of usage
1/3 weight of SLA battery;
Can accept fast charging, 2 to 3 hours can be fully charged
Batteries can also accept large charging current as energy regeneration by EV braking or reducing speed
Our LiFePO4 battery is mainly made of prismatic cell
Prismatic cells are easily to connect, carry and replace
Most importantly, they are very safe
Cycle life --- more than 2000 cycles
From the following chart, we can see after 2000 cycles, the battery still remains more than 80% of the capacity:
Notice:
1. When the voltage between the two electrodes is over 36V, the safe voltage of human beings, do not contact the positive and negative terminals of battery pack with body.
2. It is strictly forbidden to immerse the battery in water or seawater, keep the battery in a cool and dry surrounding if it stands by.
3. Do not expose in the sun.
4. Do not expose in the rain or snow.
5. Do not use or leave the battery near a heat source as fire or heater.
6. Use the battery charger specifically for that purpose when recharging.
7. Do not reverse the positive and negative terminals.
8. Do not plug in the battery electrodes to an electrical outlet.
9. Do not discard the battery in fire or a heater.
10. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
11. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
12. Do not strike, trample or throw the battery.
13. Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
14. Do not use the battery in a location where static electricity and magnetic field is great, otherwise, the safety devices may be damaged, causing hidden trouble of safety.
15. If the battery gives off strange odor, generates heat, becomes discolored or deformed, or in any way appear abnormal during use, recharging or storage, immediately remove it from the device or battery charger and stop using it.
16. In case the battery terminals are dirty, clean the terminals with a dry cloth before use. Otherwise poor performance may occur due to the poor connection with the instrument.
17. Do not expose to temperature above 60° C or heater;
18. Do not use the battery pack connected in series or parallel;
18. Do not use the battery pack connected in series or parallel; LiFePO4 Battery Pack 12V 20Ah| Battery Pack Characteristics |
| Model | TDFP-12V-20Ah |
| Capacity(0.2C5A) | 20Ah |
| Nominal Voltage | 12.8V |
| Max. Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V (recommended) |
| Working Voltage Scope | 10V~14.6V |
| Max. Charge Current | 10A |
| Continuous Discharge current | 20A |
| Max.Discharge current | 60A 3Sec |
| PCM control Discharge current | 20A (continuous) |
| Weight (Approx.) | 2.8Kgs |
| Battery Dimensions | 168x80x180mm(HXWXL) |
Impedance
(Max, at 1000Hz) | Single Cell≤25 mΩ |
| Cycle Life(80DOD%) | >2000 Times |
| Self-discharge Rate | ≤3%(month) |
Charge Method
(CC/CV) | Standard | 50A×4hrs |
| Quick | 10A×2hrs |
Operating Temperature
| Charge | 0ºC~45ºC;32oF~113oF |
| Discharge | -20ºC~60ºC;-4oF~149oF |
Battery ApplicationLiFePO4 battery packs can used for Solar & UPS backup, power bank, E-bike, E-motorbike, E-golf car, E-wheelchair and E-bus, etc.
