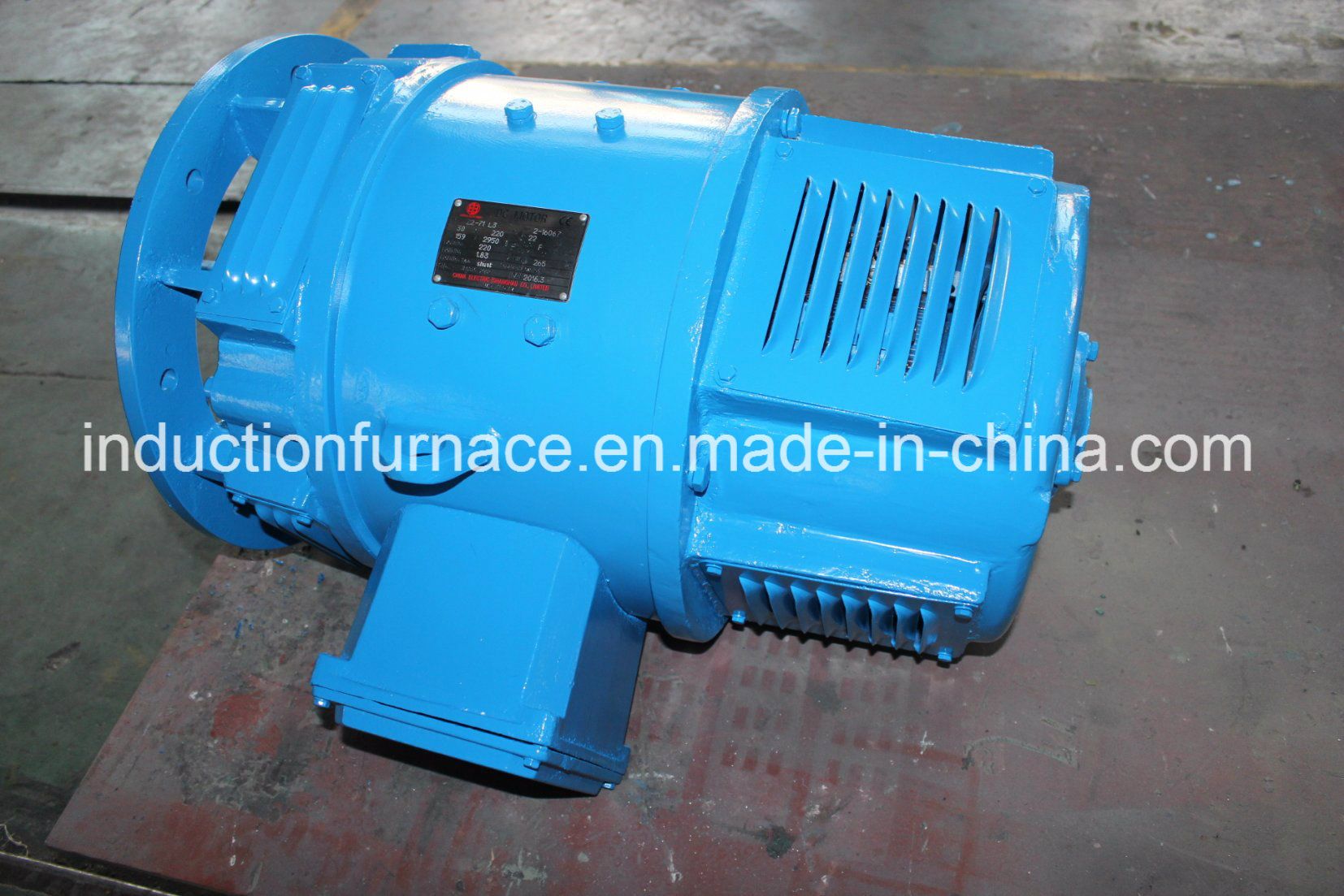

Factory Direct High Torque Electric Brushless DC Motor

Prod Model:	Z2C
After-Sales Service:	Engineers Available to Service Machinery Overseas
Phase:	Three-Phase
Usage:	Boat, Car, Electric Bicycle, Fan, Home Appliance
Efficiency:	Ie 1
Construction:	Shunt Wound
Protection Rating:	IP21, IP21s, IP23 or Else
Duty:	S1 Continuous
Mounting:	B3,B35,Imv1 Et
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	Z2c
Brand:	China Electric

Product Description

                     Factory direct high torque electric brushless Dc Motor

Product Description
 Z2 series motor generally for the industrial DC motor, which are suitable for constant power speed range of not more than 1: 2, electric driving ability of overload not greater than 1.5 times the rated torque,  also can be used for metal cutting machine tools, paper making, dyeing and weaving , printing, cement and other industries. Generator can be used for power supply, lighting or other constant voltage power supply, voltage-regulated generator can be applied to the charging and floating charging purposes of large type storage battery.

Otherwise, for other different needs, Z2 series DC motors are derived with other some models.
1. ZT2 wide speed regulation range:constant power speed range magnetic shunt motor is 1: 3 and 1: 4, the constant-voltage power supply and in need of a wide speed range provides a convenient occasion. To reduce ventilation losses at high speed, on the 7th frame ZT2 more general form are forced ventilation.
2. ZT2 special voltage motors: rated voltage of 180V, 340V and 440V are suitable for single-phase and three-phase thyristor power supply. Rated voltage of 275V and 460V generator can be used to drag mine traction power and other needs special voltage of the power supply.
3. ZO2 enclosed motor: totally enclosed, for special, we need to dust working environment.
4. According to the special needs, Z2 series motor and generator can be derived with compensation winding, in which case the overload multiples increased to about 2.5 times the rated torque, the armature circuit time constant can reduce, for high-power servo system or require more large overload torque applications. Currently No. 8-11 frame has been part of the specifications, if necessary, continue to develop.
Above four special specifications, overall dimensions, inertia, weight consistent with Z2 of the same base.


Performance
electromotor power range:0.4Kw~200Kw
electromotor rated voltage:110V and 220V
electromotor rated running speed):3000r/min, 1500r/min, 1000r/min, 750r/min and 600r/min
electrical machine power range:0.6kW~185kW
electrical machine rated voltage:115V and 230V
electrical machine rated running speed):2850r/min and 1450r/min
On the following conditions, this series motor can be used continuously
(1) Altitude above sea level maximal 1,000m.
(2) Cooling air temperature maximal 40C.
Prarmeters


serial number	code No.	installation structure	applicable motor type
1	IMB3	horizontal, motor with leg	Z2-11~Z2-112
2	IMB34	horizontal, motor with leg, end shield with small flange	Z2-11~Z2-32
3	IMB35	horizontal, motor with leg, end shield with big flange	Z2-41~Z2-82
4	IMV14	vertical, motor with leg, end shield with small flange	Z2-11~Z2-32
5	IMV15	vertical, motor with leg, end shield with big flange	Z2-41~Z2-82
6	IMB14	horizontal, motor without leg, end shield with small flange	Z2-11~Z2-32
7	IMB5	horizontal, motor without leg, end shield with big flange	Z2-41~Z2-62
8	IMV18	vertical, motor without leg, end shield with small flange, shaft extension downwards	Z2-11~Z2-32
9	IMV1	vertical, motor without leg, end shield with big flange, shaft extension downwards	Z2-41~Z2-112
10	IMV19	vertical, motor without leg, end shield with small flange, shaft extension upwards	Z2-11~Z2-32
11	IMV3	vertical, motor without leg, end shield with big flange, shaft extension upwards	Z2-42~Z2-62



Frame	vertical		horizontal
	drive-end	commutator	drive-end	commutator
Z2-1	6302	6302	6302	6302
Z2-2	6304	6304	6304	6304
Z2-3	6305	6305	6305	6305
Z2-4	6307	6307	6307	6307
Z2-5	6309	6309	6309	6309
Z2-6	6309	6309	6309	6309
Z2-7	6310	6309	6310	7309ACJ
Z2-8	6311	6310	6311	7310ACJ
Z2-9	6314	6313	6314	7313ACJ
Z2-10	6317	6315	6317	7315ACJ
Z2-11	6320	6318	6320	7318ACJ
