| Prod Model: |
GS-HC03 |
| Size: |
3000*1500 |
| Laser Source Medium: |
Fiber |
| Laser Power: |
500W~1500W |
| Z Axle Stroke: |
100 mm |
| Max Positioning Speed: |
120m/Min |
| Max Height Of Feeding Material: |
More Than 120mm |
| Laser Wavelength: |
1070nm |
| Repeated Positioning Accuracy Of X, Y A: |
±0.01 mm |
| Positioning Accuracy Of X, Y And Z Axles: |
±0.03 mm |
Product Description

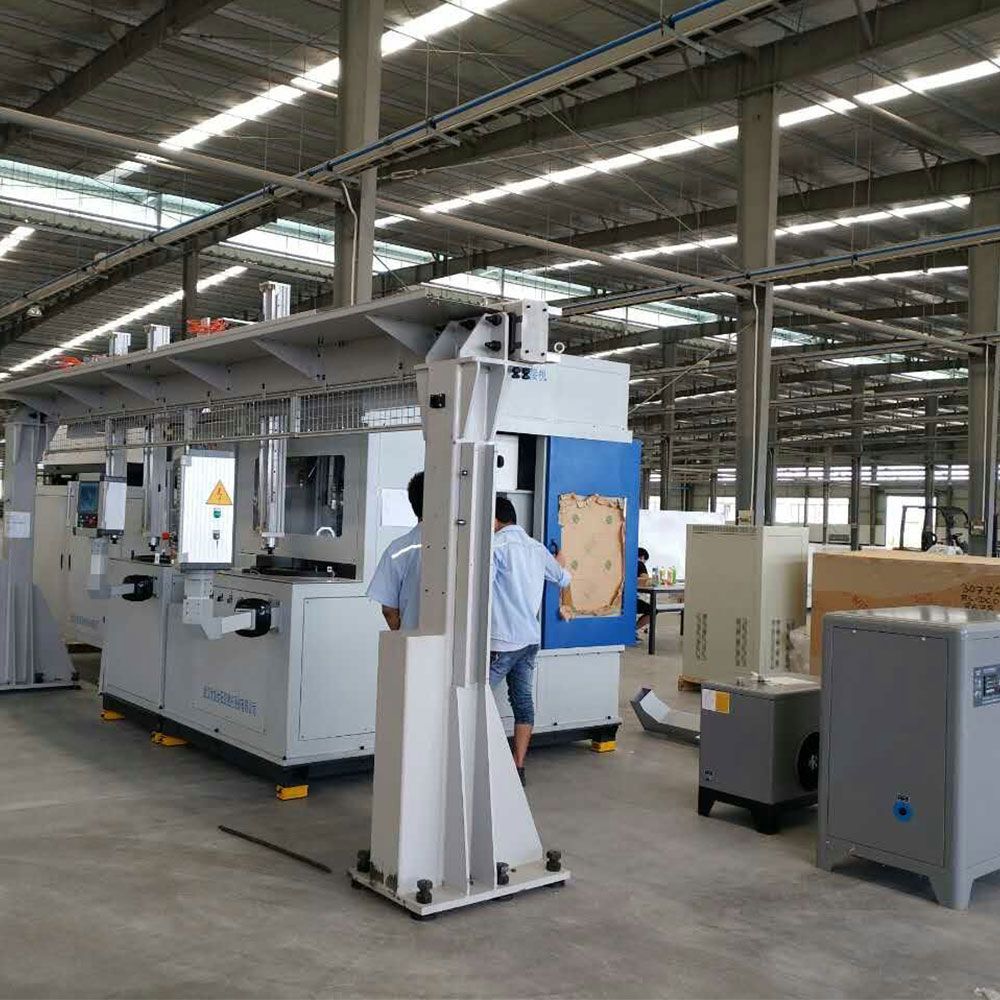

Factory Direct Laser Welding Machine, Automatic Laser Welding Machine
Han's Laser - Asia's first, the world's second largest laser company
1.Han's laser company office building
2.Companies listed in 2004, Shenzhen code: 002008.
3.By the end of 2014, the market value of Han's laser was ranked second among the world's laser listed companies.
4.Sales of nearly 6 billion in 2015.
5.Han's GOLDENSKY is holding subsidiary of the Han's laser.
We are the top high power laser expert in China
1.Core enterprise China Optical Valley Wuhan.
2.Was established in 1998, the registered capital of 80 million yuan, the total assets of 150 million yuan.
3.Han's GOLDENSKY Park first phase of construction 20,000 square meters.
4.3 products were included in the national Torch Program key projects.
5.Commitment to the national, provincial and municipal 30 science and technology projects.
6.2007 was included in the large-scale laser equipment system integration and new laser manufacturing field "focus on supporting enterprises of Wuhan's 11th five-year Plan.
Company honor

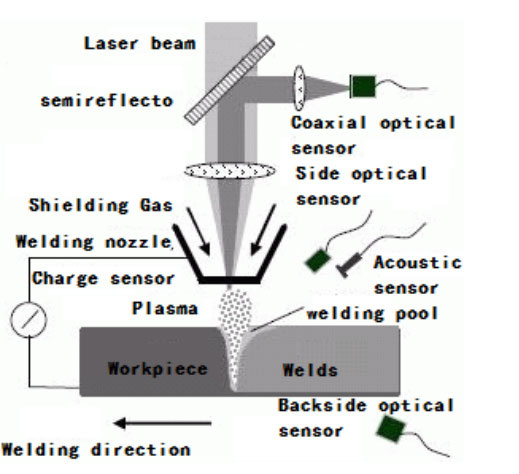

Introduction to Laser Welding Principle
1.The principle of laser welding is to focus the laser beam to a smaller diameter (usually Φ0.15 ~ 0.3),and use the energy of the high energy beam to dissolve the need to weld the metal, to achieve the effect of laser deep soldering.
2.Laser welding requires welding of metal stitching and the corresponding laser beam mode, otherwise the welding quality is poor.
Advantages of laser welding
1.Large energy density,Short action time,Small heat affected zone,and the workpiece has little thermal deformation.
2.High energy melting contact surface, welded joint strength is higher than substrate.
3.Fast welding speed,Easy to realize automatic production.
4.The laser beam can be changed with a mirror,No contact weldment,Can achieve a certain distance welding.
5.The insulating material can be welded,Welding of dissimilar materials is easy to realize.
6.Green processing, no pollution.
7.Comprehensive economic benefit is high.
Fiber laser welding process parameters
| Welding depth(mm) | 0.5 | 0.8 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 |
| Welding power(kw) | 0.5 | 0.5 | 1.0 | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 2.0 | 2.5 | 3.0 | 2.5 | 3.0 | 3.0 |
| Welding speed(m/min) | 0.8 | 0.5 | 1.3 | 2.5 | 4.5 | 2.0 | 3.0 | 3.2 | 1.6 | 2.0 | 2.4 | 2.0 | 2.4 | 1 |
| Note The welding of stainless steel materials, weld the mechanical indicators are achieved or higher than the base metal properties, and get the weld shape beautiful, no macroscopic defects stomata, cracks appear. |
HAN'SGS-HC03
HAN'SGS-HC03 laser welding machine mainly consists of high power Rofin- DC030 / DC035 laser source, chiller unit, processing machine, automatic preheating machine, loading and unloading manipulator, CNC system and so on.The control system can realize the integrated control of the whole system such as machine tool, laser, water cooling unit and protective gas unit. The parameter adjustment is convenient, centralized display and strong anti-interference ability.The system hardware and software configuration is reasonable, stable and reliable operation, durable, equipment, laser protection to meet the safety requirements of the operator's life.This gear laser welding machine for the automotive gearbox double gear, double gear shaft laser welding special equipment.
Welding machine main technical parameters
X axis travel: 300mm (servo motor drive).
Y-axis travel: 400mm (servo motor drive).
Z axis travel: 175mm (servo motor drive).
W-axis travel: 100mm (servo motor drive).
U-axis Rotating speed: 7.5 ~ 37.5rpm (i = 80) (servo motor drive).
X, Y, Z axis: positioning accuracy ≥ ± 0.02mm.
Repeat positioning accuracy ≥ ± 0.01 mm.
Maximum operating speed: 5 m / min.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
