Factory Direct Sale 11kv Voltage Instrument Transformer PT

Name: Factory Direct Sale 11kv Voltage Instrument Transformer PT
Brand: all-electronics-online.com
SKU: 722427262
Availability: InStock
Rating: 4.6 (117 reviews)

Price:	US $ 78/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GFJDZ0227-10Q
Keyword:	11kv Voltage Transformer PT
Model:	11kv PT Instrument Transformer Vt
Gfjdz0227-10q:	11kv Vt PT Voltage Transformer
Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated Voltage:	10kv, 6kv
Rated Load:	25va
Rated Frequency:	50Hz or 60Hz
Material:	Epoxy Resin
Weight (Kg):	28
Color:	Red
Application:	Instrument
Type:	Voltage Transformer
Phase:	Single

Product Description

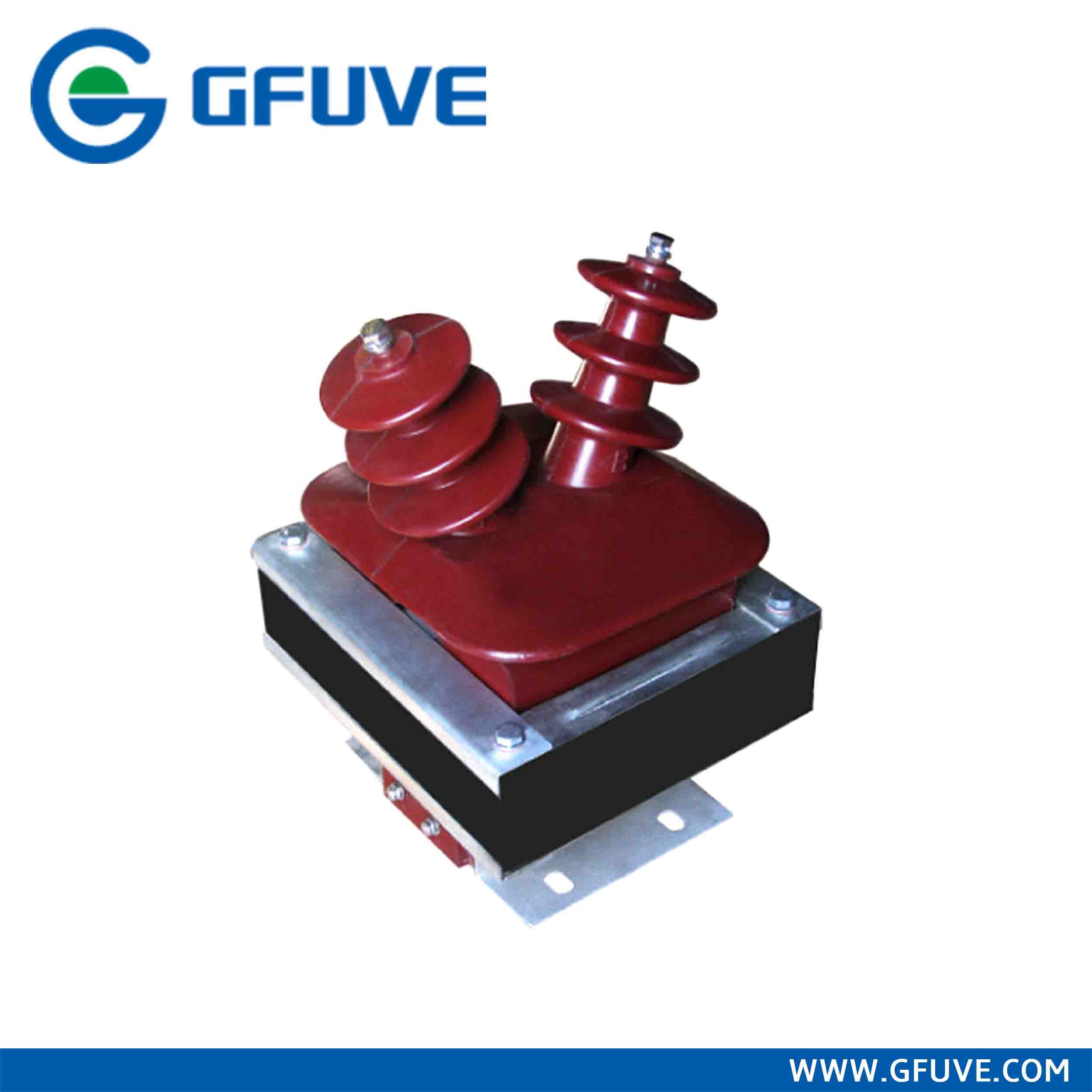

Factory direct sale 11KV voltage instrument transformer pt
The Model GFJDZ0929-10 11KV dry type voltage instrument transformer is single-phase multi-winding whole sealing epoxy pouring product. It is installed in indoor medium voltage switchgear for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. Design in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
Parameters

Technical parameters
Standards	IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated Voltage	10KV, 6KV
Rated load	≤25VA
Rated frequency	50Hz or 60Hz
Cosø	0.8 (lag)
Phase number	Single
Rated insulation level	12/42/75KV, 7.2/32/60KV
Class of pollution	II
Mechanical parameters
Material	Epoxy resin
Weight (kg)	28
Operating conditions
Operating temperature	-25°C to +55°C
Daily average temp	<+40°C
Storage temperature	-40°C to +70°C
Altitude	<1000 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

Technical parameters

Model	Rated Voltage Ratio(KV)	Accuracy class combination	Rated Output (VA)	Limiting Therminal Output(VA)
GFJDZ0929-10	10/0.1/0.1	0.2/0.2 0.2/0.5 0.5/0.5	20/20 20/20 25/25	400
GFJDZ0929-6	6/0.1/0.1	0.2/0.2 0.2/0.5 0.5/0.5	20/20 20/20 25/25	400
