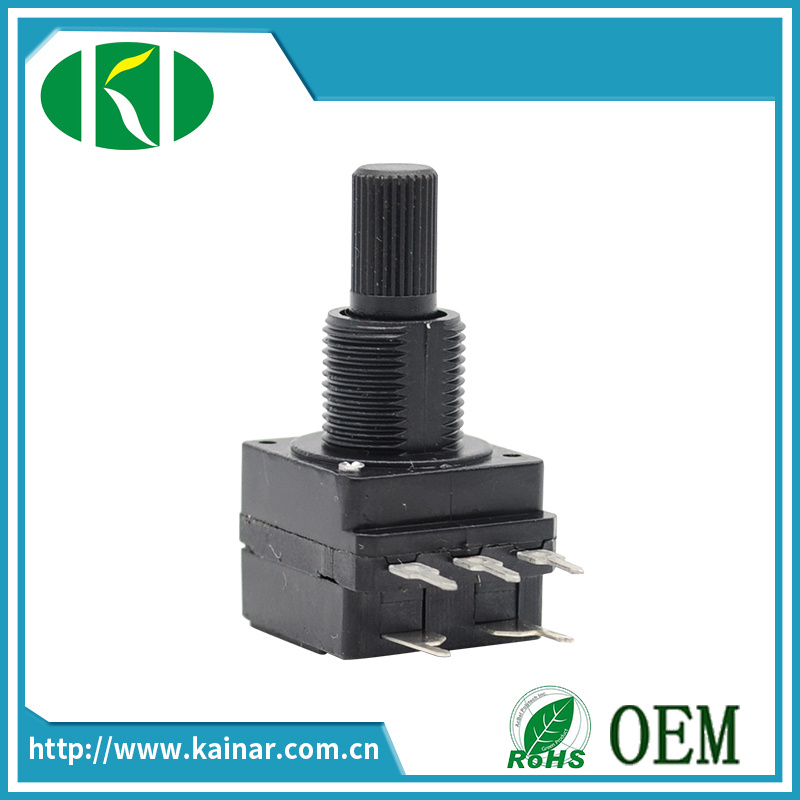

Factory Direct Sale 16mm Rotary Potentiometer Insulated Shaft with Switch

Name: Factory Direct Sale 16mm Rotary Potentiometer Insulated Shaft with Switch
Brand: all-electronics-online.com
SKU: 821188645
Availability: InStock
Rating: 4.4 (47 reviews)

Price:	US $ 0.55/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WH16S-2
Operating Force:	20-200GF.Cm
Power Rating:	0.125W 0.06W
Withstand Voltage:	200V 150V
Rotation Life:	10000cycles
Shaft Stopper Strength:	10000cycles
Rotational Noise:	≤47mv
Insulation Resistance:	DC250V 100mohm Min
Brand:	Kainar

Product Description

ELECTRICAL CHARACTERISTICS

Item	Item	Specification
1.1	Resistance value and tolerance of resistance	K ±20%
1.2	Load power	0.1 W
1.3	Rotational noise	47mV max
1.4	Insulation Resistance	>100MΩ At 500V DC
1.5	Withstanding Voltage	>1Minute At 500V AC
1.6	Max rated voltage	100V AC
1.7	Tracking error
1.8	Residual resistance	R1,2<10Ω; R2,3<10Ω
1.9	Switch contact resistance
1.10	Switch power

MECHANICAL CHARACTERISTICS

2.1	Dimensions	Refer to the separate product drawing
2.2	Total rotation angle	300±5°
2.3	Rotational Torque	20~200gf
2.4	Switch working angle
2.5	Switch torque
2.6	Shaft Push& Pull Strength	≥8kgf
2.7	Click slip-out force
2.8	Shaft Wobble (mm p-p)	≤0.3mm
2.9	Shaft Stop Strength	>5kg.cm

DURABILITY CHARACTERISTICS

3.1	Rotating life	10,000 cycles
3.2	Storage Temperature Range	-30ºC~+80ºC
3.3	Operation Temperature Range	-20ºC~+70ºC
3.4	Soldering Heat Characteristic	260°C/2.5±0.5S

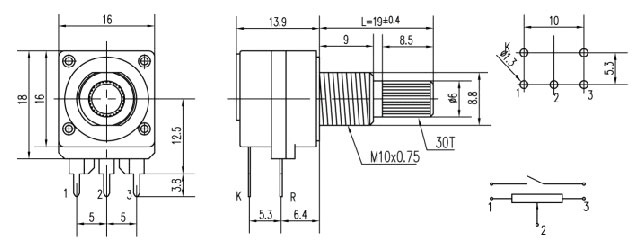

OUTLINE DRAWING

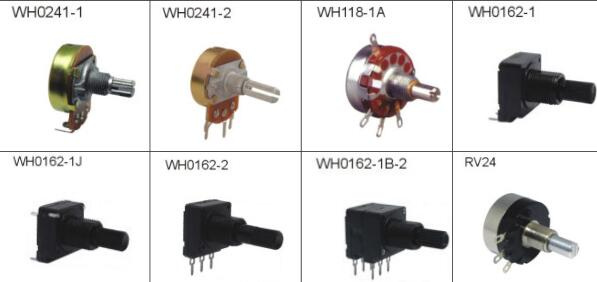

Related Products

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
