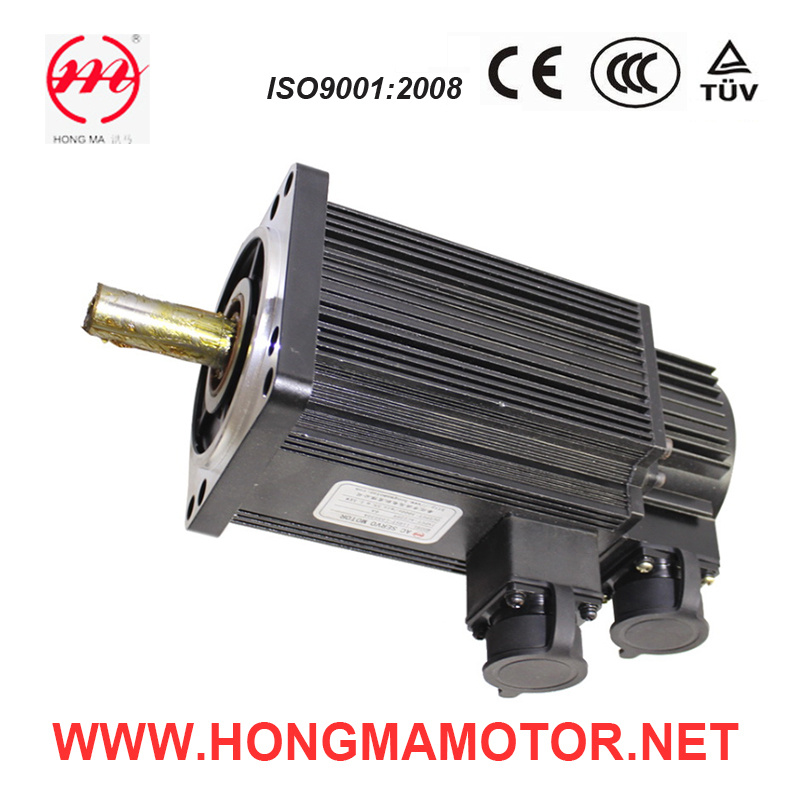

| Prod Model: |
110ST-060020A |
| Frame Size Range: |
110 |
| Voltage Rate: |
220V |
| Power Range: |
1.2kw |
| Frequency: |
50Hz, 60Hz |
| Insulation Class: |
F |
| Protection Class: |
IP55 |
| Rated Torque: |
15n.M |
| Cooling Method: |
IC411 |
| Wire: |
100% Copper Wire |
| Export Markets: |
Global |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Certification: |
Ce |
| Brand: |
Hongma |
Product Description
Product characteristics
Ultra-high intrinsic coercivity, high temperature rare earth permanent,magnet material, strong resistance to magnetic energy.Using electromagnetic design optimization, aimost with the entire speed,range constant torque output,Sinusoidal magnet field design, smooth low-speed torque high overload, capability,Class F insulation, IP55 protection structure, environmental applicability, safe and reliable use.
Technical Data
| Technical Data | | | | | | | | | |
| Frame size | 60ST-L00630A | 60ST-L01330A | 60ST-L01930A | 80ST-L01330A | 80ST-L02430A | 80ST-L03330A | 90ST-L02430A | 90ST-L03520A | 90ST-L04025A |
| Rated Voltage(3phase) | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
| Rated Power(kw) | 0.2 | 0.4 | 0.6 | 0.4 | 0.75 | 1 | 0.75 | 0.73 | 1 |
| Rated Torque(N.m) | 0.6 | 1.3 | 1.9 | 1.3 | 2.4 | 3.3 | 2.4 | 3.5 | 4 |
| Max Torque(N.m) | 1.911 | 3.8 | 5.73 | 3.9 | 7.2 | 9.9 | 7.2 | 10.5 | 12 |
| Rated Speed(r/min) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2000 | 3000 |
| Rated current(A) | 1.5 | 2.8 | 3.5 | 2.6 | 4.2 | 4.5 | 3 | 3 | 4 |
| V/Krpm | 28 | 28 | 28 | 21.05 | 22.77 | 29.27 | 51 | 67 | 60 |
| Ω/phase | 11.6 | 5.83 | 3.49 | 1.858 | 0.901 | 1.081 | 3.2 | 4.06 | 2.69 |
| mH/phase | 22 | 12.23 | 8.47 | 11.956 | 6.552 | 8.29 | 7 | 9.7 | 6.21 |
| LA(mm) | 106 | 131 | 154 | 135 | 160 | 181 | 152 | 175 | 185 |
| |
| Frame size | 110ST-L02030A | 110ST-L04030A | 110ST-L05030A | 110ST-L06020A | 110ST-L06030A | 130ST-L04025A | 130ST-L05025A | 130ST-L06025A | 130-7720 |
| Rated Voltage(3 phase) | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
| Rated Power(kw) | 0.6 | 1.2 | 1.5 | 1.2 | 1.6 | 1 | 1.3 | 1.5 | 1.6 |
| Rated Torque(N.m) | 2.00 | 4 | 5 | 6 | 6 | 4 | 5 | 6 | 7.7 |
| Max Torque(N.m) | 6 | 12 | 15 | 18 | 18 | 13 | 15 | 18 | 23.1 |
| Rated Speed(r/min) | 3000 | 3000 | 3000 | 2000 | 3000 | 2500 | 2500 | 2500 | 2000 |
| Rated current(A) | 4 | 5 | 6 | 6 | 8 | 4 | 5 | 6 | 6 |
| V/Krpm | 23.59 | 33.74 | 33.84 | 41.39 | 30.54 | 37.72 | 38.67 | 37.34 | 47.59 |
| Ω/phase | 0.982 | 0.779 | 0.567 | 0.64 | 0.338 | 1.108 | 0.867 | 0.605 | 0.66 |
| mH/phase | 2.98 | 3.026 | 2.316 | 2.764 | 1.515 | 3.76 | 3.124 | 2.317 | 2.83 |
| LA(mm) | 158 | 189 | 204 | 217 | 217 | 165 | 173 | 183 | 197 |
| |
| Frame size | 130ST-L07720A | 130ST-L07725A | 130ST-L07730A | 130ST-L10015A | 130ST-L10025A | 130ST-L15015A | 130ST-L15025A | | 150-23020 |
| Rated Voltage(3 phase) | 220V | 220V | 220V | 220V | 220V | 220V | 220V | | 220V |
| Rated Power(kw) | 1.6 | 2 | 2.4 | 1.5 | 2.6 | 2.3 | 3.8 | | 1.6 |
| Rated Torque(N.m) | 7.70 | 7.7 | 7.7 | 10 | 10 | 15 | 15 | | 7.7 |
| Max Torque(N.m) | 23.1 | 23.1 | 23.1 | 30 | 30 | 45 | 45 | | 23.1 |
| Rated Speed(r/min) | 2000.00 | 2500 | 3000 | 1500 | 2500 | 1500 | 2500 | | 2000 |
| Rated current(A) | 6 | 7.5 | 9 | 6 | 10 | 9.5 | 17 | | 6 |
| V/Krpm | 47.59 | 40.03 | 32.22 | 64.89 | 38.76 | 68.13 | 34.07 | | 47.59 |
| Ω/phase | 0.66 | 0.454 | 0.282 | 0.801 | 0.262 | 0.458 | 0.102 | | 0.66 |
| mH/phase | 2.83 | 1.913 | 1.232 | 3.675 | 1.258 | 2.369 | 0.598 | | 2.83 |
| LA(mm) | 197 | 197 | 197 | 218 | 218 | 263 | 263 | | 197 |
| | | |
| Frame size | 150ST-L15025A | 150ST-L18020A | 150ST-L23020A | 150ST-L27020A | 180ST-L19020A | 180ST-L23020A | 180ST-L31018A | | |
| Rated Power(KW) | 3.8 | 3.6 | 4.7 | 5.5 | 4 | 5 | 6 | | |
| Rated Torque(N.m) | 15 | 18 | 23 | 27 | 19 | 23 | 31 | | |
| Rated Speed(rpm) | 2500 | 2000 | 2000 | 2000 | 2000 | 2000 | 1800 | | |
| Rated Current(A) | 16.5 | 16.5 | 20.5 | 20.5 | 16.8 | 28 | 22 | | |
| Max Torque(N.m) | 45 | 54 | 69 | 81 | 57.3 | 71.6 | 79.5 | | |
| Voltage(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | | |
| | | |
| Frame size | 190ST-H44017A | 190ST-H56017A | 190ST-H76015A | 190ST-H95015A | 230ST-H11415A | 230ST-H14615A | 230ST-H19115A | 230ST-H23515A | 130-7720 |
| Rated Power(KW) | 8 | 10 | 12 | 15 | 18 | 23 | 30 | 37 | 220V |
| Rated Torque(N.m) | 44 | 56 | 76 | 95 | 114 | 146 | 191 | 235 | 1.6 |
| Rated Speed(rpm) | 1700 | 1700 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 7.7 |
| Rated Current(A) | 17.5 | 20.1 | 27 | 34 | 44.1 | 52.8 | 68.5 | 83.4 | 2000 |
| Efficiency | 90.5 | 91.1 | 91.6 | 92.1 | 92.5 | 93 | 93.6 | 94.2 | |
| Voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 47.59 |
| Rotor Inertia(Kg.cm2) | 0.01 | 0.014 | 0.016 | 0.019 | 0.035 | 0.045 | 0.056 | 0.071 | |
| weight(kg) | 38.8 | 43.8 | 49.5 | 54.7 | 73 | 88 | 105 | 122 | |
For further informations,pls visit our web page without hesitate!
