Factory Direct Sale Hinged Series Split Core Current Transformer

Name: Factory Direct Sale Hinged Series Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 681137461
Availability: InStock
Rating: 4.3 (73 reviews)

Price:	US $ 71-75/Piece
Trade Terms:	FOB,CFR
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-KCT02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	0.5
Insulation Class:	Cat E
Primary Current:	100-6000A
Customized:	Customized
Secondary Current:	5A or 1A
Split Core Current Transformer:	Kct02 Series
Split Core Current Transformer (Kct02 Se:	Split Core Current Transformers (Kct02 Series)
Color:	Customized
Coil Structure:	Toroidal
Frenquency:	50/60Hz
Application:	Spilt Core Current Transformer
Type:	Current Transformer
Phase:	Single
Voltage Transformation Principle:	Chuangyin

Product Description

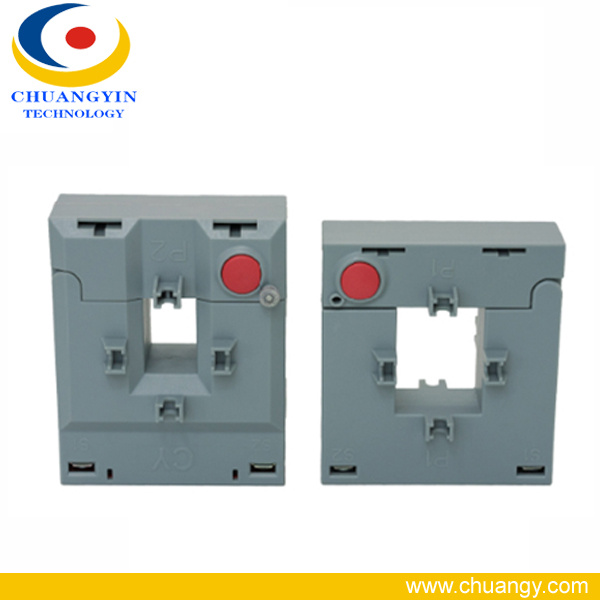

Hinged Series Split Core Current Transformer (CY-KCT02)

Company :
95% customers come back to us for repeat orders
Sample Ready in 3-7 days

Features:
.High quality comprensive measurements
.Available in a wide range of transformer ratings
.Accuracy up to Class 0.5
.Foot or Busbar mounted

Typical Application:
.Switchgear
.Energy Management Systems
.Instrumentation Equipment
.Split Core Current Transformers are
designed for assembly to an existing
electrical installation no need to dismantle
the primary busbar or cables.

Electrical Parameter:

Size Model Number	Ipn(A)	Isn(A)	Burden(VA)			Window(mm)	Welght(kg)
Size Model Number	Ipn(A)	Isn(A)	CL0.5	CL1	CL3	Window(mm)	Welght(kg)
CY-KCT02-223	100	5/1	/	/	1.5	20*30	0.75
	150	5/1	/	/	2
	200	5/1	/	1.5	2.5
	250	5/1	/	2.5	3.75
	300	5/1	/	2.5	3.75
CY-KCT02-258	300	5/1	/	2.5	5	50*80	0.90
	400	5/1	2.5	3.75	5
	500	5/1	2.5	5	10
	600	5/1	2.5	5	10
	750	5/1	5	7.5	10
	800	5/1	5	7.5	10
CY-KCT02-288	800	5/1	5	7.5	10	80*80	1.25
	1000	5/1	5	10	15
	1200	5/1	5	10	15
CY-KCT02-812	1200	5/1	7.5	10	15	80*120	1.25
	1500	5/1	10	15	20
	1600	5/1	10	15	20
CY-KCT02-816	2000	5/1	10	15	25	80*160	4.30
	2500	5/1	10	15	25
	3000	5/1	10	15	25
	4000	5/1	10	15	25
	5000	5/1	10	15	25
	6000	5/1	10	15	25
