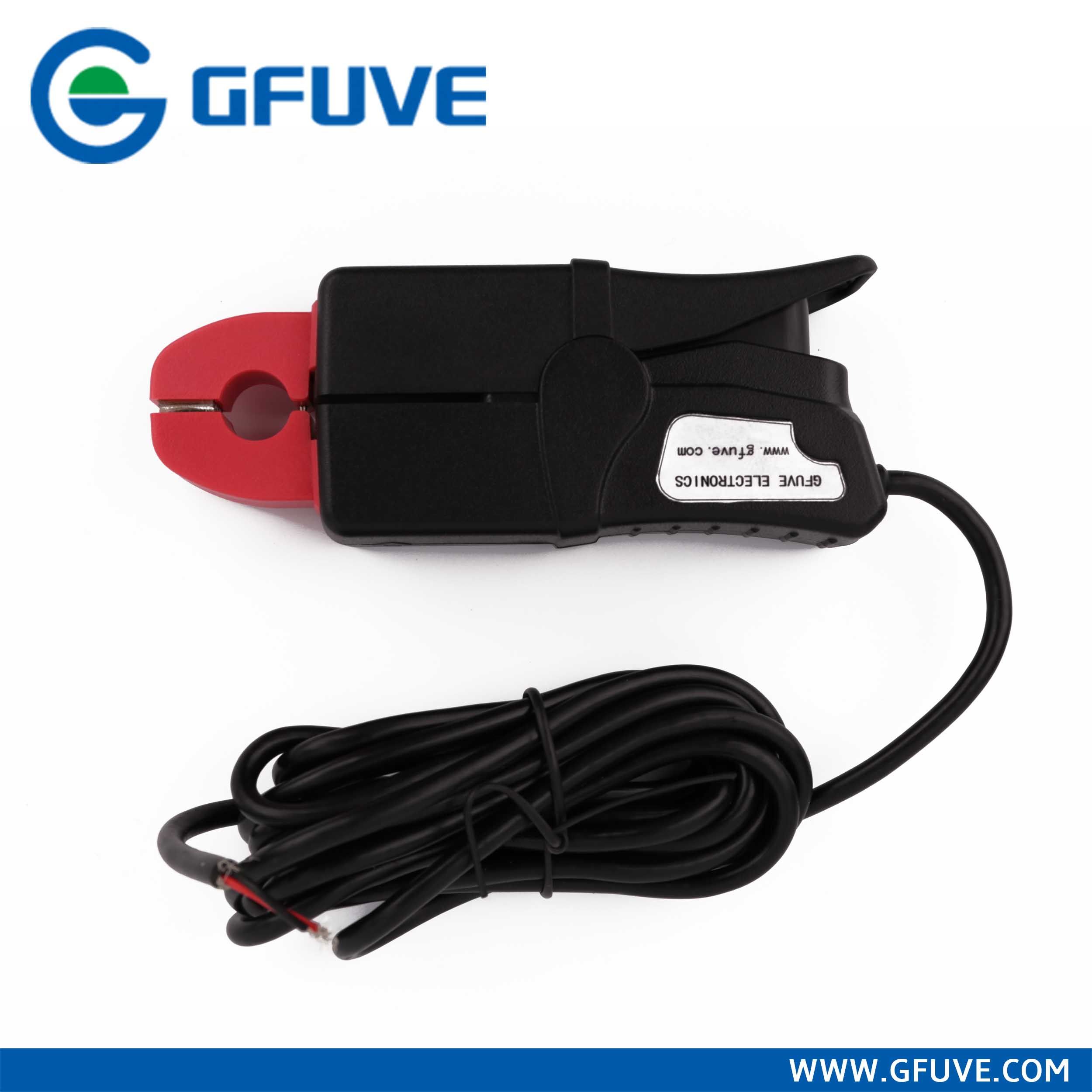

Factory Direct Sales 50 Amperes AC Current Sensor

Name: Factory Direct Sales 50 Amperes AC Current Sensor
Brand: all-electronics-online.com
SKU: 722012922
Availability: InStock
Rating: 4.7 (122 reviews)

Price:	US $ 25/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XQ13
Keyword:	50 Amperes AC Current Sensor
Model:	Xq13 50A Current Sensor
Ratio:	1000: 1 or 2000:1 (Customized)
Accuracy Class:	0.1%, 0.2%
Primary Current:	0 - 100A AC
Standard:	En 61010-1, En 61010-2-032, IEC60044-1
Weight (G):	280
Max. Jaw Opening (mm):	13
Jaw Color:	Red, Yellow, Blue, Green, Black
Material:	PC+ABS+Polycarbonate, UL94 V0
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

Factory direct sales 50 amperes ac current sensor
The model XQ13 50 amperes ac current sensor is suitable for 10A-100A cable online measurement, it belongs to high performance transducer ﬁeld.
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
1. Measurement range of 1mA to 100A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω
6. Output model: Lead output(2.5m)
Parameters

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%
Primary current	0 - 100A AC
Secondary current	0 - 100mA AC (customized)
Max. Cont. Input current	120A
Over voltage category	CAT III 600V
Output signal (AC current)	From 0 to 100mA AC at nominal input current
Output signal (AC voltage)	From 0 to 2V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	48 x 179 x 27
Weight (g)	280
Holding wire diameter (mm)	φ13
Max. jaw opening (mm)	13
Jaw color	Red, yellow, blue, green, black
Material	PC+ABS+Polycarbonate, UL94 V0

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
