| Prod Model: |
VT900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ota Function: |
Yes |
| Backup Battery: |
950mAh |
| Dimension: |
110mm*80mm*30mm |
| Weigh: |
180g |
| Operating Temperature: |
-20~75 Celsius Degree |
| Button: |
Sos |
| SD Card: |
Support |
| RFID: |
Support |
| Fuel Sensor: |
Support |
| Temperature Sensor: |
Support |
Product Description

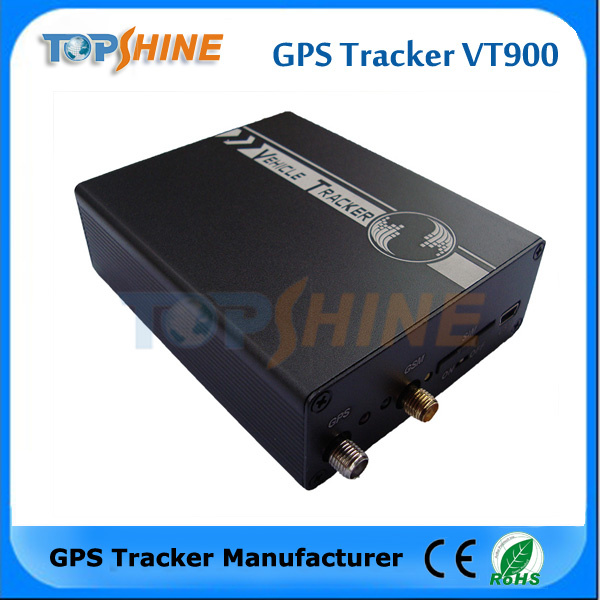

Factory direct supplier China GPS tracker VT900 About Us
Topshine Information Technic CO., LTD. is located in Guangzhou,a city with central sharp technology of electronic in China. We focus on researching, manufacturing and exporting GPS tracking systems, alarm systems and wireless communication products. We will always adhere to the spirit of "Honest and Reputation, Innovation and Excellence" and insist on accomplishing a good career with persons who have common goal all over the world to bring the most excellent products and happiness for our clients. Welcome retail and wholesale clients contact us for business!
GPS Tracking device is a device that uses the Global Positioning System to determine the precise location of a vehicle,to which it is attached and to record the position of the asset at regular intervals. The recorded location data can be stored within thegps vehicle tracking devices , or it may be transmitted to a central location data base, or internet connected computer, using a cellular (GPRS or SMS), radio, or satellite modem embedded in the unit. This allows the asset's location to be displayed against a map backdrop either in real time or when analyzing the track later, using GPS tracking software.
We meet our clients' complex OEM/ODM needs
- We have 7 years' experience developing and making GPS trackers
- Over $60,000 spent annually on R&D
- Products include car GPS trackers, car alarms, personal GPS trackers, asset GPS trackers
- Professionally design efficient, practical and safe positioning solutions and management solutions based on different customers' demands
- Strict quality control
- Professional presales guide
- Quick after sales technical support
- Items carry CE, RoHs, SGS quality check
Application
- Vehicle Real Time Tracking
- Car Security/Anti-Hijack
- Fleet managemnent
Features
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 950 mAh battery
* Remote Engine cut off to stop the car in safe condition
* ARM9 high speed microcontroller
* Wiretapping/remote listening
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Door open/close status detecting
* Door open/close control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* I/O: 5 Inputs, 5 Outputs, 2 Analog Inputs.
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Harsh braking and harsh acceleration alarm
* Suddenly acceleration/brake alert
* Accident Alarm (optional)
* Two way communication (Listen & Speak, need speaker support) (optional)
* Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
* Accident alarm (need crash sensor support) (optional)
* Photo with location & driving information log function (need camera support) (optional)

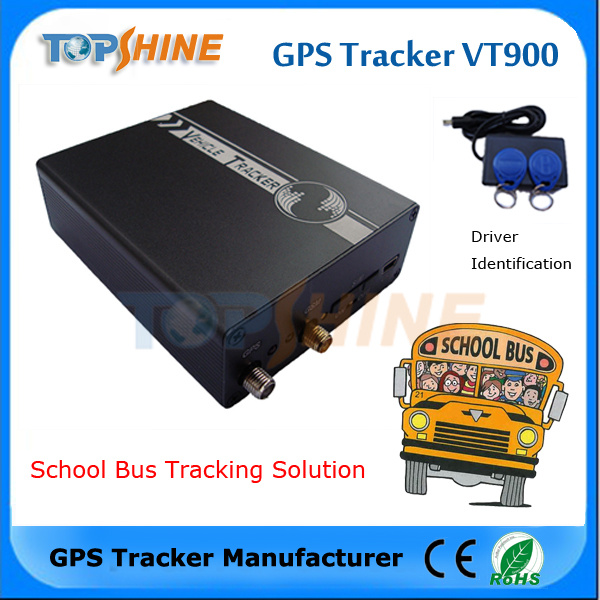

* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 2 fuel sensor manage (optional)
Specifications
Items | Specifications |
Dimension | 105*75*30mm |
Weight | 180g |
Input voltage | DC 9V~36V/1.5A |
Back-up Battery | 950mAh/3.7V |
Power Consumption | 65mA standby current |
Operating Temperature | -20°C~75°C |
Humidity | 5%~95% |
Work Time | 43 hours in power-saving mode and 10 hours in normal mode |
LED | 2 LED lights to show GPS, GSM status |
Button | 1 SOS and 1 power on/off |
Microphone | Default |
Speaker | Optional |
Camera | Optional |
Memory | 4M Byte |
Sensor | Motion sensor |
GSM Frequency | GSM 850/900/1800/1900MHz |
GPS Chip | Latest GPS SIRF-Star III Chipset |
GPS Sensitivity | -159dB |
Positioning Accuracy | 10meters, 2D RMS |

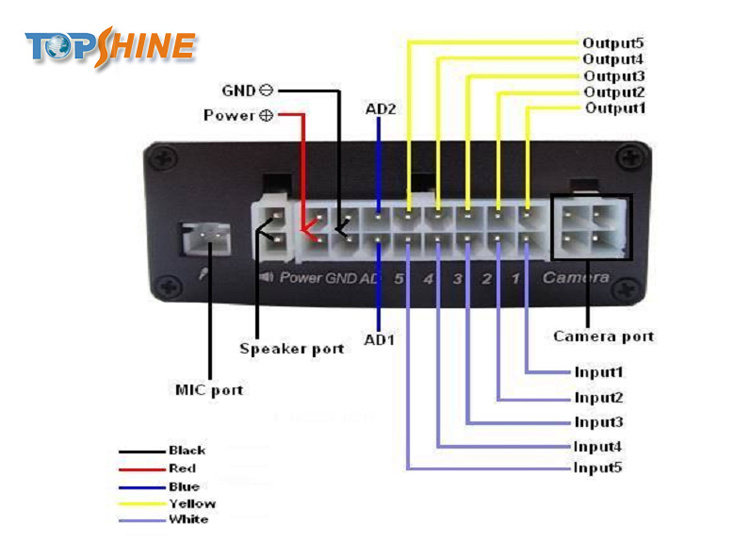

I/O | 5 Input 5 Output 1 Camera Port 2 Analog Input 1 RS232 Port 1 MIC & Speaker Port |
Packaging & Standard Accessories
| Main unit | 1pc |
| GSM antenna | 1pc |
| GPS antenna | 1pc |
| SOS button | 1pc |
| Microphone | 1pc |
Relay
(12V/24V) | 1pc |
| Wiring | 1set |
Optional Accessories
| Fuel Level Sensor: $25 to $78 depending on fuel sensor length |
| Temperature sensor: $10 Smart phone reader: $2 |
| Passive RFID reader: $10 RFID tag: $1 |
| Smart phone reader: $12 |
| Crash sensor: $2 USB Config Cable: $2 |
| Camera: $15 Speaker: $2 |

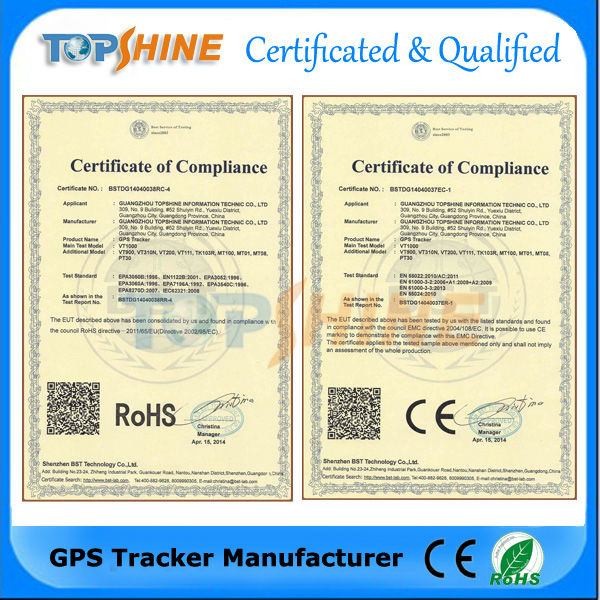

All of Topshine trackers have passed CE and ROHS certificate.

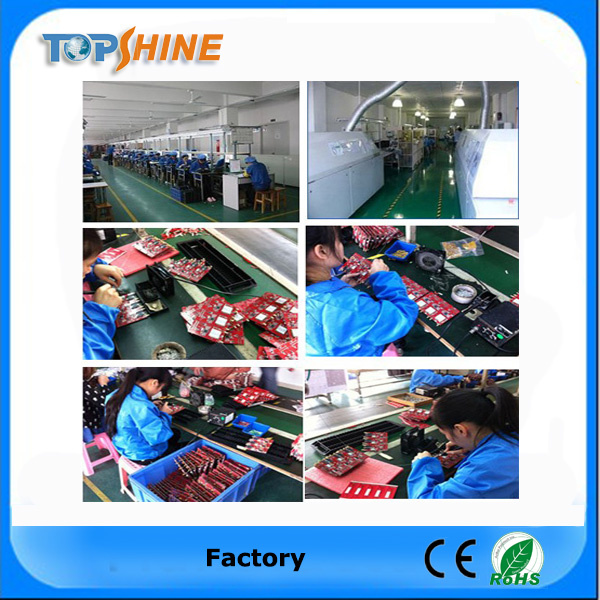

Our factory
