Factory Direct Supplier Mini GPS Tracker for Personal/Pet/Car A9
| Price: |
US $ 24-25/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A9 |
| Battery: |
450mAh |
| Android & Ios System: |
Support |
| GPS+WiFi+Lbs Triple Positioning: |
Support |
| Real Time Positioning: |
Yes |
| Colors: |
Green, White, Red |
| GPS Antenna: |
High Sensitive Ceramics Active Antenna |
| GSM Antenna: |
FPC Antenna |
| G-Sensor: |
Support |
| SIM Card Slot: |
Micro SIM Card |
| Whole Machine Size: |
38X38X12mm |
Product Description

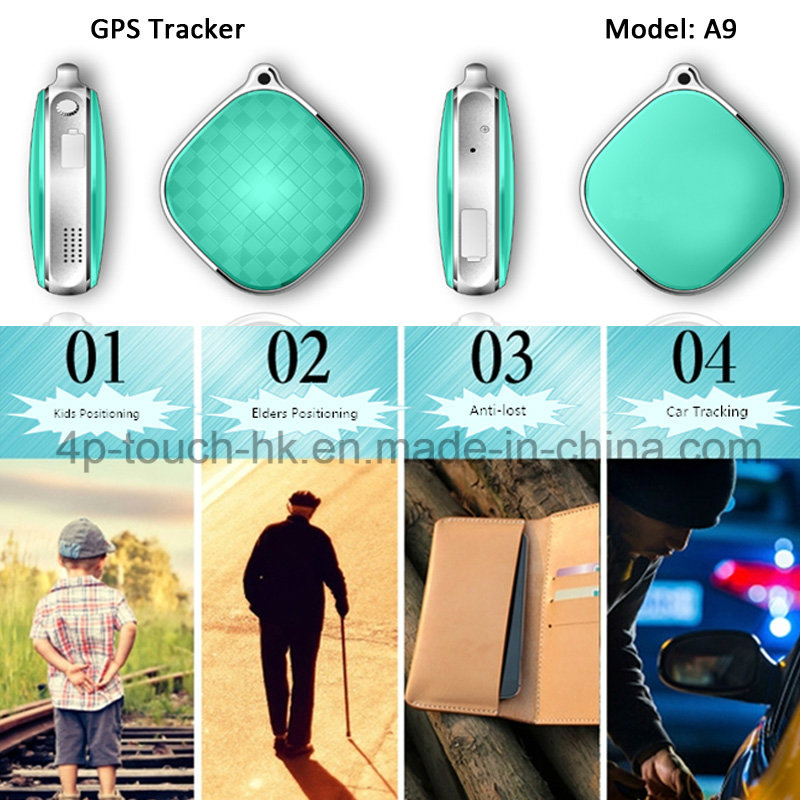

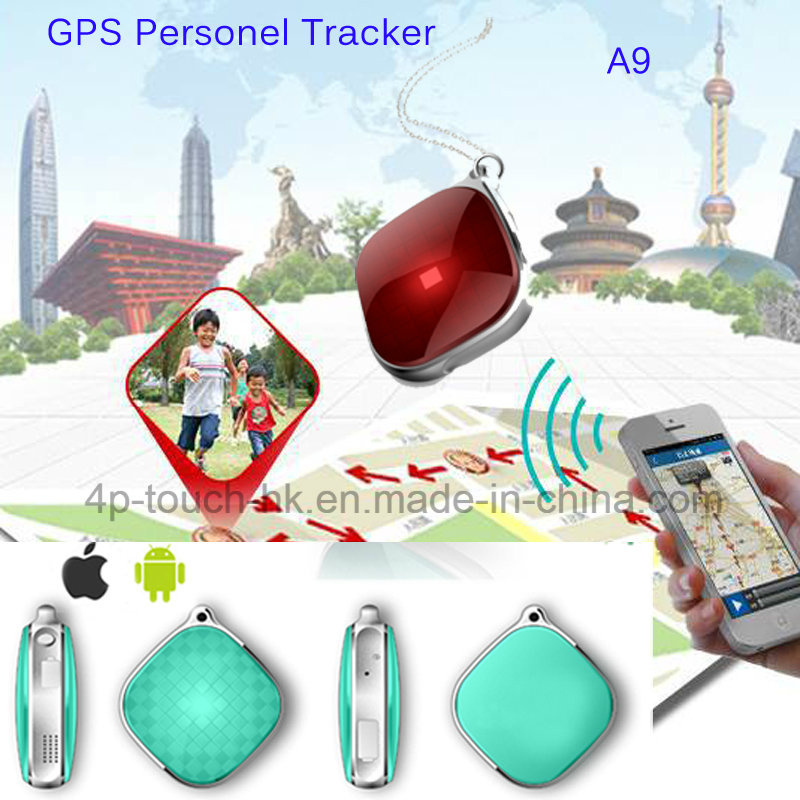

Mini GPS Tracker Key Pendant
1.2G/GSM network: 850/900/1800/1900MHz
2.Size: 46DIA*12mm
3.Net Weight:40g
4.Button: One button(power button and SOS button)
5.GPS antenna: Built-in high sensitivity ceramic antenna
6.GSM antenna: FPC antenna
7.Rechargeable lithium battery: 450mAh
8.SIM card slot: Micro SIM Card slot
9.Chipset: MTK2503
10.GPS chip:MTK3327
11.software: Android 2.3 and above, iOS 5.0 and above
12.Colors:Green, White, Red
13.Working time:2-3days
Main Features:
1.Call function
2.SOS emergency call
3.Intelligent fence
4.Historical route
5.Support AGPS
6.GSM+GPRS+GPS: GPS+WIFI+LBS
7.multimode positioning

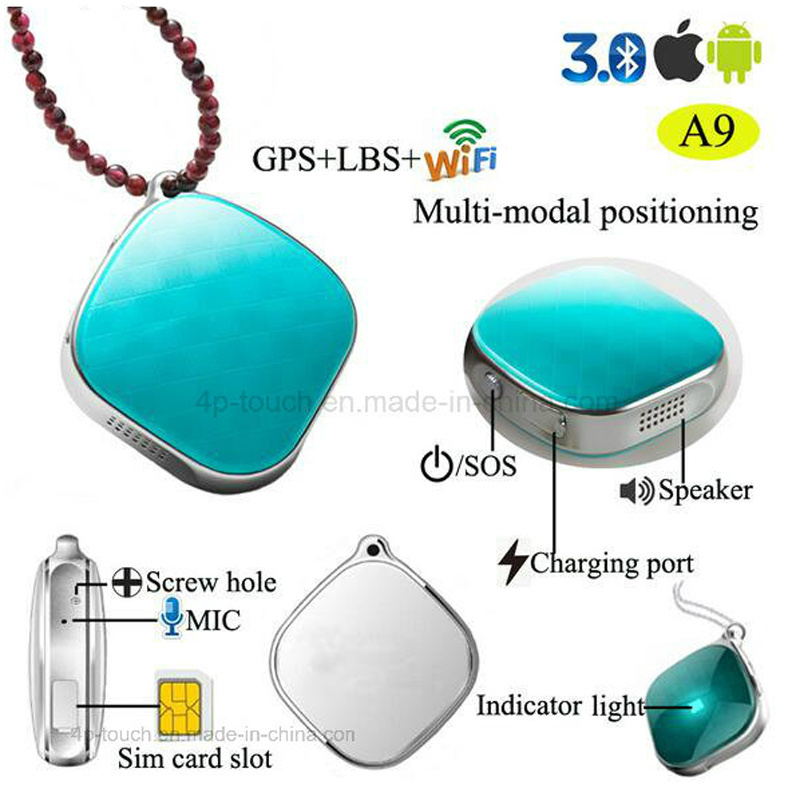

structure
parts | Category | Specification |
| ID design | delicacy and smart |
| Whole machine size | 38X38X12mm |
| color | Green, White and Red |
| button | one button(power/SOS button) |
| weight | 22g without package, 130g with package box |
| GPS antenna | High sensitive ceramics active antenna |
| GSM antenna | FPC antenna |
| Battery | 450mAh |
| SIM card slot | 1pc |
| G-sensor | Support |
| I/O port | USB charge |
Hardware
parts | CPU | MTK2503 |
| CPU chip | MTK3337 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| GPS location accuracy | 5~15M |
| LBS location accuracy | 100-1000M |
| Minimum standby current | less than 0.5 mA |
| Average standby current | less than 2.5 mA |
| Average working current | around 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | can approval by 3C,CE&ROHS |
| GPS antenna | Built-in high sensitivity FPC antenna |
| GSM antenna | Built-in four frequency method of antenna |
| bluetooth | No |
| G-sensor | Support |
| MIC | Support |
software
parts | supported operating | Support android 2.3 and above system, IOS5.0 and above. |
| call function | double talk/The remote monitoring |
| Language support | Simplified Chinese and English |
| Compatible with support for multi-languages |
| GSM+GPRS+GPS | GPS+LBS+WIFI Multi-modal positioning |
| support AGPS | Cold start 26 seconds positioning |
| call function | SOS call, voice monitor, whitelist for don't disturb |
| power management | Ultra-low power consumption of power management,intelligent dormancy |
| One key emergency | SOS one key emergency function ,autodialing |
| Smart Geo-fence | Outside the range setting can be automatic alarm |
| historical route | Can check history of three months |
| wireless upgrading | Software upgrade, remote debugging maintenance, remote setting
parameters |

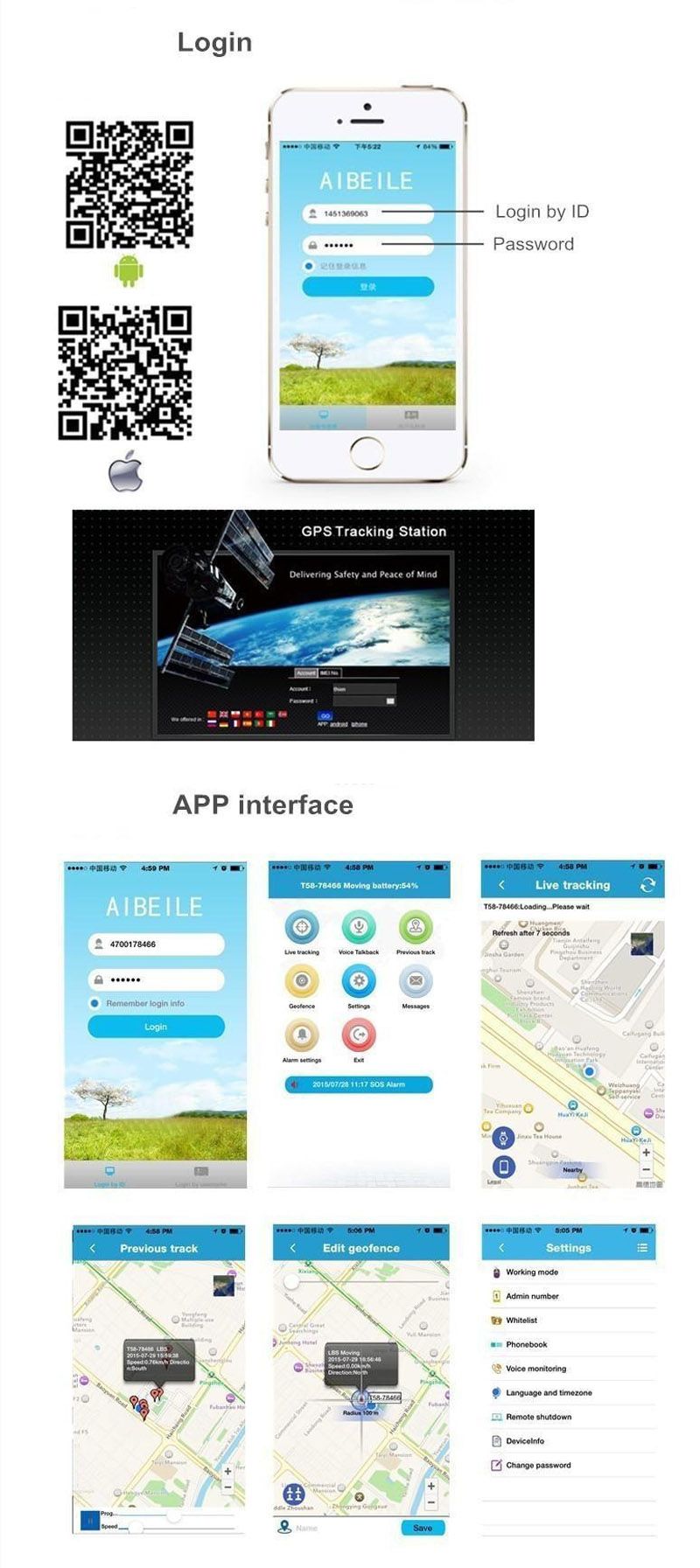

App interface:
