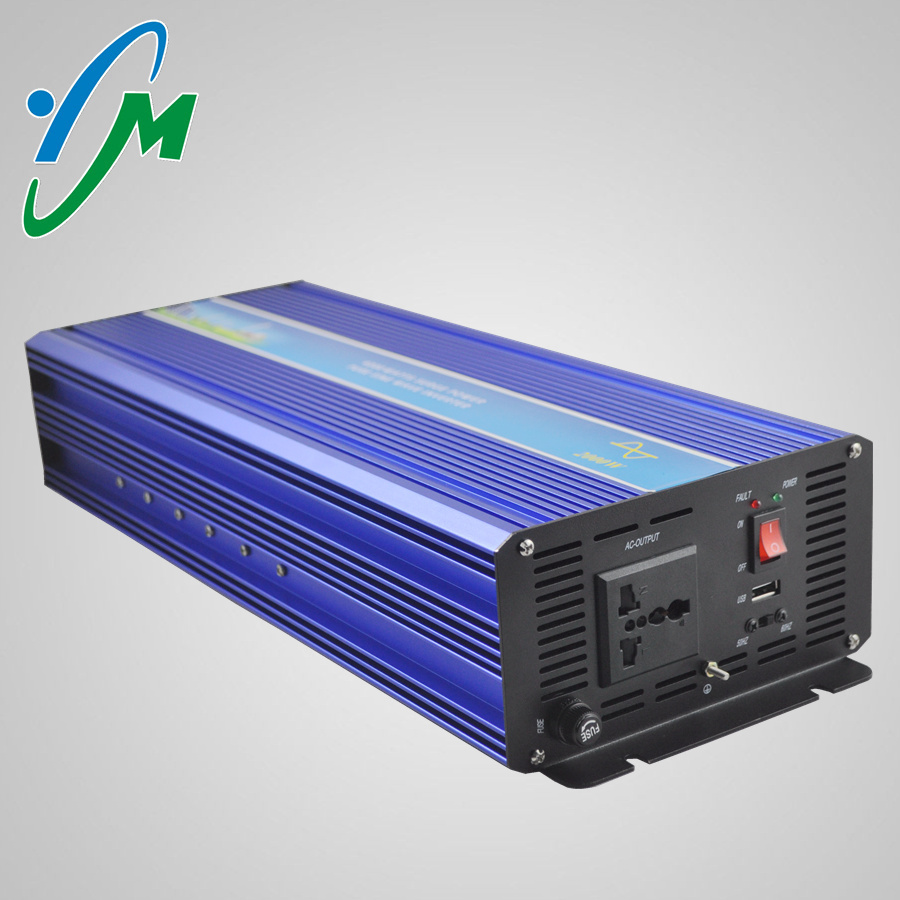

Factory Directly 2000W DC to AC Sine Wave Solar Power Inverter
| Price: |
US $ 125-140/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
CZ-2000S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
CZ-2000s |
| Input Voltage: |
12V/24V/36V/48V/96V/110V |
| Output Voltage: |
100-120V/220-240V |
| Warranty: |
24 Months |
| Application: |
Solar/Wind/Home/Office System |
Product Description
CE,RoHS,ISO 9001 approved off grid sine wave inverters.Manufacturer of power inverters located in Zhejiang,China.
Provide various inverters from 150w to 6000w. Product Features
1. Pure sine wave output
2. Strong ability of impact resistance
3. Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.
4. Soft start cooling fan .
5. 2 Years warranty , 1%-2% spare parts .
There are full protection and audio-visual alarm system in the power inverter. It can provide a full range of protection, mainly over-voltage protection, low-voltage alarm, under-voltage
Protection
.Buzzer alarm
.Soft start
.Reverse polarity
.Grounding protection
.Over-load protection
.Low-voltage protection
.Over-voltage protection
.Short-circuit protection
.Over-temperature protection
.Auto reset after being in protectionTechnical Parameters
| Model | CZ-2000S |
| Input | DC voltage | 12V | 24V | 48V | 110V |
| Voltage range | 10-16VDC | 20-33VDC | 40-63VDC | 90-130VDC |
| No load current draw | 0.7A | 0.4A | 0.2A | 0.1A |
| Efficiency | > 90% |
| DC connection | Cables With Clips or Car Adaptor |
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC |
| Continuous power | 2000W |
| Surge power | 4000W |
| Waveform | Pure sine wave |
| Frequency | 50Hz or 60Hz |
| AC regulation | 3% |
| Protection | Low voltage alarm | 10.5DC±0.5V | 21DC±1V | 42VDC±1V | 96VDC±3V |
| Low voltage shut down | 10DC±0.5V | 20DC±1V | 40VDC±1V | 90VDC±3V |
| Short circuit | Shut off output automatically |
| Over load | Shut off output |
| Over voltage shut down | 16±0.5V | 33±1V | 63±1V | 130±3V |
| Over thermal | Shut off output automatically |
| Environment | Working temperature | Between -10ºC and +50ºC |
| Working humidity | 20%~90%RH |
| Storage temperature | Between -30ºC and +70ºC |
| Package | Machine size(mm) | 465*165*85 |
| Packing size(mm) | 560*230*148 |
| Net weight(kg) | 5.1 |
| Gross weight(kg) | 5.4 |
| Packing mode | Carton packaging |
| Other | Start | Soft start |
| Cooling ways | Intelligent cooling fan |
Solar Power Inverter Custom-made available:We also could provide customized DC input voltages: DC 36V, DC 60V, DC 72V, DC 84V, DC 96V, DC 110V.Inverter Details

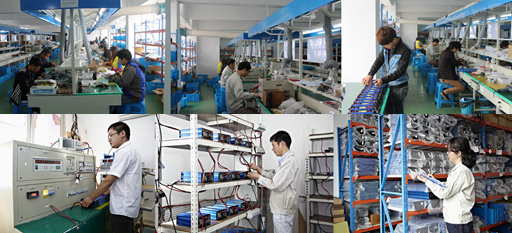

Workshop
Exhibition
Certification
Packing Details
Delivery detailsAbout bulk order, it's up to your quantity, almost within 30days.
About sample, it's within 5 days.Payment and Shipping
1. We accept T/T, Paypal, Western Union;
2. For sample, it's better via Paypal or Western Union; For quantity order, we can go for T/T;
3. For small order, we usually transport by express like FedEx, DHL, TNT, EMS.
For big order, we can ship by air or by sea.
Yueqing Yongmao Power Co., Ltd. is an innovative scientific and technological enterprise, specialized in integrating the R&D, manufacturing, selling and serving for power inverter ( solar, wind and home system), we can provide the wide power from 150W to 6000W, the products of our company are widely used in various fields as new energy generation, electricity supply, telecommunication, aerospace, national defense, transportation and scientific research institutions etc.
With rich experience in technique researching, designing, manufacturing process, quality control, before-after sale service for power supply products, the company becomes an important base for power supply products at home and abroad, enjoying a high reputation and good popularity.
Good quality, best price and better technical support and service, make Yueqing Yongmao Power Co., Ltd. As your most valuable cooperator in China.
Our enterprise purpose: Trusted partner of customers, home for growth of employees, excellent member of industry.
Enterprise mission: High-quality suppliers in the electronics industry.
Enterprise core values: Forge ahead, solidarity and farsighted, l earning continuously.
Management philosophy: To inspire individual potential, Progress together with staff; Improve product quality and achieve win-win with customers; Unmoved in development goals, go on with the world.
Create value for customers, help growth of employees, hold on social responsibility. Yongmao advocate for employees to create a harmonious and pleasant working and living environment, fully stimulate the creativity and sense of being masters. Yongmao actively give financial aid to students, make donations to earthquake disaster area, and involved in all kinds of charitable activities and public utilities, such as poverty alleviation. We actively contribute to the community, truly live up to our belief "change oneself with its growth and to return society with achievement
