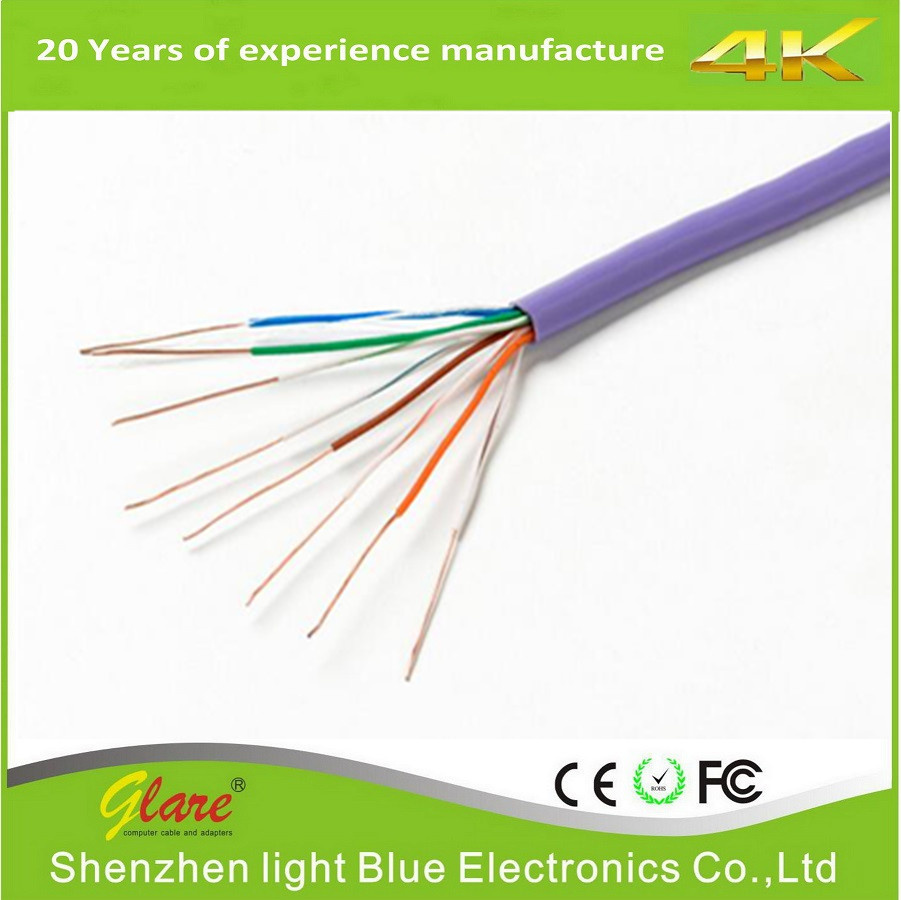

Factory Directly Provide Communication Cable

Prod Model:	Communication Cable
Cable Use For:	Computer
Cable Conductor:	28AWG Bare Copper
Cable Material:	PVC and Copper
Cable Length:	as Customer's Request
Cable Color:	Black ,Blue Color
Cable Warranty:	12 Months
Cable Packing:	Poly Bag,Blister ,Gift Box
Cable Certification:	Ce,RoHS
Application:	LAN Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	VDE
Model:	Lbcable
Brand:	Lbcable

Product Description

Hot Sell Manufacturing Communication Cable
Specification:
cat5e lan cable 305 meter
1. Solid 24AWG
2.High quality with factory price
3.Free Sample
4. RoHS,CE,ISO,FCC

 1.Overview
High-Performance data cable ,application structured cabling, CCTV system , Alarm system , Telecom project etc.
Exceeds TIA/EIA-568B.2,ISO/IEC 11801 , ETL listed .
100Base-TX,100Base-T2 and 100Base-T4 standard.
Can be used for voice, integrated service data network (ISDN).
Long transmission distance, small transmission loss, wear resistance, resistance to pressure.
2. Product Structure

	Model	cat5e lan cable 305 meter
	Conductor Size	24AWG
		0.45mm/0.48mm/0.49mm/0.5mm/0.51mm
	Conductor Material	CCA/CCU/BC
	Nuber Of Conductor	4P
	Shiled	FTP
	Flammability Grade:	CM,CMR,CMP
	Indoor / Outdoor	Single jacket/Double jacket
	Insulation Material	HDPE
	Insulation Thickness	0.91mm
	Jacket Material	PVC, ROHS PVC, LSZH PVC
	Outer Jacket Thickness	5.2mm
	DC Resistance(Max.)	9.5 Ohm/100m
	DC Resistance Imbalance	2.50%
	Working Capacitance(Max.)	5.4nF/100m
	Insulation Resistance	10000 MOhm.km
	Transmission Velocity	65%
	Operating Temperation	-40 °C - +75 °C
	PVC Jacket Color	As client's request.
	Marking On Jacket	On your request (Print your brand)
	Construcation Draw



Product Description:
Rated temperature:	60ºC,75ºC,90ºC
Installation temperature:	-30ºC~+50ºC
Minimum bending radius:	>4P   15D <4P   4D
Reference Standard:	UL444,UL1581
	Bare solid copper conductor
	RoHS/REACH Complied PVC,PE or LSZH jacket
	Complies to TIA/EIA-568-C.2&ISO/IEC 11801
Application:	Ethernte 10Base-T 100Base-T4 ATM TP-PMD Seppch Telephone Multimedia Trunk Wiring

Cable Construction (CAT5)

Item No.	Construction	Nominal Conductor Dimension (m)m	Nominal Insulation Diameter (mm)	No.of Paris	Nominal Cable OD. (mm)	Type of Jacket	Remark
213102/213202/213602	UTP	0.45	0.80	4	5.0	PVC/PE/LSZH	√
213106-1/213206-1/213606-1	UTP	0.475	0.85	4	5.1	PVC/PE/LSZH	√

Company information
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE,MHL Cable, (DP)Displayport Cable, SATA cable, Network Lan Cat cable, AV cable, Coaxial cable,DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, Earphone cable, which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001:2008, ISO14001:2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge.

Package information
1pcs/poly bag
250pcs/carton
carton size:46*30*25cm

FQA:
1. Q: What kind of cable do you produce?
We specialize in producing lan cable,power cable,power cable,speaker cable etc.
2. Q: What's your MOQ?
A: Our MOQ is 10km per item. Free samples can be sent for your quality evaluation.

3. Q: What's your delivery time?
Normally, our delivery time is 25 days after receiving deposit. Base on the quantity of the order.

4. Q: What are your payment terms?
We accept T/T, L/C. Other payments accept through negotiation.

5. Q: What is your manner of packing?
the color box and cartons,or wooden plates,wooden splints
It can as the customers'requests

6. Q: Can your factory customize cables based on customer's samples?
Yes, we can. OEM and ODM are both welcome.
