Factory Gydxtw Outdoor Ribbon Optical Fiber Cable for Network

Name: Factory Gydxtw Outdoor Ribbon Optical Fiber Cable for Network
Brand: all-electronics-online.com
SKU: 727855912
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	Negotiable/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYDXTW
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	Tlc
Brand:	Dumei
Sheath Material:	PE

Product Description

GYDXTW Outdoor Ribbon Optical Fiber Cable for Network

Cable Type:GYDXTW
Center Tube Type Optical Fiber
Corrugated PSP coheres tightly with PE sheath
Between the PSP and the loose tube hot-melt adhesive material is applied to keep the cable compact and watertight.
Two parallel steel wires ensure tensile strength in PE Sheath.

Description
The ribbon fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. One parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Application:
1,Long distance and local area network
2,Suitable for aerial pipeline laying method
3,Operating Temperature:-40ºC-+60ºC

Cable Characteristic:
1,Low dispersion and attenuation
2,Proper design,precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental performance.
3,Compact fiber structure, between the PSP and the loose tube,hot-melt adhesive material is applied to keep the cable compact and watertight, this special tube filling compound ensure a critical protection of fiber moisture-proof and ensure the loose tube do not rebound.
4,Fiber counts are high and intensive.Steel Tape Armor structure keeps cable highly crush resistance performance.

Product perameter

Model Number	GYDXTW
Type	Optical Fiber
Number of Conductors	Multicore
Certification	TLC, ISO
OEM	Welcome to OEM
Jacket Material	PE
Outdoor Laying Mod	Access network fiber ribbon cable
Standards	YD/T 981.3
Application	Duct/Aerial Local area network system and Subscriber network system Long distance communication system
Operating Temperature	-40 to 60 degree

Technical parameters:

Items		unit	Details
Fiber counts		--	Multicore
Optical fiber	Type	--	G.652,G.655
PE sheath		--	YES
Tension (Long/Short Term)		N	600/1500
Crush (Long/Short Term)		N/100mm	300/1000
Min. Bending radius		Dynamic	30times cable diameter
Min. Bending radius		Static	15times cable diameter
Temperature range		Operation	-40°C to 60°C
Application			Outdoor

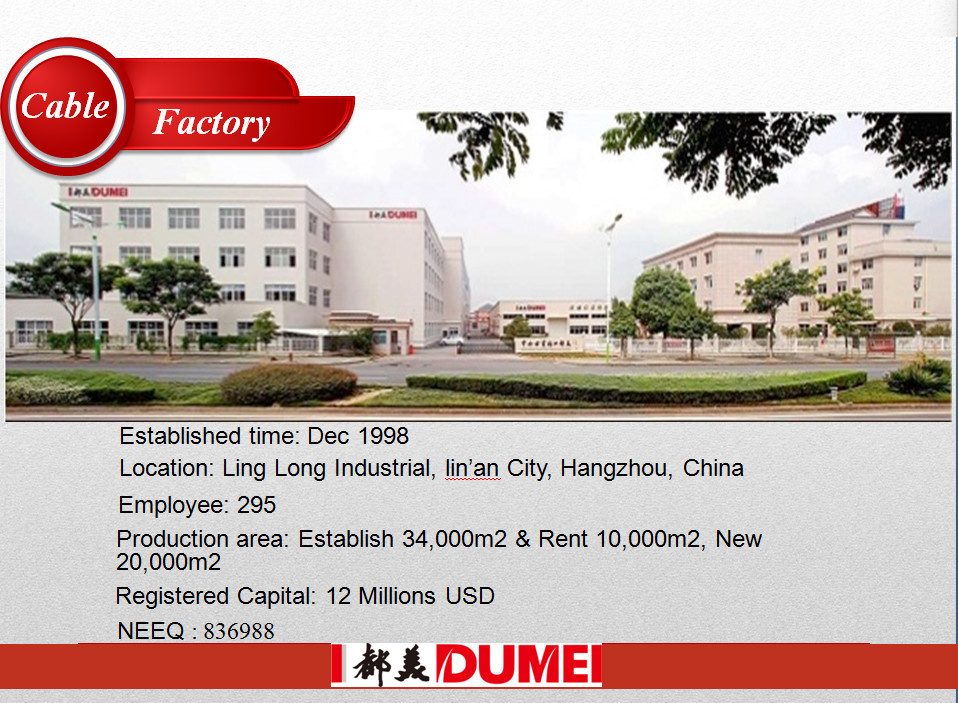

1, Cable Factory

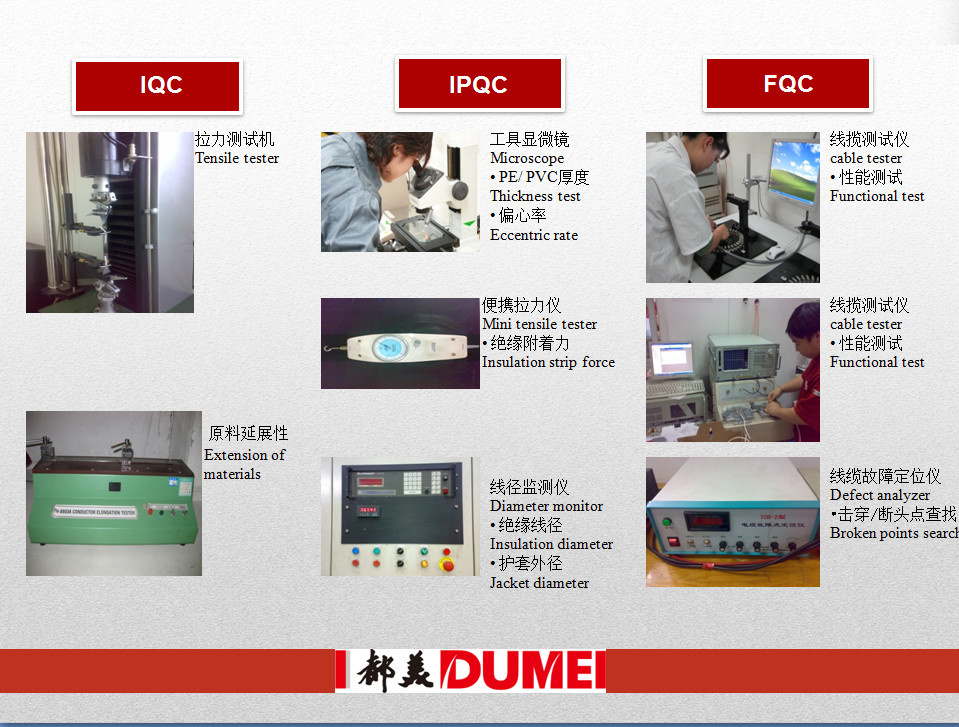

2, Advanced Measurement Equipments

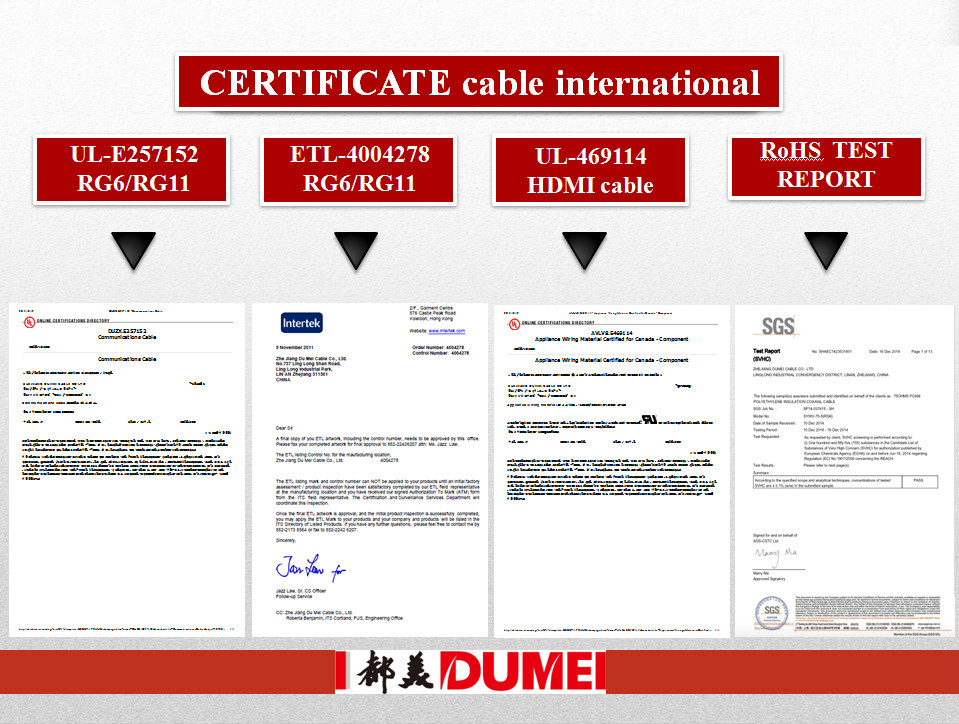

3, Certifications

4, Contact Information

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
