Factory High Quality Automotive Equivalent 5pin Epg Cicular Push Pull Metal Connector

Name: Factory High Quality Automotive Equivalent 5pin Epg Cicular Push Pull Metal Connector
Brand: all-electronics-online.com
SKU: 813570805
Availability: InStock
Rating: 4.3 (47 reviews)

Price:	US $ 2.03-2.68/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RM-EPG-0B-305-HLN
Shell Size:	00b 0b 1b 2b 3b 4b
Contacts No.:	2,3,4,5,6,7,8,9,10,14
Certificates:	Ce, RoHS, SGS, ISO9001:2008
IP Ranking:	IP50
Contact Type:	Solder Contact
Cable Assembly Or Not:	Yes
Locking Style:	Self-Locking
MOQ:	5 PCS
Delivery:	5~7 Working Days

Product Description

PRODUCT DESCIPTION:
Factory high quality automotive equivalent 5pin cicular push pull metal connector

Specifications

Shell Style/Mode : Straight plug
Number of contact: 5pins
Contact plating: Gold
Contact Gender: FEMale
Housing Material : Metal
Wire Termination Method : SOLDERING
Locking style: SCREW TYPE
Max. Matings :5000
Variant : Nut for fitting a bend relief
Recommended Wire Size (AWG) : AWG 20-30

Product Size & Contacts

B -1P 50	00	2	3	4
	0B	2	3	4	5	6	7	9
	1B	2	3	4	5	6	7	8	10	12	14	16
	2B	2	3	4	5	6	7	8	10	12	14	16	19	26
	3B	3	4	7	8	10	12	14	16	18	21	30

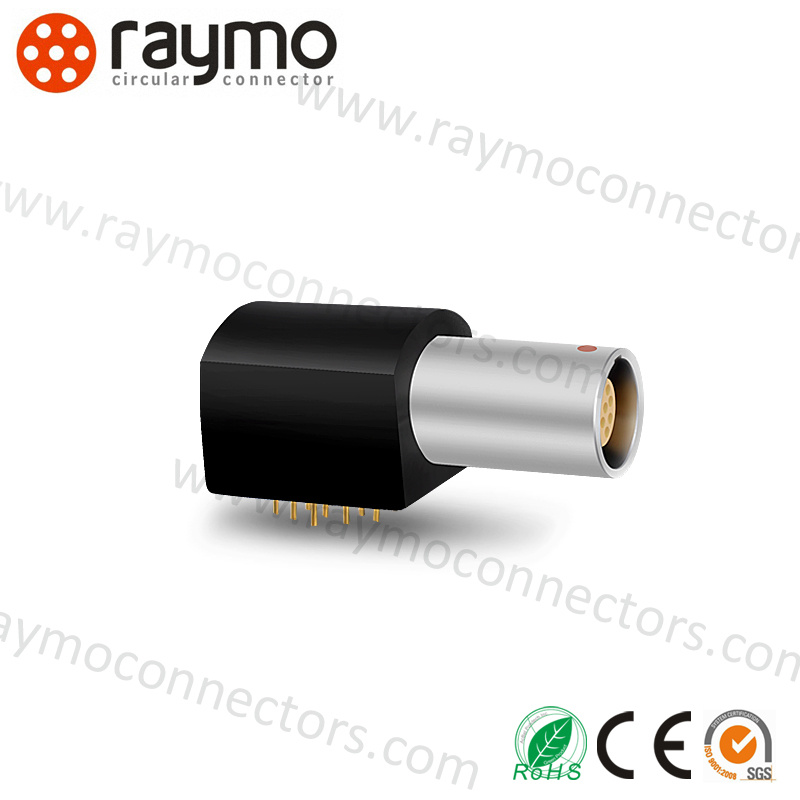

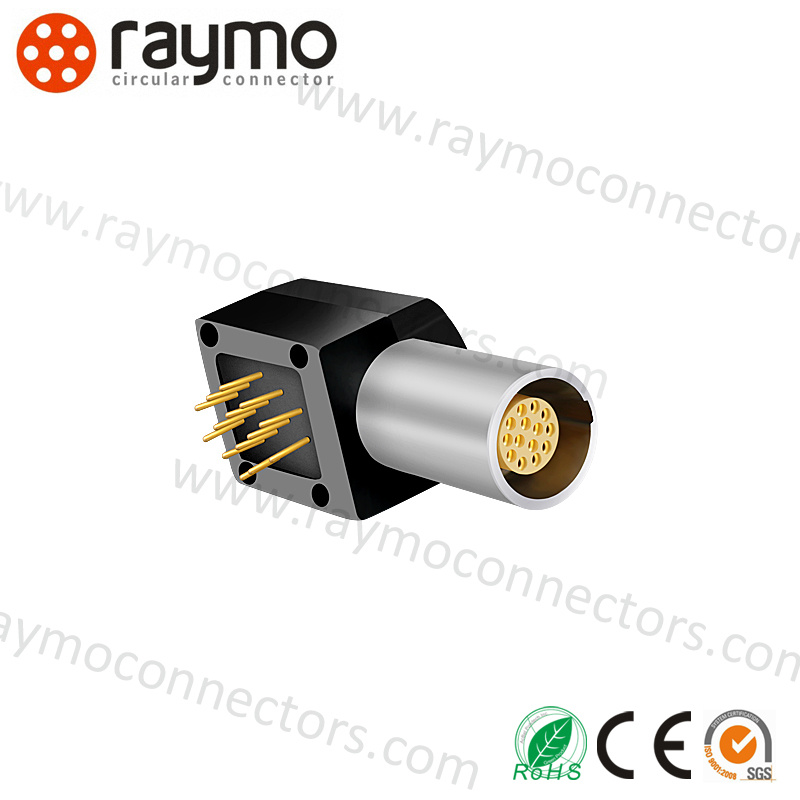

Products Photo Details

Technical Characteristics

Endurance(shell) : 5000 mating cycles
Operating Temperature range : - 25° C, +85° C
Rated current : 2A
Rated Voltage (AC) AC 100V
Rated Voltage (DC) DC 140V
Withstanding Voltage : 300V max

Our Company

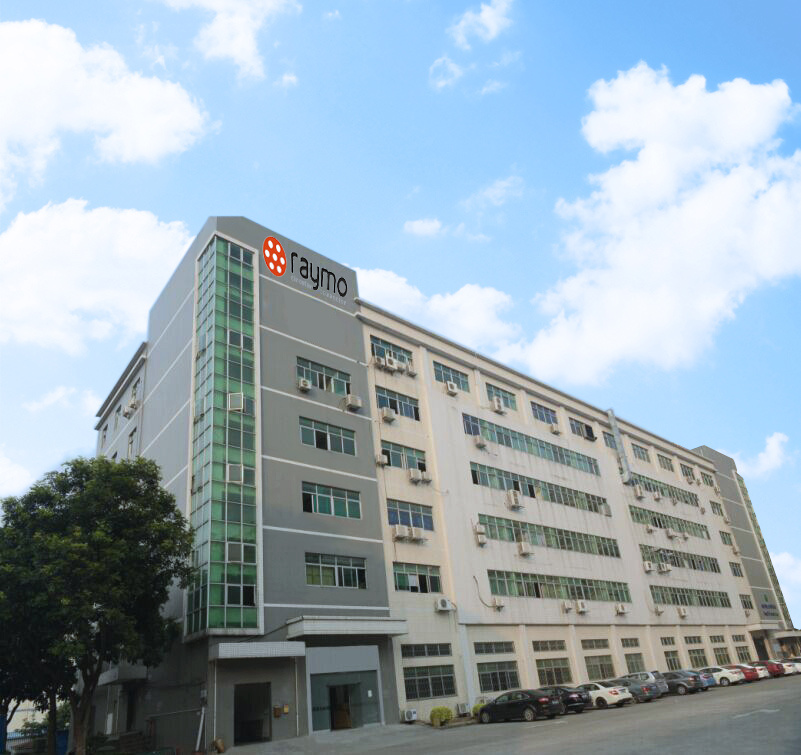

RAYMO is a SGS audited manufacture that:
• Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
• Can be 100% compatible with original LEMOS • FISCHERS • ODUS • HIROSES • BINDERS and Military 38999
• Series has F, B, K, S, L, T, P, HR10A, M4, M8, M12, M16, , BNC, 680, 423 , 38999, 26482
• CO, Form A, Form E
• CE, ROHS, ISO:90001-2008, SGS Audited manufacturer
• All the items can work normally after 5000times mating

RAYMO EXBITIONS

FAQ
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in producing circular push pull connectors and cable assembly since 2010.
Our factory is SGS audited manufacture and worked on www.alibaba.com more than 4 years.

2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.

3. Free sample :
RAYMO:  Available. Any needs, please contact us:

4. What about the delivery time?
Raymo: sample for 3-5 working days, mass production for 5-7 working days.

5.What is your payment terms?
Raymo: 100% T/T  deposit when customer place order.

6. Does your product have any warranty?
Raymo:  Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them beforeshipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

RAYMO professionally specializes in manufacturing and exporting various precision connectors and cable assembly for many years.

With the professional R&D and excellent craftmanship, we can offer customer exact high quality and nice appearance products, that

Widely have been used in Medical equiments, Industrial applications, Telecommunications, Aviation, Audio-video,

Petroleum, and other industries, , , etc.

Based on the philsophy of Quality First and Competitive price, Raymo focuse on every technological design and processess, we have already established

Good reputation among customers.

What is more, Raymo can do OEM design, and help customer's idea to come into truth.

Raymo as a team, customer's suggestion will be highly appreciated. Samely, we will give you better professional suggestion as we did before.

We have the capacity to meet market demand and are ready to become a better professional manufacture in connector field.
