Factory Made Electrical Armoured Cable XLPE

Prod Model:	armoured cable xlpe
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Voltage:	350V-750V
Standard Length:	100m/Roll
Working Temp:	0°c-70°c
Conductor:	Copper
Cores:	as Client's Requirement
Color:	Red/Black/Blue/Yellow/Green or as Required
Jcaket:	PVC
Package:	Fillm Packing
Delivery:	15-20days After Payment
Model:	Electrical Armoured Cable XLPE
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	RoHS
Brand:	Yongkuntai

Product Description

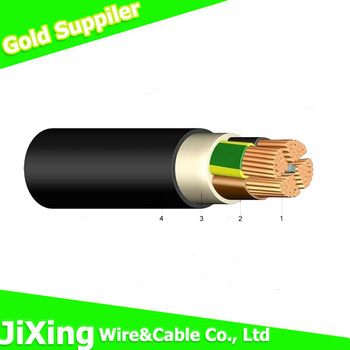

factory made electrical armoured cable xlpe


Conductor:electrical armoured cable xlpe
Shape: Circular Compacted or shaped Stranded Conductor (Class 2)
Insulation:VV/VV22  PVC
                  YJV/YJV22  XLPE (cross-linked polyethylene) rated at 90ºC
Colours for core indentification:
Single core-natural(black on request)
Two core-red,black
Three core-red, yellow,blue and black
Five core-red,yellow,blue,black and green/yellow
Armour:Galvanized steel wire armoured(SWA) or steel tape armoured(STA).
Sheath:PVC type ST2 to IEC 60502,colour black
Assembly:Two,three,four or five insulated conductors are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.
Application:
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1KV indoor or outdoor,enclosed in conduit, in underground duct where not subject to mechanical damage.
Non-armoured cables are designated for general use including underground bruial,where they are not likely to suffer mechanical damage.
Armoured cables are most suitable for underground burial where there is a risk of mechanical damage.
Standards
International:IEC 60502,IEC 60228
China:GB/T 12706,1-2008
Other standards such as BS,DIN and ICEA upon request
Certificates
CE,RoHS,CCC,SGS,ISO-9001 and more others at request
Technical data
Max.Conductor Temp:normal(70ºC),short circuit no more than 5s(160ºC when section-area below 300mm2,140ºC when section-area above 300mm2)
Min. Ambeent Temp:0ºCafter installation and only when cable is in a fixed position
Min. Bending Radius:20×O.D.
Operating Features
1, Max .Long-time operating temperature of PVC insulated cable is 70°C
Max .Long-time operating temperature of XLPE insulated cable is 90°C
2.Installing temperature of cable should not be less than 0°C
3, Max short-circuit temperature is not exceed 250°C, Not more than5 Sec.
4,Ambient temperature of installation is not lower than 0°C
5,With good chemical stabilities, such as resistance to acid, alkali, salt, oil and organic solvent and flam-retardant..
6,With light weight, good character, easy to installation and maintenance.
Istallation:
In air
1.As the single core cable laying in parallel,the distance between the cables center is 2 times of the cable diameter,which cross sectional area of conductor<=182mm and 90mm,which cross sectional area of conductor>=240mm
2.Ambient temperature:40ºC
3.Max.Temperature of conductor:90ºC
4.Rating factors of current for ambient temperature.

Air temperature	20ºC	25ºC	30ºC	35ºC	40ºC	45ºC
Rating factor	1.29	1.22	1.15	1.08	1	0.91

Direct in ground
1.When the single core cable are installed separately,the distance between the cable's center is 2 times of the cable diameter.
2.Ambient temperature:25ºC
3.Max. Temperature of conductor:90ºC
4.Soil therm our resistively:1ºC.m/W
5.Depth of laying:0.7m
6.Rating factors of current rating for ambient temperature.

Air temperature	20ºC	25ºC	30ºC	35ºC	40ºC
Rating factor	1.04	1	0.96	0.92	0.87


Norminal cross section size of conductor: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, , 500mm2  630mm2
Cores available: Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores.

Wire Gauge(No. of cores*section-area of each core)(mm2)	wires of each core	thickness of insulation(mm)	thickness of steel tape armour(mm)	thickness of outer sheath(mm)	O.D.(mm)	Weight(kg/km)		resistance of conductor at 20ºC (Ω/km)
						Cu	Al	Cu	Al
4*1.5
4*2.5
4*4	1	1	2*0.2	1.8	18.5	565	464	4.61	7.41
4*6	1	1	2*0.2	1.8	19.7	685	533	3.08	4.61
4*10	7	1	2*0.2	1.8	22.8	960	699	1.83	3.02
4*16	7	1	2*0.2	1.8	25.3	1273	851	1.15	1.91
4*25	7	1.2	2*0.2	1.8	30.5	1998	1374	0.327	1.2
4*35	7	1.2	2*0.2	1.9	33.5	2505	1602	0.524	0.868
4*50	19	1.4	2*0.5	2.0	35.2	3122	1832	0.387	0.641
4*70	19	1.4	2*0.5	2.2	38.7	4025	2220	0.268	0.443
4*95	19	1.6	2*0.5	2.4	44.7	5291	2842	0.193	0.32
4*120	37	1.6	2*0.5	2.5	49.4	6464	3370	0.153	0.253
4*150	37	1.8	2*0.5	2.6	53.7	7866	3998	0.124	0.206
4*185	37	2.0	2*0.5	2.8	58.9	9452	4772	0.991	0.164
4*240	61	2.2	2*0.5	3.0	61	11916	5727	0.0754	0.125
4*300	61	2.4	2*0.5	3.0	67	14118	6558	0.601	0.1
4*400	61	2.4	2*0.5	3.4	73.6	19950	9366	0.047
