| Prod Model: |
BS7629-1 |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Gemt |
Product Description

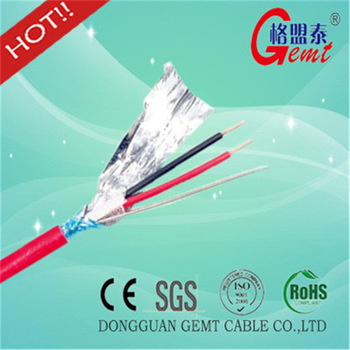

2 x 1.25mm Core (INSULATED) + 1 x 1.25mm Earth (BARE) ,

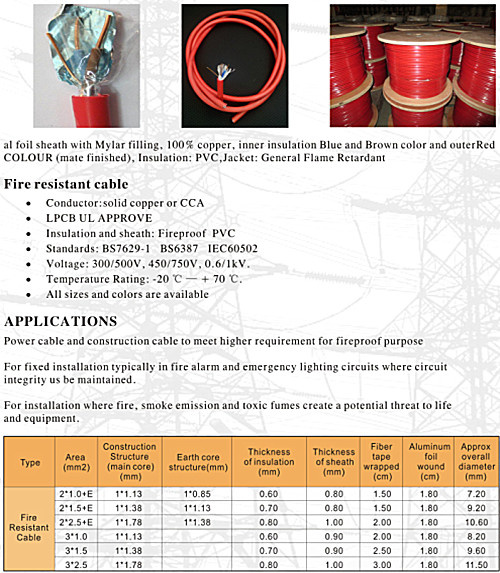

al foil sheath with Mylar filling, 100% copper,
inner insulation Blue and Brown color and outer Red COLOUR (mate finished), Insulation: PVC,
Jacket: General Flame Retradant,
Over all Diameter 8.0 mm
Printing on the Cable: N1017-01 Fireguard. UK FG FRC 180 PH30 2x1.5MM2 LPCB 711c/01//001m(97 mtr/ per roll)
PACKING: WOODEN DRUM, DRUM SIZE(34*17), with polyester film wrap.
Suitable for rated voltage not more than 600V,rated temperature not more than 500 degree celsius
Nominal Voltage:600V
Nominal Temperature:200°c or 450°c
Conductor: Solid copper or cca
Insulation:Fireproof PVC
Jacket: Fiberglass
APPLICATONS:
·Power cable and construction cable to meet higher requirement for fireproof purpose
·For fixed installation typically in fire alarm and emergency lighting circuits where circuit integrity us be maintained.
·For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
Property:Suitable for rated voltage not more than 600V,rated temperature not more than 500°c
Installation condition:Fixed
Fire performance:Not fuse below 800°c with 90 minites
Opposite temperature: 65% can use under bending and fire,no toxic and harmful gases
PVC insulated fire resistant cable can be made according to BS, VDE, ASTM, AS,CSA standards according to customer's request.
PVC insulated Fire resistant cables come in a variety of types and standards. All are comprehensively tested to British Standard to ensure they meet their design criteria.
The FP Cables range of fire resistant cables contains cables for most fire applications from a fire resistant alternative to standard cable for use in metal conduits and trunking, to more specialist cable for fire alarms, fire detection circuits and emergency lighting. A good example of this is FP200 Gold® - a hard skin cable, incorporating damage resistant Insudite insulated cores.
Much of the refinement work on these cables is not only to create further fire resistance but to improve handling and ease of installation. However, on large and complex building projects with demanding fire safety requirements an armour version fire resistant cable may be necessary - such as FP6.
The advantages of our company:
1) Our company is a professional supplier of various kinds of cables for over 20 years.
2) The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.
3) The price is averagely 10%~20% lower than the other competitors.
4) Huge Inventory Allows Us To Ship Your Order Immediately
5) Our employees are all capable and professional. They can offer you the Prompt Courteous Service.
6) We have rich experiences in exporting to overseas.
Package:
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing:carton box, pull box, wooden case
3) Other packing requirement according to client's' request
WELCOME TO CONTACT ME:
Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.
The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.
Our tenet is "Specialized quality, Sincere service",
From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise
Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
