Factory Price: 57mm (NEMA23) 2phase Hybrid Servo Stepper Motor with Suitable Driver

Name: Factory Price: 57mm (NEMA23) 2phase Hybrid Servo Stepper Motor with Suitable Driver
Brand: all-electronics-online.com
SKU: 838341445
Availability: InStock
Rating: 4.8 (84 reviews)

Price:	US $ 60-95/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK57HS41-4204BFED-0.35M
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Operate Mode:	Run
Certification:	Ce, RoHS, SGS
Brand:	Jkongmotor

Product Description

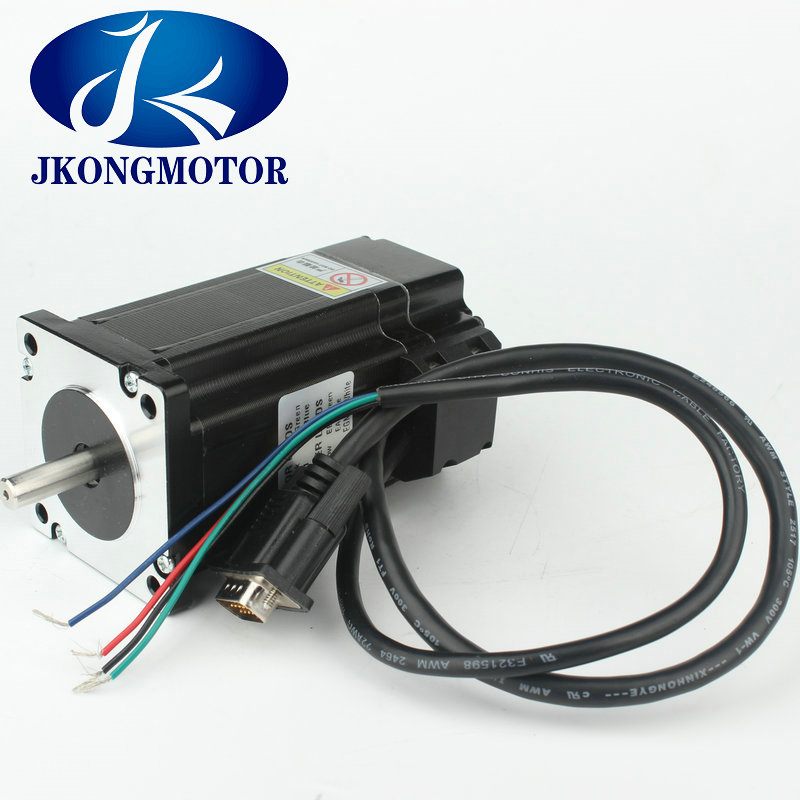

Factory Price:57mm(NEMA23) 2phase hybrid Servo stepper motor with suitable driver

General Specification:

Item	Specifications
Step Angle	1.8°
Temperature Rise	80ºCmax
Ambient Temperature	-20ºC~+50ºC
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	75N (20mm from the flange)
Max. axial force	15N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
JK57HS41-4204BFED-0.35M	1.8	41	4.2	0.3	0.7	0.55	4	250	150	0.65
JK57HS56-4204BFED-0.35M	1.8	56	4.2	0.4	1.2	1.1	4	350	280	0.98
JK57HS76-4204BFED-0.35M	1.8	76	4.2	0.6	1.8	1.8	4	600	440	1.1
JK57HS82-4204BFED-0.35M	1.8	82	4.2	0.7	2.5	2.2	4	1000	600	1.2
JK57HS112-4204BFED-0.35M	1.8	112	4.2	0.9	3.8	3.1	4	1200	800	1.4

Products of special request can be made according to the customer request !

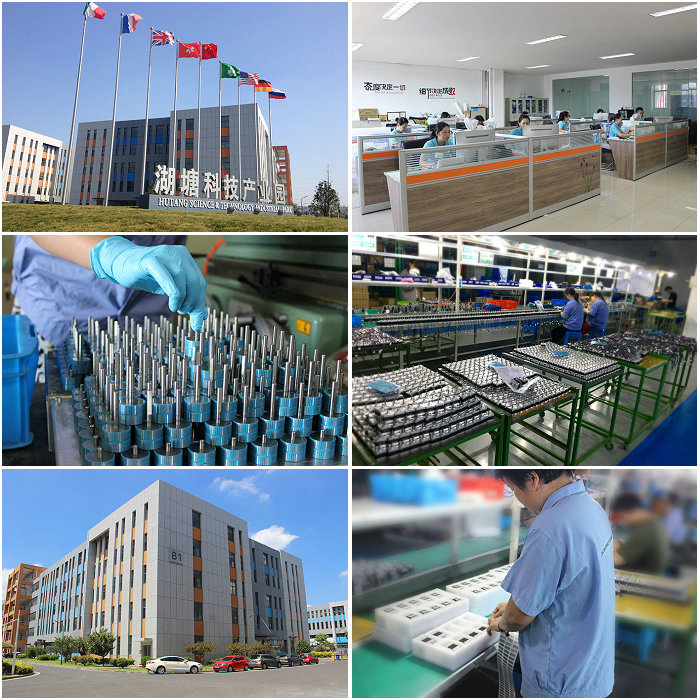

company information:

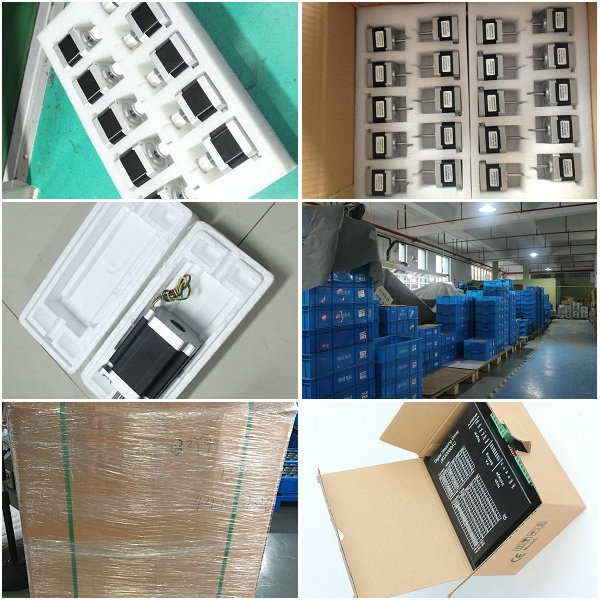

our packing:

our certification:

Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
