Factory Price ACSR Conductor Covered Line Wire Cable
| Price: |
US $ 1.5-2.5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ABC Cable |
| Insulation Color: |
Black, Red, Yellow or as Request |
| Standard: |
IEC, ASTM, DIN, BS, NFC |
| Manufacturer: |
People's Cable Group |
| Rated Voltage: |
0.6/1-36kv |
| Experience: |
26 Years |
| Application: |
Overhead |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Certification: |
CCC |
| Insulation Material: |
PVC/XLPE/PE/HDPE |
| Sheath Material: |
N/a |
| Wire Core Material: |
Aluminum |
| Model: |
ABC Cable |
| Brand: |
Rmjt |
Product Description

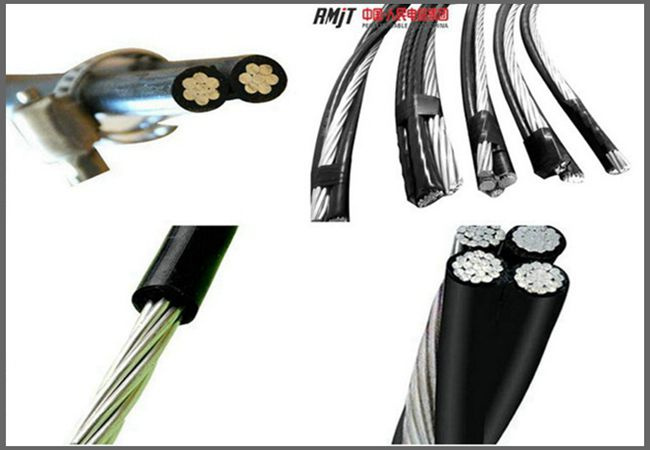

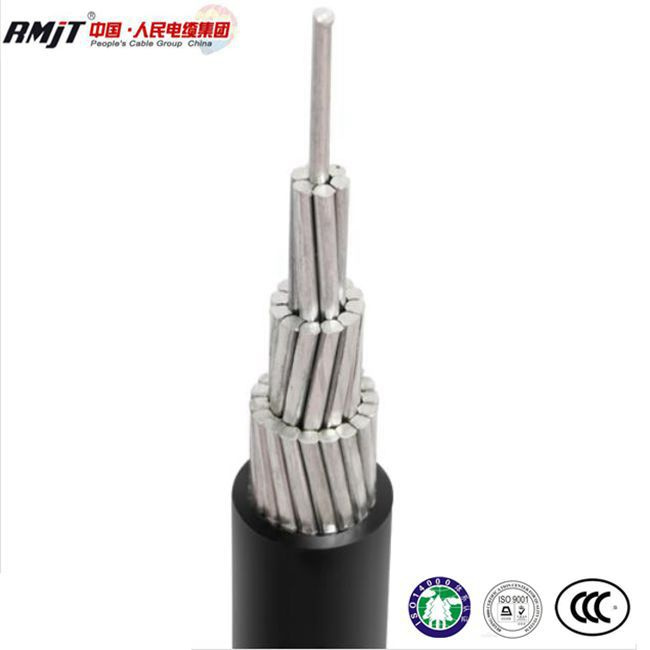

1.ApplicationCovered Line Wire is used primarily for 600V overhead secondary distribution line. It is not an electrically insulated conductor and is treated as bare conductor when installed.2.ConstructionConductors are aluminum alloy 1350-H19, 6201-T81, or ACSR conductors, concentrically stranded and covered for weather proofing with polyeethylene, high density polyethylene(HDPE) or crosslinked polyethylene(XLPE).3.StandardCovered line wire meets or exceeds the following standards:IEC, BS, ASTM, DIN and so on.4.Specification| Code Name | Size | No. of wires | Insulation Thickness | Nominal Diameter | Rated Strength | Nominal Weight | Ampacity |
| Bare | OD | Aluminum | Total |
| | | | | | HDPE | XLPE | |
| | AWG
or Kcmil | | mm | mm | mm | kg | kg/km | kg/km | kg/km | A |
| AAC |
| Plum | 6 | 7 | 0.762 | 4.674 | 6.198 | 255 | 36.61 | 51.27 | 51.27 | 100 |
| Apricot | 4 | 7 | 0.762 | 5.715 | 7.239 | 400 | 58.19 | 76.33 | 76.33 | 135 |
| Quince | 1/0 | 7 | 1.524 | 9.347 | 12.395 | 903 | 147.48 | 206.14 | 206.14 | 240 |
| Haw | 1/0 | 19 | 1.524 | 9.474 | 12.522 | 980 | 147.48 | 206.96 | 206.96 | 240 |
| AAAC |
| Maple | 6 | 7 | 0.762 | 5.029 | 6.553 | 503 | 42.41 | 61.01 | 61.01 | 78 |
| Linden | 2 | 7 | 1.143 | 8.026 | 10.312 | 1270 | 107.44 | 147.33 | 148.82 | 190 |
| Oilnut | 1/0 | 7 | 1.524 | 8.839 | 11.887 | 2023 | 170.99 | 247.03 | 247.03 | 250 |
| Shellbark | 4/0 | 7 | 1.524 | 14.300 | 17.348 | 3883 | 342.57 | 456.86 | 456.86 | 385 |
| ACSR |
| Walnut | 6 | 6/1 | 0.762 | 5.029 | 6.553 | 540 | 36.46 | 71.43 | 71.43 | 105 |
| Hickory | 4 | 7/1 | 0.762 | 6.528 | 8.052 | 1070 | 58.04 | 122.03 | 123.52 | 135 |
| Beech | 2 | 7/1 | 1.143 | 8.357 | 10.643 | 1651 | 92.27 | 199.41 | 202.39 | 180 |
| Pecan | 2/0 | 6/1 | 1.524 | 11.354 | 14.402 | 2404 | 184.98 | 349.72 | 349.72 | 290 |

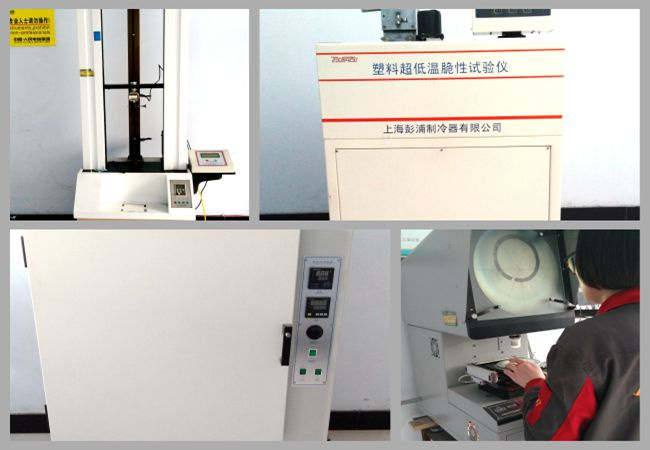

5.Test Progress

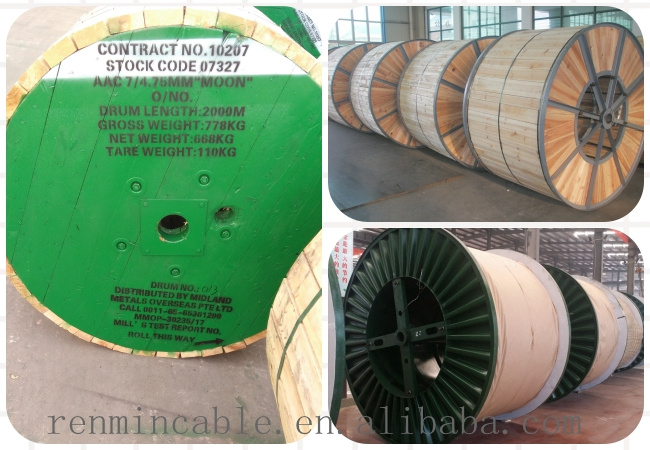

6.PackagePacking in wooden drum, steel-wooden drum or as customer's requirement
7.About UsPeople's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone.
Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
8.CertificationAs top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
9.Customer VisitWe have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
10.FAQQ:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc. 11.Contact InfoFactory Add: No. 13th, Yongding Road, Gongyi, Zhengzhou city, Henan province, China.
Attn:Kathy Wong
Mobile:+86 15981975851
Fax:+86-371-55632837
Websites:www.rmcable.com
www.renmincable.com.cn
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
