Factory Price CCTV CATV 75 Ohm Rg11 Coaxial Cable

Name: Factory Price CCTV CATV 75 Ohm Rg11 Coaxial Cable
Brand: all-electronics-online.com
SKU: 609304074
Availability: InStock
Rating: 4.7 (88 reviews)

Price:	US $ 0.2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SH-RG11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	OFC or CCS
Package:	100m/Roll 200m/Roll 305m/Roll 500m/Rll
Warranty:	3 Years
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	VDE
Type:	Rg11
Model:	Coaxial Cable-Rg11
Brand:	Fulsan

Product Description

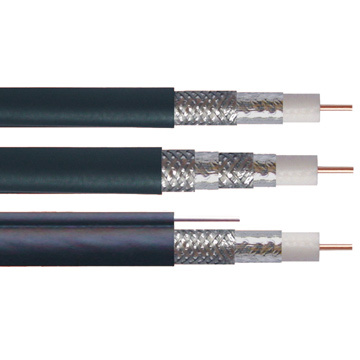

Factory Price CCTV CATV 75 Ohm Rg11 Coaxial Cable

CCTV Coaxial Cable(RG11):

Specifications:
1) 1.63mmCCS +7.11mmFoamed PE + A/P (bonded) + 60% AL Braiding +10.03PVC(or PE)
2) Customers' specifications are welcomed

Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.

Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min

Attenuation: [@68 F. (20 C) ] dB/100meters
5MHz: 1.25dB 400MHz: 8.53dB
55MHz: 3.15dB 450MHz: 9.02dB
83MHz: 3.87dB 500MHz: 9.51dB
187MHz: 5.74dB 550MHz: 9.97dB
211MHz: 6.23dB 600MHz: 10.43dB
250MHz: 6.72dB 750MHz: 11.97dB
300MHz: 7.38dB 865MHz: 13.05dB
350MHz: 7.94dB 1000MHz: 14.27dB

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;

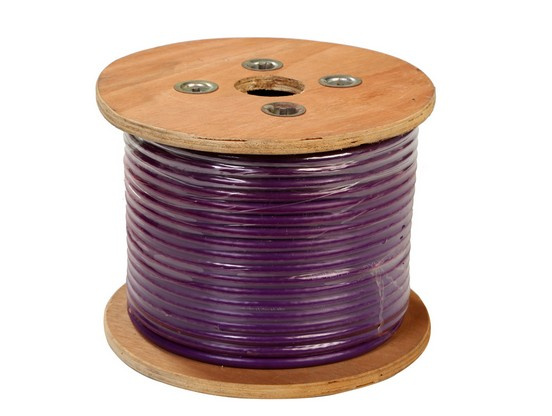

2) Inner packing: Wooden reel, plastic reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Usage: Securitity alarm
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
