Factory Price Current Transformer for Measurement

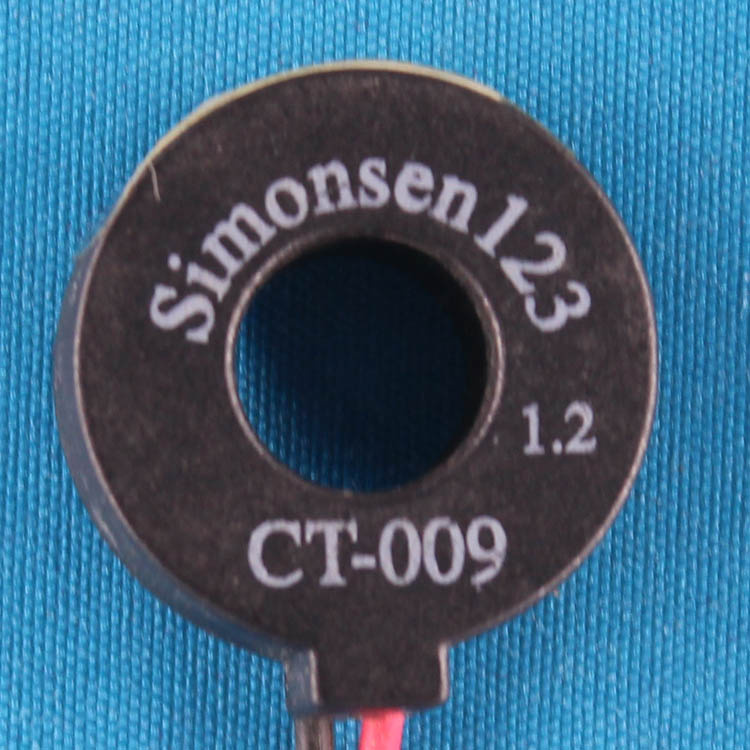

Name: Factory Price Current Transformer for Measurement
Brand: all-electronics-online.com
SKU: 838408285
Availability: InStock
Rating: 5 (97 reviews)

Price:	US $ 0.85-0.9/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CT-009
Structure:	Magnetic Bead
Type:	Current Transformer
Nature Of Operation:	Measure
Brand:	Simonsen123

Product Description

1. Product Type: Current Transformer
1.1 Model NO:simonsen123   CT-009
  1.2 Installation: lead type derivation, output headband XH2.54 or 3.96 terminal, the length of output line adjusted.
2. Feature
2.1 Application: electronic energy meter, instrument, current sensor, PDU, switch power, induction cooker.
  2.2 Phase: single or zero phase
  2.3 Usage: measurement
  2.4 Insulating medium: epoxy resin
2.5 Certification: RoHS, ISO 9001:2008

5. Security Parameters :
5.1 Isolation Voltage: Primary Winding and Secondary Winding:3KV/2mA/60Sec;
5.2 Insulation Conductor:≥500MΩ /500V DC;
5.3 Inflaming Retarding: up to the standard of UL94-V0; environmental protection meets the muster of ROHS and pass the test of SGS ROHS;
5.4 Operating Temperature: -40ºC~+85ºC  Humidity ≤95%;
5.5 Frequency Range: 1KHZ~70KHZ

Established in 2004, Shenzhen Simonsen123 Electronic Co., Ltd is engaged in research & development, manufacture and sales for current transformer, voltage transformer, multi-coil inductance, leakage protector and balun inductor.

The company has the factory of over 5000 square meters and more than 200 staff, in which possesses 2 injection molding machines, 200 full-automatic annular coil winding machines, over 20 LCR testers, 20 inductance comprehensive tester, 10 transformer specified tester and a batch of import tester, such as automatic dispenser, full-automatic laser printer and etc. While, the injection molding machine provides strong guarantee for developing new products. Our monthly production achieves 200, 000 current transformers and 6, 000, 000 inductances. The company and the factory have passed ISO 9001 on August, 2013 and all of our products meet the standard of RoHS.
