Factory Price Low Backlash 56mm Small DC Motor Geared
| Price: |
US $ 5-12.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
PG56ZY58 Gear motor |
| Product Name: |
Pg22180 Series |
| Motor Type: |
Carbon-Brush Commutator |
| Gear Type: |
Straight Gearwheel, Planet Construction |
| Housing Material: |
Steel |
| Geartrain Material: |
Steel and Powdered Metal, POM Optional |
| Bearing At Output Shaft: |
Sleeve Bearing |
| Lubricant: |
Grease for High-Low Temperature, -62---+204 Degree |
| Backlash At No-Load: |
<1°, Min0.3° |
| OEM & ODM Service: |
Available |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Structure And Working Principle: |
Brush |
| Brand: |
Custom |
| Certification: |
Ce/RoHS |
Product Description
factory price low backlash 56mm small DC motor gearedProduct Category
China manufacturer gear motor price With Professional Technical Support
We always provide customers with distinctive products:cost-effective, lower
noise, higher efficiency and stability, longer life and higher strength.| Basic information |
| Product name | PG56ZY58 series,56mm diameter planet gear motor |
| Motor type | carbon-brush commutator |
| Gear type | Straight gearwheel,planet construction |
| Housing material | Steel |
| Geartrain material | Steel and Powdered Metal,POM optional |
| Bearing at output shaft | Sleeve bearing |
| Lubricant | Grease for high-low temperature, -62---+204 degree |
| Backlash at no-load | <1°,MIN0.3° |
| OEM & ODM Service | Available |
| Certificate | CE,ROHS,ISO/TS16949 |

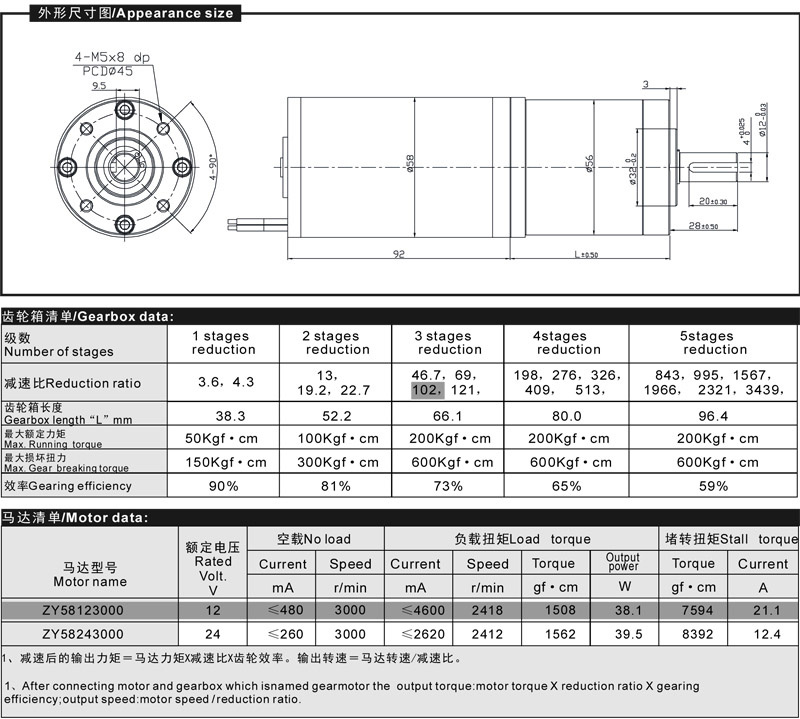

| An exact model of gearbox and motor combination |
| Product seires | PG56ZY58 Series |
| An exact Model NO. | PG56ZY58 06 10000-90K |
| Motor Voltage(VDC) | 6 |
| Motor no load speed(rpm) | 10000 |
| Gearbox reduction ratio | 90K |
| Gearmotor no load current(A) | <0.299 |
| Gearmotor no load speed(rpm) | 128 |
| Gearmotor rated load torque(kgf.cm) | 2.5 |
| Gearmotor rated current(A) | <1.327 |
| Gearmotor rated load speed(rpm) | 100+/-10% |
| Noise (DB) | <55DB |
| Lifetime | 1000+ hours (varies by application) |
| Rotation | CW/CCW reversible |
Packing&Shiping
Company Information
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: Can you make a motor with custom specifications?
A: Yes, actually that is what we do most of the time.
Q: What is the MOQ (minimum order quantity)?
A: 1 pc for sample order, and 100pcs for bulk order.
Q: Do you have motors in stock?
A: No, we don't. All motors are made with orders.
Q: How to pay you?
Paypal, Western Union, Money Gram, T/T, L/C payment are acceptable.
Q: What do you need to know if I need a recommendation on motor?
A: Normally we need to know dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e.
a motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
Q: Can I ask you for help if I know nothing about motor?
A: Yes, our pleasure. We are nice people with big hearts.
Q: Can we type our brand on it?
A: Yes of course.
Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.
Q: What is your production capacity?
A: About 4000 PCS per day.
Q: Can I visit your factory?A: Yes,of course
CONTACT USNingbo Twirl Motor Co.,Ltd.
Add:NO.1269 Mingshu Road,Jiangshan Town,Yinzhou District,Ningbo,Zhejiang,China
Tel: 86-574-83011098 ext8015 Fax:86-574-83011156
Mob:0086 137 3882 3255

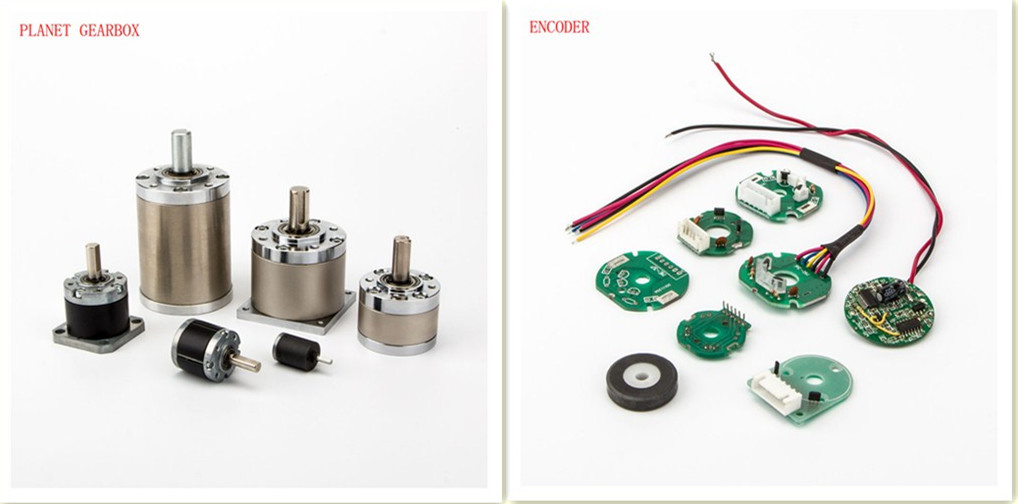

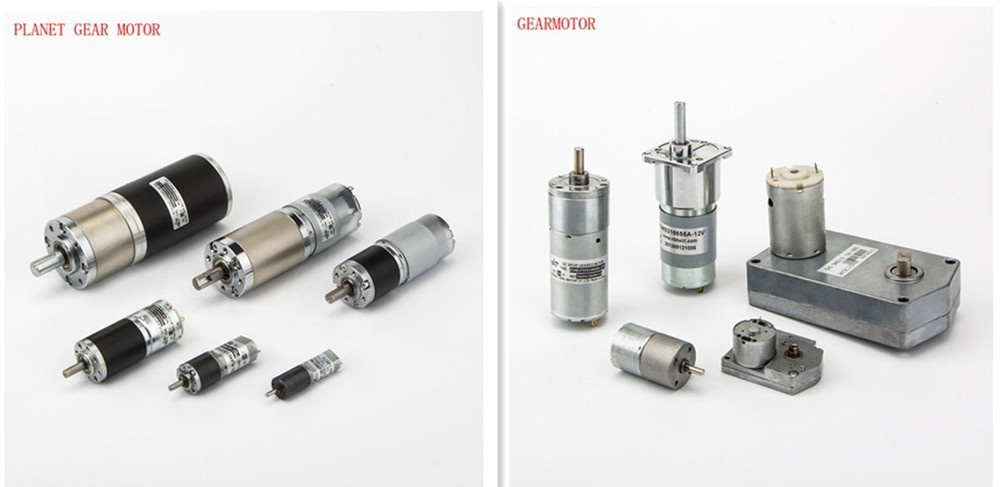

Main products: planetary gearbox,gear motor,dc motor,encoder
ISO/TS16949:2009 ,CE,ROHS
Ningbo Twirl Motor Co., Ltd. Is a modern enterprise integrated research & development, manufacture, sales and specializes in gear motors. At present, we mainly produce diameter 16mm~ 60mm Mini Planetary geared motors which are up to Chinese CCC standard, RoHS standard and CE standard with low noise, long life and full specifications.
Twirl Motor throughout takes " Make the best gear motor of China" As the goal and persists in the principle of " Innovation, Scientific management, Honesty business". Our company takes advantage of the wisdom from all the staff to promote growth. There are some engineers with rich experience in research and design, who are good at using professional software of Solidworks, Photoview and PRO/E to develop the new products. Meanwhile, Twirl Motor owns various sets of professional equipment for production, including High-quality knurling machines, CNC lathes, Press-casting machines, CNC machining centers, Engraving Machines and Electrical pulses.
Our main inspection equipment is Automatic dynamometers and OVH. We do strict inspection and strength test with each series of products so as to keep their best state in strength and noise.
Tenet: Innovation, Pragmaticism
Management Concepts: People foremost, Scientific management, Teamwork
Design Philosophy: Scientific. Succinct. Practical. Aesthetic
Service philosophy: Create value for customer
Quality Philosophy: Only make the competitive products
We are based on the goal of " Innovation and pragmatism" And insist on high-quality products, excellent service to met customers' needs. We sincerely welcome customers from at home and abroad to visit us and negotiate the business, and hope that we can woke together to create a great future.
