Factory Price Metal Tube Processing Fiber Laser Cutter for Pipe
| Price: |
US $ 3000-150000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GS-LFTP3015 |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Certification: |
Ce, ISO 9001:2000 |
| Automation: |
Semi-Automatic |
| Condition: |
New |
| Type: |
Laser Cutting Machine |
| Type For Fold-Bending Machine: |
Laser Cutting Machine |
| Type For Pipe And Tube Bending Machine: |
Laser Cutting Machine |
| Power Source: |
Fiber Laser |
Product Description
Factory Price Metal Tube Processing Fiber Laser Cutter For PipeFIBER LASER CUTTING MACHINE - Open Type with Tube Cutting
1.Customized Products for Different Requirements
2.Specialist for Pipe and Metal Cutting, More Efficiency
3.Optimized Configuration, Powerful Cutting Capability
4.Gantry structure, dual-drive system, perfect dynamic performance, high speed, high precision, high cost-effective.
CNC Metal Tube/Plate Fiber Laser Cutting Machine Parts Introduction: 1.Machine Bed Gantry design with double rack and guide, double drive with servo motor; Integral cast aluminum crossbeam of high performance.
2.Welding type machine frame with manual aging treatment; the machine bed is precision processed by gantry type milling machine to ensure the resistance to shock, rigidity and stability.
3.The crossbeam made of high intensity aluminum has the feature of light weight, high rigidity and good accelerating ability; precise process by gantry type milling machine after aging treatment to ensure the movement precision.
4.The aging treatment during the welding to remove welding stress in order to prevent the structure deformation.
5.HIWIN square linear guide from Taiwan with high position precision, less wear; high precision for long service time, easy installation and replacement. CNC Metal Tube/Plate Fiber Laser Cutting Machine Technical Parameters | Model | GS-LFTP3015 |
| Output power of laser source | 500W/1000W |
| Cutting area (L*W) | 3000mm × 1500mm |
| Max tube diameter | 300mm |
| Max tube processing length | 6m |
| Max tube cutting thickness | 5mm |
| X axle stroke | 3048 mm |
| Y axle stroke | 2300 mm |
| Z axle stroke | 100 mm |
| Cooling | water cooling |
| Max accelerated speed of X, Y axles | 1G |
| Kerf Width | 0.1~0.3 mm |
| Positioning accuracy of X, Y and Z axles | ±0.05 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Processing precision of work piece | ±0.1 mm |
| Kerf harshness | Ra 3.2-12.5 μm |
| Voltage | 380V,50/60Hz |
| Continuous working time | 24 Hours |
| Max bearing weight of working platform | 600Kgs |
| Total installed capacity | 20-25 KVA |
| Total protection level of power supply | IP54 |
CNC Metal Tube/Plate Fiber Laser Cutting Machine Main Companents Dispaly:1.Machine Bed:
2.RayTools Laser Cutting Head
| Laser head brand | RayTools |
| Max optical diameter | 28mm |
| Focal length of the collimating | 100mm |
| Focus distance | 125mm |
| Vertical adjustment range | -5mm/+10mm |
| Horizontal adjustment range | ±2.0mm |
| Weight | 2.5Kg |
| Max cutting pressure | 30bar |
| Stability of laser power | ±1% |

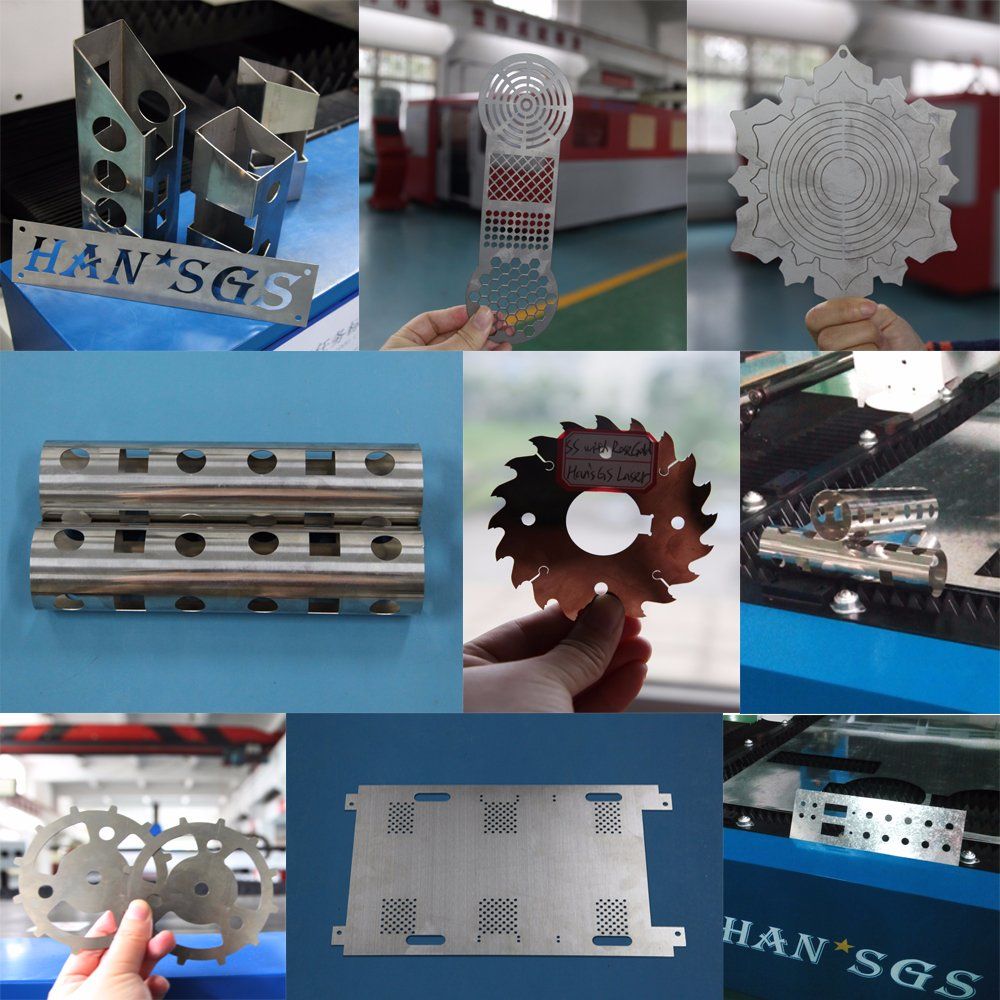

Cutting Samples:
Application industry:
Metal processing, sheet metal industry, automobile industry, military industry, aerospace, pressure vessel manufacturing, metallurgy, steel rolling, oil pipe, machinery manufacturing, household appliances industry, advertising industry, lighting industry, etc.Han's GS company introductionWuhan Hans Goldensky laser system Co.,Ltd. is subsidiary company of Han's Laser Technology Industry Group Co.,Ltd. (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and provide laser cutting, laser welding, laser cladding/quenching, and high-speed laser perforating equipment and solutions.- Top supplier of high power laser generator and laser complete system in China
- Holding subsidiary of Hans Laser in Shenzhen
- High tech enterprise of Optic Valley under government support, with 20000 Industry Park
- Registered capital 80 million, 125 employees
- Total sales amount of 98 million in 2012, profit of 16 million
- Accumulated assets 150 million, asset-liability ratio 30%, 50% increasing speed in the last three years
Please let us know following informations:
1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
