Factory Price NEMA23 Stepper Motor Electrical Motor

Name: Factory Price NEMA23 Stepper Motor Electrical Motor
Brand: all-electronics-online.com
SKU: 826098045
Availability: InStock
Rating: 4.5 (66 reviews)

Price:	US $ 5-19/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Step Angel:	1.8degree
Shape:	Square
Colour:	Black
High Torque:	1.35 N,M
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	Three Phase Double Beat
Type:	Electromechanical
Number Of Poles:	Other
Certification:	RoHS
Brand:	Other

Product Description

1.8° 57mm 2phase Square hybrid stepper motor NEMA23/ 24v stepper motor/ 1.9N.M step motor /2.8N.m high torque nema23 hybrid stepping motor/ 1.2N.m stepping motor with CE certification

Descriptions:

NEMA23 stepping motor , 57mm square stepper motor .
1.5N.m Stepper motor , high torque stepper motor with 57mm size .
1.8N.m stepping motor .

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,
advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.

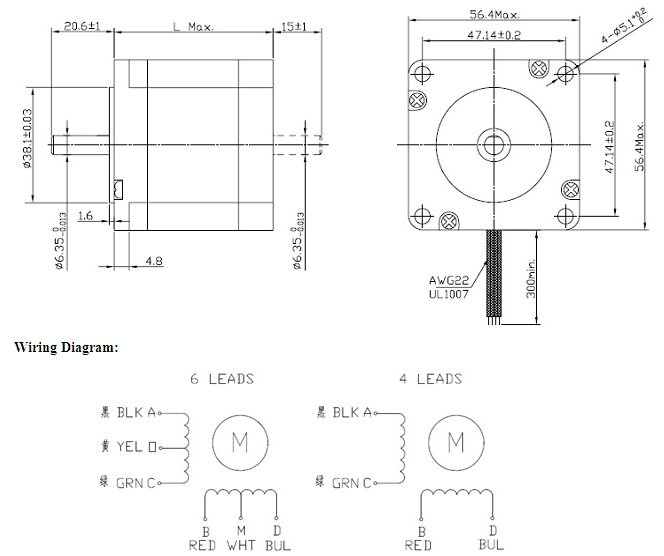

Dimensions:
(Unit=mm)

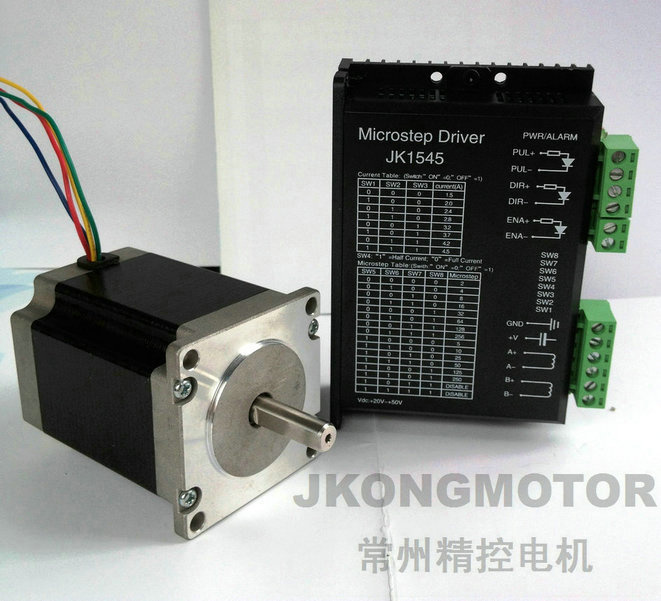

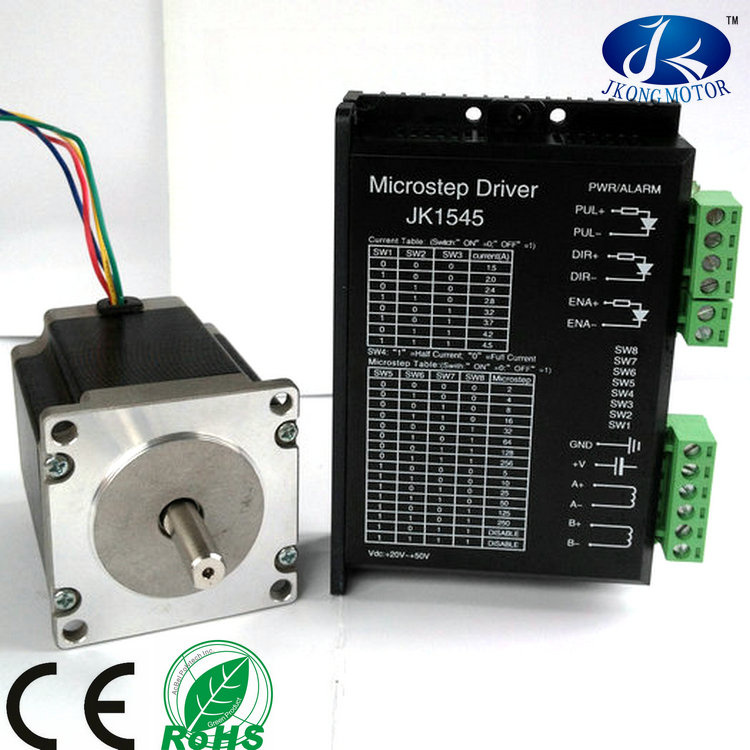

Matching Stepper motor Driver: JK1545, JK0230

About Our Factory and other Products:

WHY YOU CHOOSE US:

We are a professional manufacturer for Stepper motor , Stepper driver, BLDC motor and DC motor. we can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co.,Ltd

Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.

High quality
Competitive price
Good Packing
Fast Delivery
Knight service
Advanced technology

Believe that we will do our best!

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
JK57HS41-1006	1.8	41	1	5.2	5.5	0.39	6	250	150	0.47
JK57HS41-2006	1.8	41	2	1.4	1.4	0.39	6	250	150	0.47
JK57HS41-3006	1.8	41	3	0.63	0.6	0.39	6	250	150	0.47
JK57HS41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150	0.47
JK57HS51-1006	1.8	51	1	6.6	8.2	0.72	6	300	230	0.59
JK57HS51-2006	1.8	51	2	1.65	2.2	0.72	6	300	230	0.59
JK57HS51-3006	1.8	51	3	0.74	0.9	0.72	6	300	230	0.59
JK57HS51-2804	1.8	51	2.8	0.83	2.2	1.01	4	350	280	0.68
JK57HS56-1006	1.8	56	1	7.4	10	0.9	6	350	280	0.68
JK57HS56-2006	1.8	56	2	1.8	2.5	0.9	6	350	280	0.68
JK57HS56-3006	1.8	56	3	0.75	1.1	0.9	6	350	280	0.68
JK57HS56-2804	1.8	56	2.8	0.9	2.5	1.26	4	350	280	0.68
JK57HS76-1006	1.8	76	1	8.6	14	1.35	6	600	440	1.1
JK57HS76-2006	1.8	76	2	2.25	3.6	1.35	6	600	440	1.1
JK57HS76-3006	1.8	76	3	1	1.6	1.35	6	600	440	1.1
JK57HS76-2804	1.8	76	2.8	1.13	3.6	1.89	4	600	440	1.1
JK57HS82-3004	1.8	82	3.0	1.2	4	2.2	4	1000	600	1.2
JK57HS82-5004	1.8	82	5	0.6	1.5	2.2	4	1000	600	1.2
JK57HS112-3004	1.8	112	3.0	1.6	6.8	2.8	4	1200	800	1.4
JK57HS112-4204	1.8	112	4.2	0.9	3.8	2.8	4	1200	800	1.4

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
