Factory Price PIR Sensor Module for Automatic Product (HW-M8002)

Name: Factory Price PIR Sensor Module for Automatic Product (HW-M8002)
Brand: all-electronics-online.com
SKU: 787355575
Availability: InStock
Rating: 4.6 (69 reviews)

Price:	US $ 2-3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HW-M8002
Operation Voltage:	4-12V
PIR Input Gain:	68dB
Size:	25*35mm
Transmitting Power:	10.525GHz
Input Voltage:	6-24V
Output Voltage:	5V / 0V
Operating Current:	<5mA
Sensing Distance:	10m
Delay Time:	30s(Adjustable)
Working Temperature:	-30 to 75 ºC

Product Description

Factory price PIR Sensor Module for Automatic product(HW-M8002)

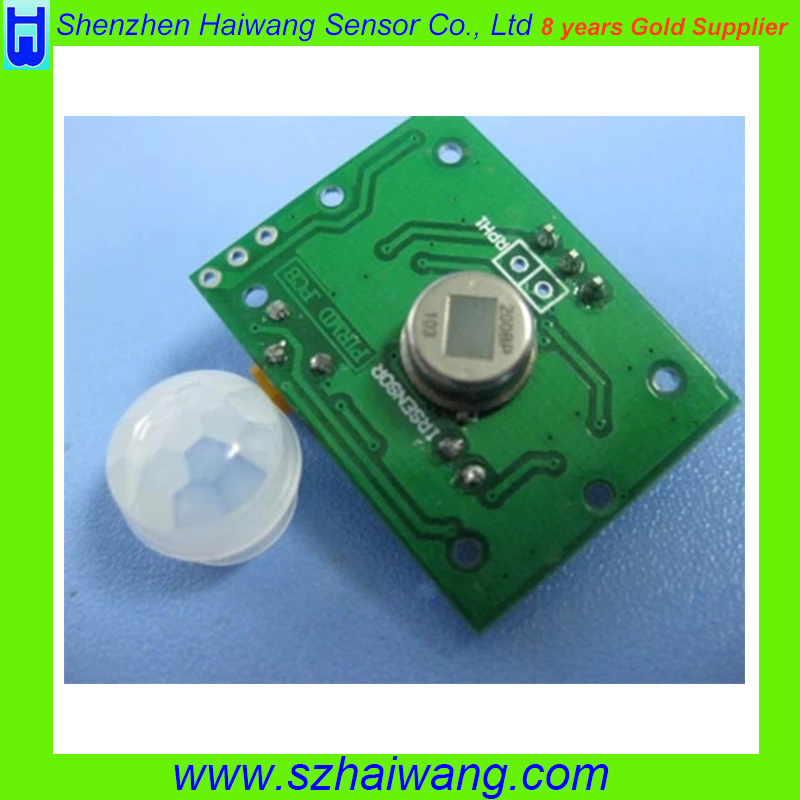

HW8002 is a pyroelectric sensor module which developed
for human body detection. A PIR detector combined with a
fresnel lens are mounted on a compact size PCB together
with an analog IC, HW8002 and limited components to
form the module. High level output of variable width is
provided.) .
2: Specification

Model	HW-8002
operating voltage	DC 4V~12V;
Static Power	<50 μA ;
Distance	0.5-27m
range	10-140
Operation Temperature	-20-+70
Dimension	72432mm	Not including lens

Product Type	PIR control module HW8002
Operating Voltage Range	DC Voltage 3V ~ 12V
Quiescent Current	<50uA
Level output	High 3.3 V / Low 0V (Can be customized)
Delay time	0.5-200S ( adjustable ) range can be made few tenths - tens of minutes (Can be customized)
Blocking time	2.5S ( default ) range can be few tenths - tens (Can be customized)
Induction angle	10-140 degree
Operating Temperature	-20 - +70 degrees
Distance	0.5-27m (Can be customized)
