| Prod Model: |
F21-6S |
| Temperature Range: |
-35ºC-----------+80ºC |
| Model No: |
F21-6s |
| Packing Size: |
33*21*17cm(Including Inner Carton) |
| Certificates: |
Ce, FCC, ISO9001:2008 |
| Application: |
Lifting Equipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
3V |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
Product Description
Product Description

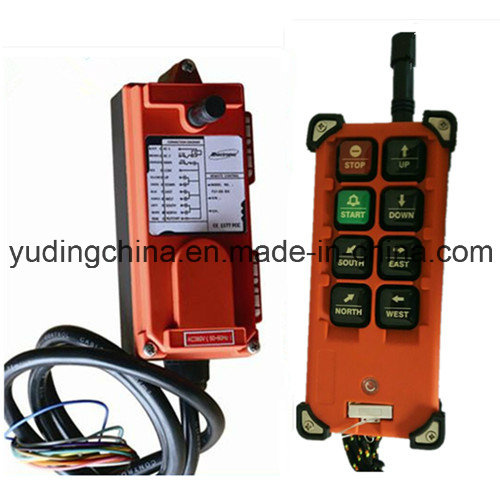

Telecrane remote control (F21-6S)
Applications of Winch Wireless Remote Control :
single hook electric cable hoist,monorails, single speed electric hoist or electric single speed hoist crane,and used for the industrial remote control which are under 6 connection
Features of Wireless Crane Remote Control :
· Control points up to 6.
· With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
· Set the internal functions by computer Interface.
· with the Rotate key switch to guarantee the safety.
· UP/DOWN,EAST/WEST,SOUTH/NORTH push buttons can be set ordinary,jump strokes,mutural inhibition or not.
· START button can be set start,inching,jump strokes,ordinary etc.
Technical Specifications:
| Model no | F21-6S |
| Transmission Distance | Up to 100m |
| Material | Reinforled plastic and glass fiber |
| Product Name | industrial wireless radio remote controls |
| Application: | industrial machinery,material handling equipment ,lifting equipment |
| Certificates: | CE, FCC, ISO9001:2008 |
| Channel Spacing | 0.2675MHz |
| Working Temperature | -35ºC---------+80ºC |
| Interface | Cable Output |
| Transmitter Power Supply | two 1.5v Batteries(AA size) ( up to 3 months usage) |
| Receiver Power Supply | AC380V/220V/110V/48V/36V/24V/12V OR DC12V |
| Numbers of Buttons | 6 Single Speed buttons,1 START button,1 MUSHROOM button |
| Protection Degree | IP65 |
Products Features:
*Four Dual speed push button and one EMGS button +one STOP button+one START button+ one SWITCH
*control point up to 6
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*four push button can be set mutual inhibition or not .
*Up ,Down ,East ,West can be set start ,close,speed up,jump strokes,ordinary etc.
Standard Configuration:
1. One transmitter;
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual.
